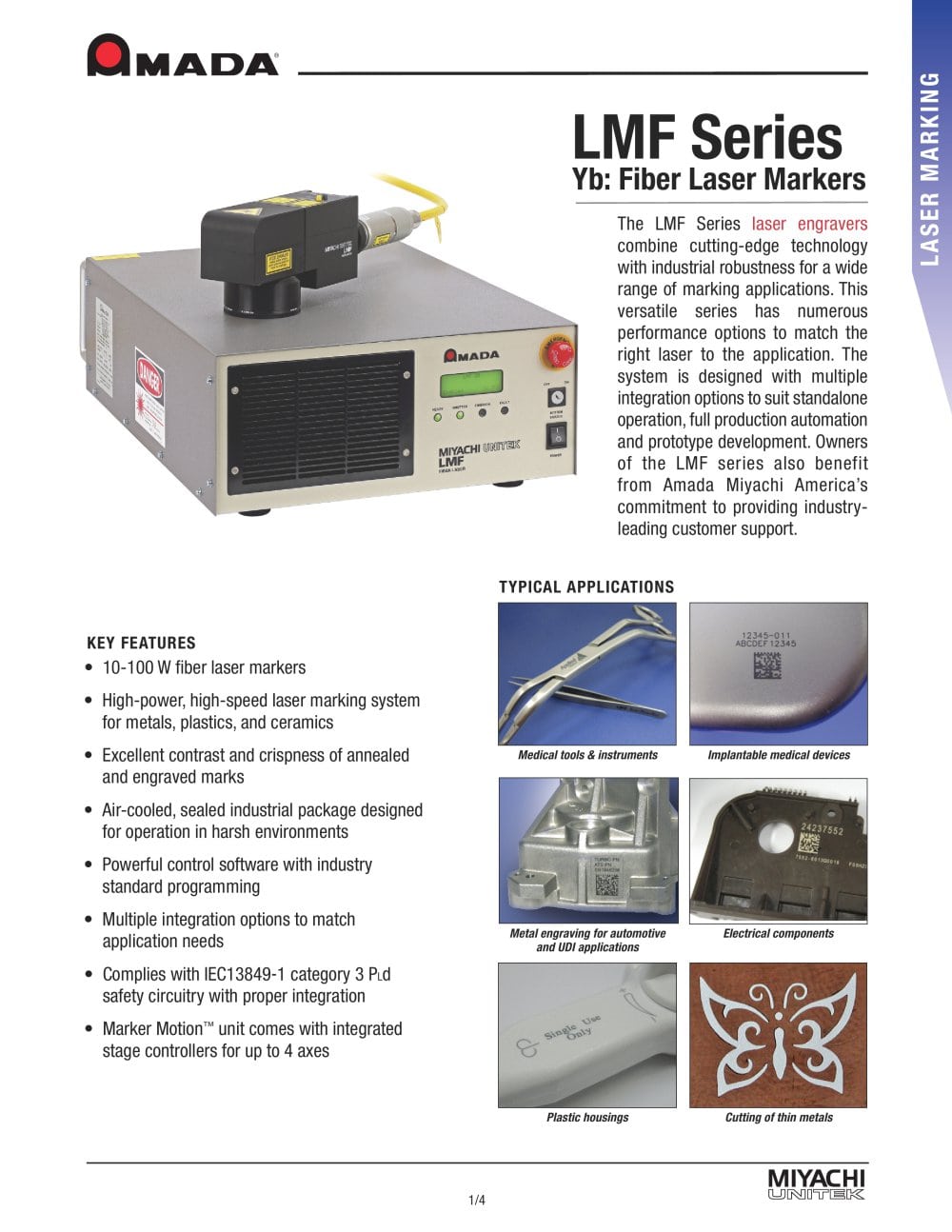

Implantable devices Automotive direct part mark Electrical components Medical tools & instruments Plastic housings Plastic components • High speed, high contrast marks on metals and plastics • Compact, air-cooled, robust design • PC, touchscreen, stand alone or pendant operation • Rotary and XYZ motion options • Marking software options laser marking LMF1000 & 2000 Yb: Fiber Laser Marker TYPICAL APPLICATIONS • High speed contrasting marks on plastics – A Q-switch frequency range of 2 - 500kHz maximizes mark speed and contrast • Anneal and engrave metals – High beam quality and high peak power maximize speed and depth • Compact, robust design – Small footprint and 19” rack power supply allow easy integration • Flexible operation – Tailor operation for specific needs: PC, touchscreen, stand alone or pendant • Marking software options – Standard Windows®-based software with options for other full featured control programs • Rotary and XYZ integrated motion – Circumferential marking, step and repeat in rotary or XYZ • Network/Server Connectivity – Network single or multiple workstations via LAN
