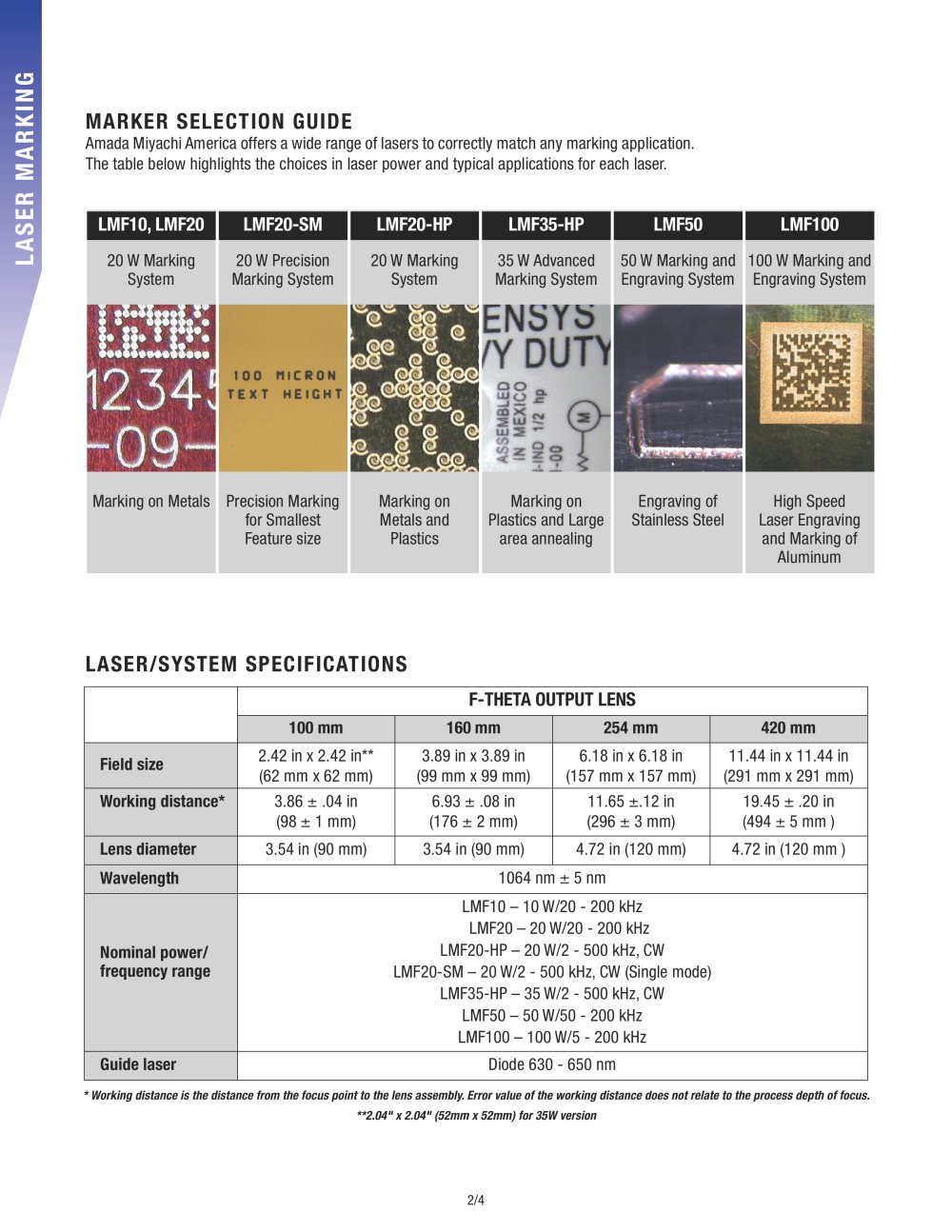

Your Local Representative Corporate Office: 1820 S. Myrtle Ave. • P.O. Box 5033 • Monrovia, CA 91017-7133 USA Tel: (626) 303-5676 • FAX: (626) 358-8048 • info@muc.miyachi.com www.muc.miyachi.com • ISO 9001 Certified Company 24/7 Repair Service: 1-866-751-7378 ASIA Sales Office: Unit D, 20/F, Infotech Centre 21 Hung To Road Kwun Tong, Hong Kong Tel: +852 2833-6998 FAX: +852 2833-6672 asiapacific@muc.miyachi.com EUROPE Sales Office Miyachi Europe BV.: Schootense Dreef 21 NL-5708 HZ Helmond The Netherlands Tel: +31492-54-22-25 FAX: +31492-53-62-22 info@mue.miyachi.com MEXICO Sales Office: Pedro Rosales de Leon 7946-200 Fraccionamiento Las Misiones Ciudad, Juarez, Chihuahua Mexico Tel: +52.656.623.2719 FAX: +52.656.617.6058 mxsales@muc.miyachi.com SOUTH AMERICA Sales Office: Tel: +55 (11) 3712-2389 Fax: +55 (11) 3712-2389 sasales@muc.miyachi.com Specifications subject to change without notice. Copyright© 2007 Miyachi Unitek Corporation. The material contained herein cannot be reproduced or used in any other way without the express written permission of Miyachi Unitek Corporation. All rights reserved. LMF1000 & 2000 SPECIFICATIONS PHYSICAL CHARACTERISTICS 991-077 07/08 Power Supply Laser Head Footprint: Inches (mm) W x D x H 17 x 22 x 7 (431 x 559 x 179) 4.5 x 22.7 x 5.6 (114 x 577 x 142) Weight: Lbs. (Kg) 49 (22.3) 17 (7.7) F-O Output Lens 100mm 160mm 163mm 254mm 420mm Field Size: Inches (mm) 2.42 x 2.42 3.94 x 3.94 4.52 x 4.52 5.91 x 5.91 11.77 x 11.77 (62 x 62) (100 x 100) (115x115) (150 x 150) (299 x 299) Working Distance: Inches (mm) * 3.9 ± .04 6.89 ± .08 7.28 ± .08 11.77 ± .12 19.45 ± .20 (110 ± 1) (175 ± 2) (185 ± 2) (299 ± 3) (494 ± 5) Mounting distance: Inches (mm)** 4.72 ± .04 6.89 ± .08 7.08 ± .08 12.90 ± .12 20.75 ± .20 (120 ± 1) (175 ± 2) (180 ± 2) (327 ± 3) (527 ± 5) Lens Diameter: Inches (mm) 3.54" (90) 3.54" (90) 4.3" (109) 4.72" (120) 4.72" (120) Wavelength 1064nm ± 5nm Power / Q-switch: 10W(LMF1000) or 20W(LMF2000) / kHz pulse frequency CW 2-500 Pump Source: Laser diode AC Power Requirements: Single phase, 90-130 VAC/180-260 VAC, 50/60 Hz, 10A Environment: Ambient Temperature 40-95°F (5 - 35°C) Relative Humidity Less than 90% RH (Non-condensing) Minimum Character Height: 0.005" (125 micron) Guide Laser Yes (630-650nm) *Working distance is the distance from the focus point of the lens to the lens assembly **Mounting distance is the distance from the focus point of the lens to the mounting brackets
