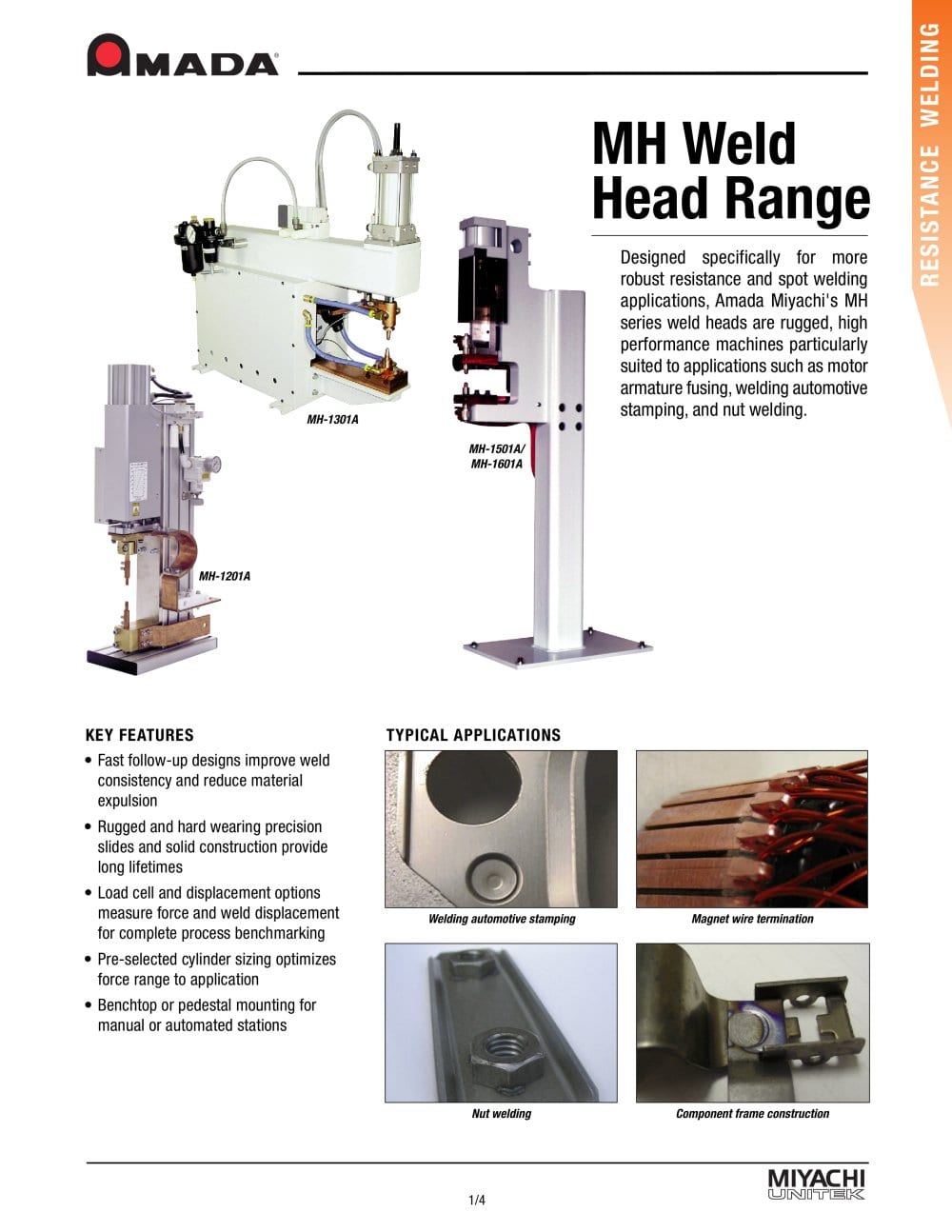

MH-1201A MH-1301A MH-1501A/ MH-1601A resistance welding MH Weld Head Range Fast follow-up designs Improve weld consistency and reduce material expulsion Rugged and hard wearing Precision slides and solid construction provide long lifetimes Load cell and displacement options Measure force and weld displacement for complete process benchmarking Force range optimization Pre-selected cylinder sizing to optimize force range to application Benchtop or Pedestal Flexible mounting for manual or automated stations • Fast follow-up designs • Precision bearings for long lifetime • Load cell and displacement options • 70-1600 lb. force range • Benchtop and pedestal options Nut welding Component frame construction Welding automotive stamping Terminal connections Magnet wire termination TYPICAL APPLICATIONS
