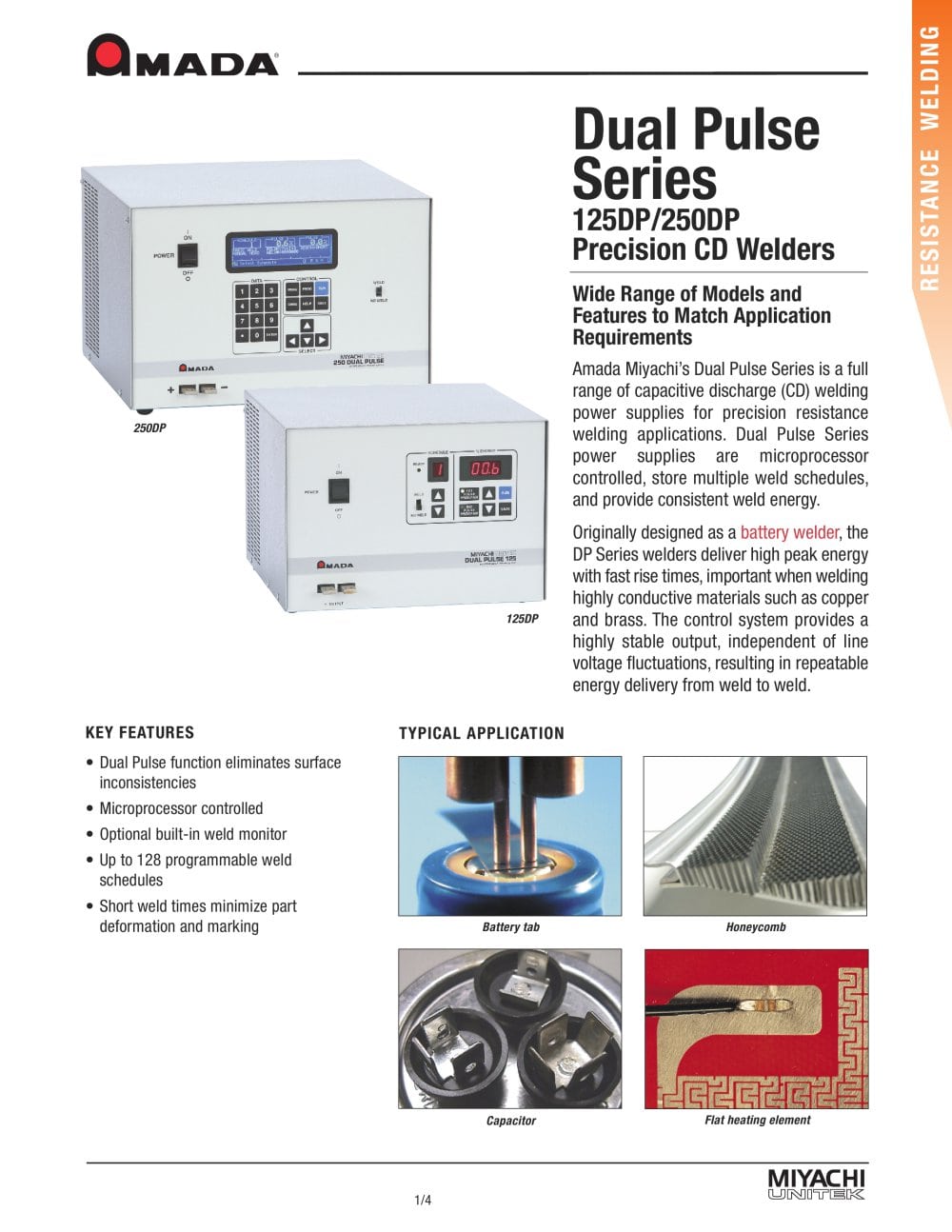

•Dual Pulse function eliminates surface inconsistencies •Microprocessor controlled •Optional built-in weld monitor •Up to 128 programmable weld schedules resistance welding Dual Pulse Series 125DP/250DP Precision CD Welders Battery Tab – Nickel tab to nickel plated steel 250DP 125DP Wide Range of Models and Features to Match Application Requirements Miyachi Unitek’s Dual Pulse Series is a full range of capacitive discharge (CD) power supplies for precision resistance welding applications. Dual Pulse Series power supplies are microprocessor controlled, store multiple weld schedules, and provide consistent weld energy. The CD welders deliver high peak energy with fast rise times. This is important when welding highly conductive materials such as copper and brass. The control system provides a highly stable output, independent of line voltage fluctuations, resulting in repeatable energy delivery from weld to weld. The DP Series short weld times result in minimal part deformation and marking. Context sensitive “User Help Screens” (not featured on 125DP model) easily guide the user through the operating program. Most models are available with an optional builtin weld monitor, “Weld Sentry®.” The Weld Sentry provides weld current, voltage, power, and resistance values along with SPC data. Miyachi Unitek offers a wide range of weld heads to interface with the Dual Pulse Series,creating a system solution for micro-joining applications. TYPICAL APPLICATION
