High Reliability Microjoining
The HF Series High Frequency Weld Controls address the challenges of microjoining
for a wide range of applications. Precise control of weld energy with high
speed closed loop feedback and weld quality tools ensure high yields for the
most demanding welding applications.
The weld control is also geared for automation with exceptional repetition rates,
standard I/O connections and remote program capability.
CONTROL FEATURES:
• Constant current, voltage, and power modes
• Monitors energy and resistance
• 2400A maximum
• 25kHz feedback
WELD QUALITY PROCESS TOOLS:
• Active Part Conditioning (APC)
• Pre-Weld Check
• Weld to Limits
HF27 ADVANCED FEATURES:
• Displacement and force monitoring
• Force control
• Envelope function
• Combo mode
• Energy and time limits
resistance welding

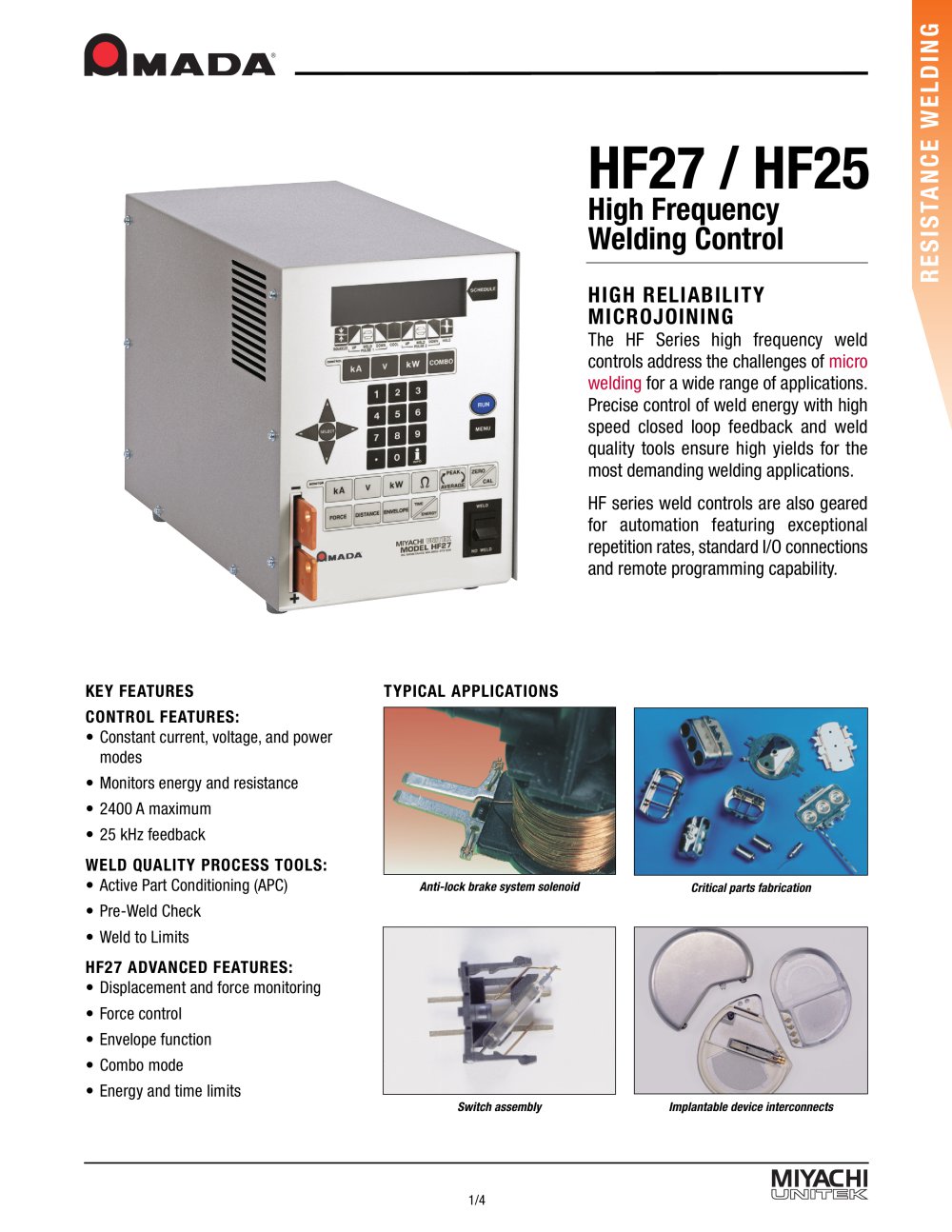

HF27 / HF25
High Frequency Welding Control
Lamp assembly
TYPICAL APPLICATIONS
Anti-lock brake system solenoid
Critical parts fabrication Implantable device interconnects Switch assembly
