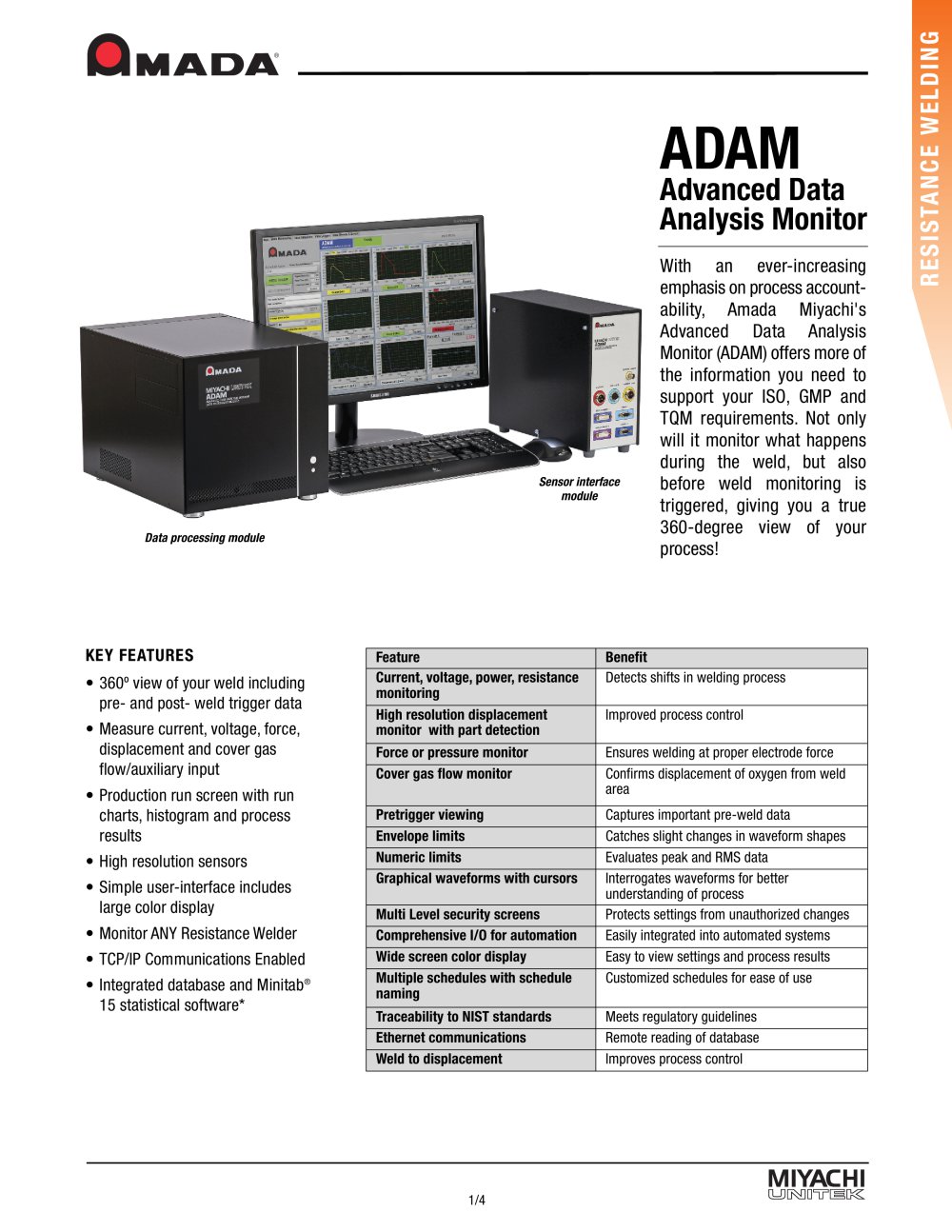

Advanced Data Analysis Monitor Sensor interface module Data processing module KEY FEATURES • 360º view of your weld including pre- and post- weld trigger data • Measure current, voltage, force, displacement and cover gas flow/auxiliary input • Production run screen with run charts, histogram and process results • High resolution sensors • Simple user-interface includes large color display • Monitor ANY Resistance Welder • TCP/IP Communications Enabled • Integrated database and Minitab® 15 statistical software* With an ever-increasing emphasis on process accountability, Amada Miyachi's Advanced Data Analysis Monitor (ADAM) offers more of the information you need to support your ISO, GMP and TQM requirements. Not only will it monitor what happens during the weld, but also before weld monitoring is triggered, giving you a true 360-degree view of your process! Feature Current, voltage, power, resistance monitoring High resolution displacement monitor with part detection Benefit Detects shifts in welding process Force or pressure monitor Cover gas flow monitor Ensures welding at proper electrode force Confirms displacement of oxygen from weld area Pretrigger viewing Envelope limits Numeric limits Graphical waveforms with cursors Captures important pre-weld data Catches slight changes in waveform shapes Evaluates peak and RMS data Interrogates waveforms for better understanding of process Protects settings from unauthorized changes Easily integrated into automated systems Easy to view settings and process results Customized schedules for ease of use Multi Level security screens Comprehensive I/O for automation Wide screen color display Multiple schedules with schedule naming Traceability to NIST standards Ethernet communications Weld to displacement Improved process control Meets regulatory guidelines Remote reading of database Improves process control RESISTANCE WELDING

Comprehensive production screen provides graphical and numeric viewing of the present weld as well as trend data. Two run charts with limits, histogram, event logger and alarm indications. Programmable weld counter with easy to view process monitor shows ratio of In/Out of limits welds. EXPANDED MONITOR Expandable graphic data windows allow user to overlap multiple graphs to analyze the dynamic relationships between the variables. Waveform cursors with advanced measurement tools allow precise interrogation of the welding sequence. LIMITS SETUP SCREEN: Programmable limits screen for setting upper...

LOGGER SCREEN: Monitored results with time and date stamps are updated in real time. Data is stored on large internal hard disk and is integrated to Minitab Statistical Software package for process analysis and quality improvement. TABLE SCREEN: Statistics | EXPORT PRINT Run Weld Monitoring View Limits View Logger View Even I a & Errors Errors and Events are captured with time and date stamps for record keeping and process analysis. User can also log events such as a change of electrodes so these actions are readily available when analyzing MAIN MENU SCREEN: Simple menu access to setup and view...

RESISTANCE WELDING TECHNICAL SPECIFICATIONS Measurement capability Single channel current, voltage, and gas flow/auxiliary 0-10 volt input. two channels each of force and displacement. (displacement, force, and cover gas flow sensors are optional) Current Voltage Displacement Force Gas flow/auxiliary 0-10 volt Displayed resolution 3 significant digits 3 significant digits 0.0001 in or 0.01 mm 3 significant digits 3 significant digits Derived parameters Measurement time Sampling rates Repetition rate 1 per second for 100 milli second measurement period Numeric peak and RMS; min/max; graphical...
