Frictional Forced Power

Transmission Belt

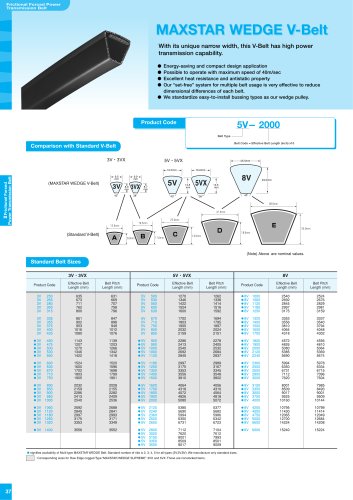

MAXSTAR WEDGE V-Belt

With its unique narrow width, this V-Belt has high power

transmission capability.

• Energy-saving and compact design application

• Possible to operate with maximum speed of 40m/sec

• Excellent heat resistance and antistatic property

• Our "set-free" system for multiple belt usage is very effective to reduce

dimensional differences of each belt.

• We standardize easy-to-install bussing types as our wedge pulley.

Comparison with Standard V-Belt

5V- 2QQQ

Belt Code = Effective Belt Length (inch) x10

3V • 3VX

(MAXSTAR WEDGE V-Belt)

(Standard V-Belt)

- 9.5 J L- 9.9 -

mm mm

Y J mm \^ J rcy

5V-5VX

—-16.0mm—»j |-«-16.6mm—

Standard Belt Sizes

(Note) Above are nominal values.

3V • 3VX

5V • 5VX

8V

Product Code

Effective Belt

Length (mm)

Belt Pitch

Length (mm)

Product Code

Effective Belt

Length (mm)

Belt Pitch

Length (mm)

Product Code

Effective Belt

Length (mm)

Belt Pitch

Length (mm)

3V

3V

3V

3V

3V

3V

3V

3V

3V

3V

• 3V

• 3V

• 3V

• 3V

• 3V

• 3V

• 3V

• 3V

• 3V

• 3V

• 3V

• 3V

• 3V

• 3V

250

265

280

300

315

335

355

375

400

425

450

475

500

530

560

600

630

670

710

750

800

850

900

950

• 3V 1000

• 3V 1060

• 3V 1120

• 3V 1180

• 3V 1250

• 3V 1320

• 3V 1400

635

673

711

762

800

851

902

953

1016

1080

1143

1207

1270

1346

1422

1524

1600

1702

1803

1905

2032

2159

2286

2413

2540

2692

2845

2997

3175

3353

3556

631

669

707

758

796

847

898

949

1012

1076

1139

1203

1266

1342

1418

1520

1596

1698

1799

1901

2028

2155

2282

2409

2536

2688

2841

2993

3171

3349

3552

5V

5V

5V

5V

5V

5V

5V

5V

5V

5V

15V

15V

500

530

560

600

630

670

710

750

800

850

900

950

• 5V 1000

• 5V 1060

• 5V 1120

• 5V 1180

• 5V 1250

• 5V 1320

• 5V 1400

• 5V 1600

• 5V 1700

• 5V 1800

• 5V 1900

• 5V 2000

• 5V 2120

• 5V 2240

• 5V 2360

• 5V 2500

• 5V 2650

• 5V 2800

• 5V 3000

• 5V 3150

• 5V 3350

• 5V 3550

1270

1346

1422

1524

1600

1702

1803

1905

2032

2159

2286

2413

2540

2692

2845

2997

3175

3353

3556

3810

4064

4318

4572

4826

5080

5385

5690

5994

6350

6731

7112

7620

8001

8509

9017

1262

1338

1414

1516

1592

1694

1795

1897

2024

2151

2278

2405

2532

2684

2837

2989

3167

3345

3548

3802

4056

4310

4564

4818

5072

5377

5682

5986

6342

6723

7104

7612

7993

8501

9009

• 8V

• 8V

• 8V

• 8V

• 8V

100Q

1060

1120

1180

1250

• 8V 1320

• 8V 1400

• 8V 1500

• 8V 1600

• 8V 1700

• 8V 1800

• 8V 1900

• 8V 2000

• 8V 2120

• 8V 2240

• 8V 2360

• 8V 2500

• 8V 2650

• 8V 2800

• 8V 3150

• 8V 3350

• 8V 3550

• 8V 3750

• 8V 4000

• 8V 4250

• 8V 4500

• 8V 4750

• 8V 5000

• 8V 5600

• 8V 6000

2540

2692

2845

2997

3175

3353

3556

3810

4064

4318

4572

4826

5080

5385

5690

5994

6350

6731

7112

7620

8001

8509

9017

9525

10160

10795

11430

12065

12700

14224

15240

2524

2676

2829

2981

3159

3337

3540

3794

4048

4302

4556

4810

5064

5369

5674

5978

6334

6715

7096

7604

7985

8493

9001

9509

10144

10799

11414

12049

12684

14208

15224

• signifies availability of Multi type MAXSTAR WEDGE Belt. Standard number of ribs is 2,3,4, 5 for all types (3V,5V,8V). We manufacture only standard s

| : Corresponding sizes for Raw Edge cogged Type "MAXSTAR WEDGE SUPREME" 3VXand 5VX. Those are nonstocked items.

37
