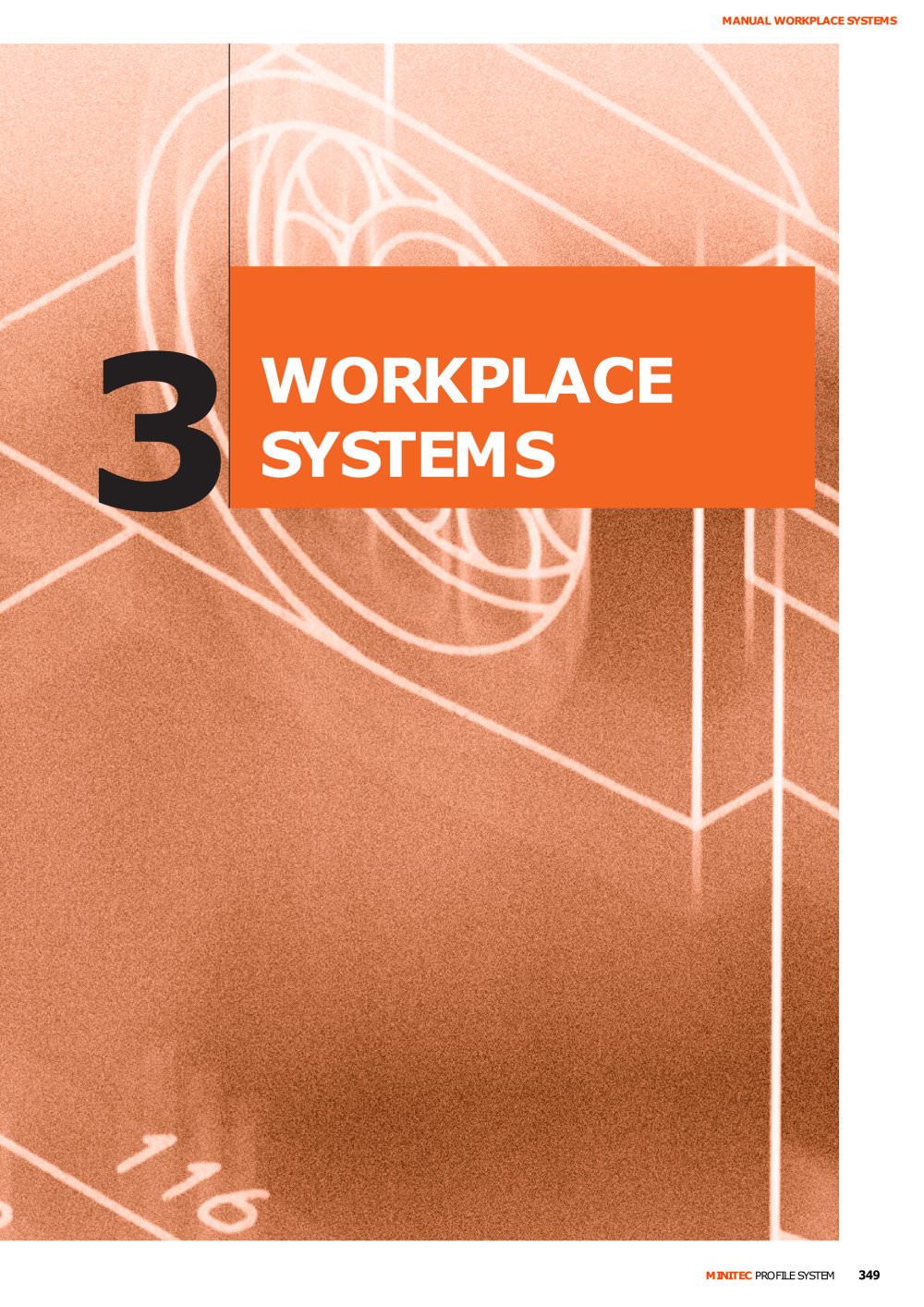

MiniTec Workplaces - 1

MINITEC PROFILE SYSTEM 349 MANUAL WORKPLACE SYSTEMS WORKPLACE 3 SYSTEMS

Open the catalog to page 1
MiniTec Workplaces - 2

MANUAL WORKPLACE SYSTEMS 350 MINITEC PROFILE SYSTEM WORKPLACE SYSTEMS For many years now, MiniTec profile system and MiniTec CADmenue have been setting the standard to process flow, workplaces, factory automation and machine protection. Tailor-made workplaces avoid detrimental compromises. The modular MiniTec system with its associated software is basis for realizing optimal problem solution both economically and quickly. All system components are compatible and can be combined to form production systems. Flexibility and profitability must not necessarily be competing targets. Manual...

Open the catalog to page 2
MiniTec Workplaces - 3

MINITEC PROFILE SYSTEM 351 MANUAL WORKPLACE SYSTEMS WORKPLACE DESIGN Standards for space requirement Workplace design by ergonomics is described under DIN 334000 ff and harmonized European Standard, e.g. DIN ENV 26 385. Objective of ergonomic design is, among others, adaptation of workplace, working space, environment and lighting to human properties and skills. The modular system for designing individual workplaces enables optimal adaptation to task and individual employee concerned. Correct workplace design has, to a high degree, positive effects on employees' health, performance,...

Open the catalog to page 3
MiniTec Workplaces - 4

MANUAL WORKPLACE SYSTEMS 352 MINITEC PROFILE SYSTEM ASSEMBLY STATION FOR BRAKE TUBES WORKTABLE FOR SWITCHBOARD ASSEMBLY WORKSTATION WITH INCLINED WORKING PLANE ASSEMBLY TABLE WITH PROVISION OF TOOLS

Open the catalog to page 4
MiniTec Workplaces - 5

MINITEC PROFILE SYSTEM 353 MANUAL WORKPLACE SYSTEMS BASIC TABLE RACKS s k c a R e l b a T c i s a B BASIC TABLE RACKS

Open the catalog to page 5
MiniTec Workplaces - 6

MANUAL WORKPLACE SYSTEMS BASIC TABLE RACKS 354 MINITEC PROFILE SYSTEM BASE FRAMES The work table is the core piece of the workplace. Through its flexible, ergonomic and goal-oriented design, it is the base for extremely economically flexible workplace systems. The following pages show examples of the different work tables.

Open the catalog to page 6
MiniTec Workplaces - 7

MANUAL WORKPLACE SYSTEMS BASIC TABLE RACKS MINITEC PROFILE SYSTEM 355 CONTAINER TABLE Part. N° 32.0110/0 TECHN. DATA - Basic frame, profile mat. 45 x 45 F, anodized E6/EV1 - Foot GD, height-adjustable for floor level compensation - Mounted electrically conductive with MiniTec power-lock fasteners - Without tabletop - Tabletops: See page TECHN. DATA - Max. dimensions: B=2500 mm, T=1500 mm - Seated work position (without tabletop): H= 678 mm - Standing work position (without tabletop): H= 878 mm - Preferred size: B= 1500 mm, T= 800 mm - Max. load: 2000 N at even load distribution TECHN. DATA...

Open the catalog to page 7
MiniTec Workplaces - 8

MANUAL WORKPLACE SYSTEMS HEIGHT-ADJUSTABLE TABLES 356 MINITEC PROFILE SYSTEM s e l b a t e l b a t s u j d a - t h g i e H HEIGHT-ADJUSTABLE TABLES

Open the catalog to page 8
MiniTec Workplaces - 9

MINITEC PROFILE SYSTEM 357 MANUAL WORKPLACE SYSTEMS HEIGHT-ADJUSTABLE TABLES HEIGHT-ADJUSTABLE TABLES Elbow-room is an important prerequisite for non-tiring, concentrated work. The height-adjustable tables allow fast and simple adaptation to the individual height of the employee concerned. Beyond that, the operating position between standing and seating may be varied during the course of the workday. Permanent postural deformities are thus prevented.

Open the catalog to page 9
MiniTec Workplaces - 10

MANUAL WORKPLACE SYSTEMS HEIGHT-ADJUSTABLE TABLES 358 MINITEC PROFILE SYSTEM HYDRAULICALLY HEIGHT-ADJUSTABLE TABLE Part. N° 32.0080/0 TECHN. DATA - Basic frame, profil 45 x 45 F, anodized E6/ EV1 - Foot GD, height-adjustable for floor level compensation - Mounted electrically conductive with MiniTec power-lock fasteners - Table with several supports on request - ESD on request TECHN. DATA - Height adjustment: Hand pump with retractable crank handle, mounted underneath tabletop, synchronous table adjustment with 2 simplex-acting hydraulic cylinders in column sleeves or profile 45x90 S -...

Open the catalog to page 10
MiniTec Workplaces - 11

MANUAL WORKPLACE SYSTEMS HEIGHT-ADJUSTABLE TABLES MINITEC PROFILE SYSTEM 359 TELESCOPIC HEIGHT ADJUSTMENT Part. N° 32.0030/0 TECHN. DATA - Height adjustment with electric motor and spindle - Overall dimension 610 mm - Stroke 400 mm - Lifting force 2000 N - Torque max. 800 Nm - Speed 12 mm/s - Short-time operation ED 10% - Weight 23 kg APPLICATIONS - For raising and lowering the work tables and other equipment - Further constructions on request ITEMS SUPPLIED - 2 x Lifting column - 1 x Synchronic control 220V - 2 x Connecting cable - 1 x Manual control switch with position indicator and...

Open the catalog to page 11
MiniTec Workplaces - 12

MANUAL WORKPLACE SYSTEMS HEIGHT-ADJUSTABLE TABLES 360 MINITEC PROFILE SYSTEM TELESCOPIC GUIDE 645 - STROKE 300 Part. N° 32.0320/0 TECHN. DATA - Fitting dimension 645 mm - Stroke 300 mm - Lifting force 1000 N - Stroke speed 3 mm / crank rotation - Up to 6 columns per drive expandable - Max system load with hand drive 2000 N - Max load system with electric drive 6000 N - Because of higher friction at excentric load the load capacity is reduced - Weight 7,775 kg APPLICATIONS - For raising and lowering the work tables and other equipment ITEMS SUPPLIED - 1x lifting column, fully assembled and...

Open the catalog to page 12
MiniTec Workplaces - 13

MANUAL WORKPLACE SYSTEMS HEIGHT-ADJUSTABLE TABLES MINITEC PROFILE SYSTEM 361 TELESCOPIC GUIDE 645 - STROKE 300, MANUAL Part. N° 32.0332/0 TECHN. DATA - Overall dimension 645 mm - Stroke 300 mm - Lifting force 1000 N - Speed 3 mm / crank rotation - Weight 18,13 kg APPLICATIONS - For raising and lowering the work tables and other equipment - Multi-column version on request ITEMS SUPPLIED - 2x lift columns, fully assembled - 2x integrated hydraulic cylinders - 1x hydraulic pump with hand-crank - The system must not be subjected to tensile stress TELESCOPIC GUIDE 545 - STROKE 280, ELECTRICAL...

Open the catalog to page 13
MiniTec Workplaces - 14

MANUAL WORKPLACE SYSTEMS HEIGHT-ADJUSTABLE TABLES 362 MINITEC PROFILE SYSTEM TELESCOPIC GUIDE 645 - STROKE 280, ELECTRICAL Part. N° 32.0333/0 TECHN. DATA - Overall dimension 645 mm - Stroke 280 mm - Lifting force 1500 N - Speed 9 mm / second - Max. load with several supports 6000 N - Short-time operation ED 5% - Weight 24,679 kg APPLICATIONS - For raising and lowering the work tables and other equipment - Multi-column version on request ITEMS SUPPLIED - 2x lift columns, fully assembled - 2x integrated hydraulic cylinders - 1x electrical hydraulic pump with operating unit - The system must...

Open the catalog to page 14
