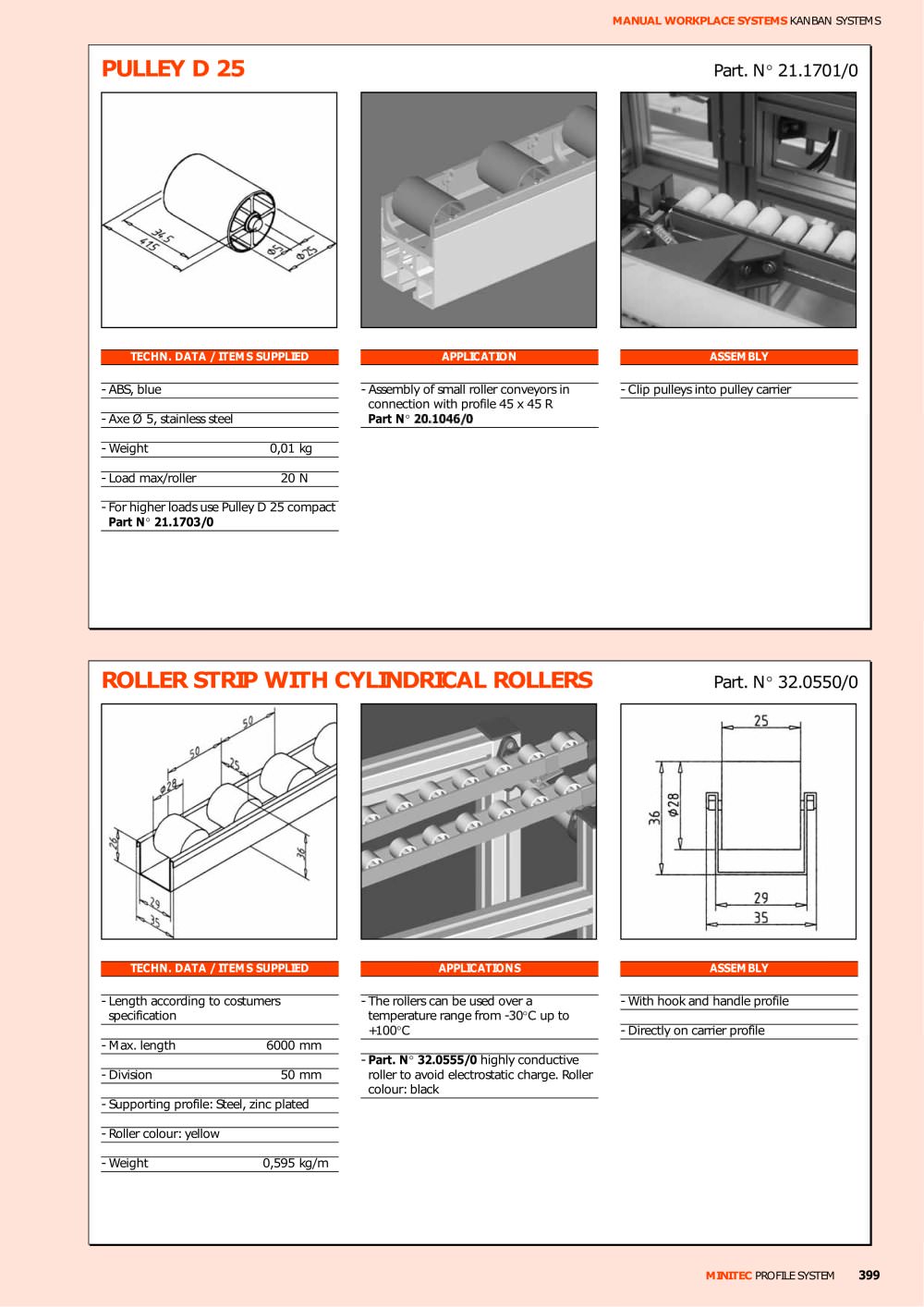

MANUAL WORKPLACE SYSTEMS KANBAN SYSTEMS MINITEC PROFILE SYSTEM 399 PULLEY D 25 Part. N° 21.1701/0 TECHN. DATA / ITEMS SUPPLIED - ABS, blue - Axe Ø 5, stainless steel - Weight 0,01 kg - Load max/roller 20 N - For higher loads use Pulley D 25 compact Part N° 21.1703/0 APPLICATION - Assembly of small roller conveyors in connection with profile 45 x 45 R Part N° 20.1046/0 ASSEMBLY - Clip pulleys into pulley carrier ROLLER STRIP WITH CYLINDRICAL ROLLERS Part. N° 32.0550/0 TECHN. DATA / ITEMS SUPPLIED - Length according to costumers specification - Max. length 6000 mm - Division 50 mm - Supporting profile: Steel, zinc plated - Roller colour: yellow - Weight 0,595 kg/m APPLICATIONS - The rollers can be used over a temperature range from -30°C up to +100°C - Part. N° 32.0555/0 highly conductive roller to avoid electrostatic charge. Roller colour: black ASSEMBLY - With hook and handle profile - Directly on carrier profile
