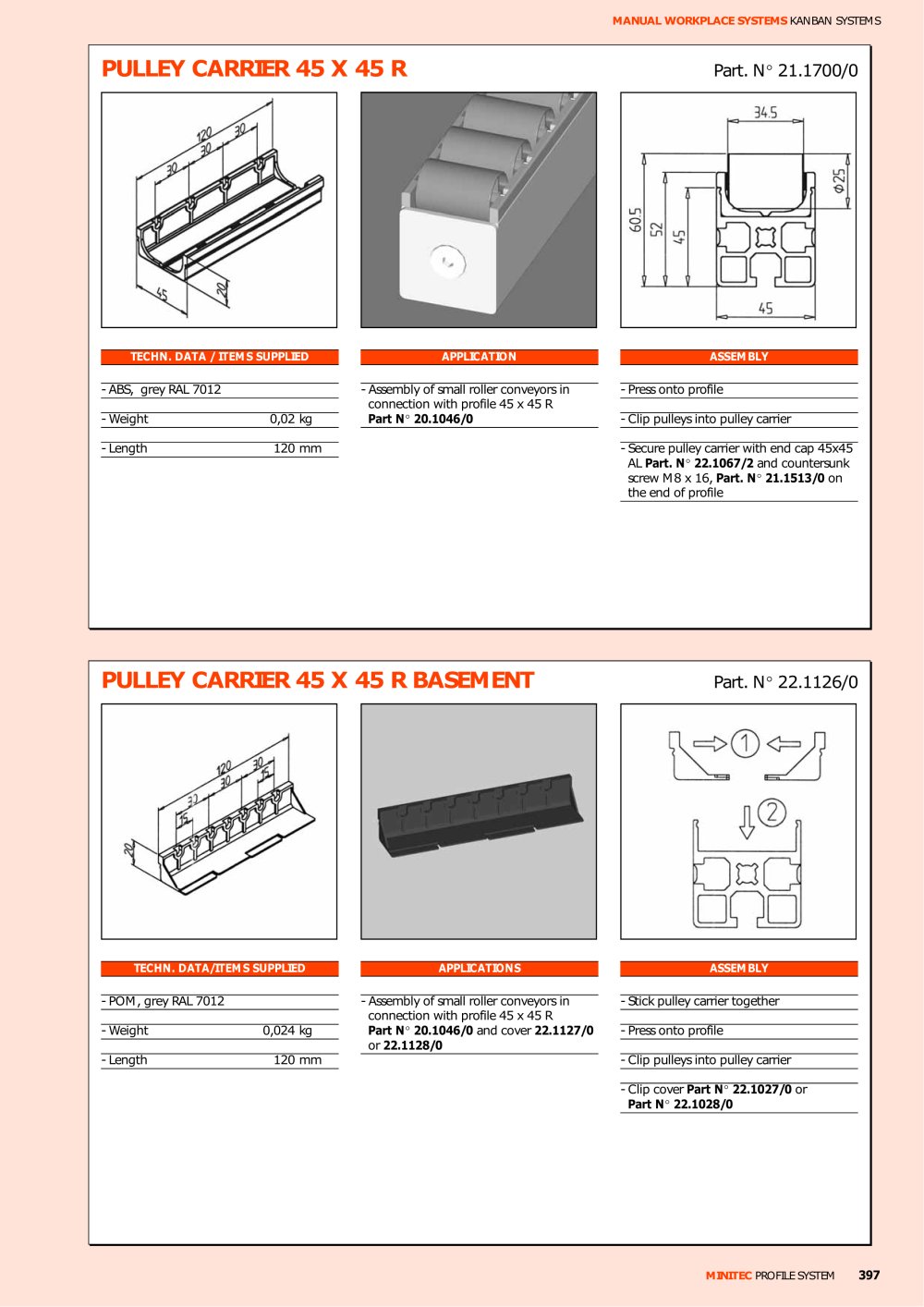

MANUAL WORKPLACE SYSTEMS KANBAN SYSTEMS MINITEC PROFILE SYSTEM 397 PULLEY CARRIER 45 X 45 R Part. N° 21.1700/0 TECHN. DATA / ITEMS SUPPLIED - ABS, grey RAL 7012 - Weight 0,02 kg - Length 120 mm APPLICATION - Assembly of small roller conveyors in connection with profile 45 x 45 R Part N° 20.1046/0 ASSEMBLY - Press onto profile - Clip pulleys into pulley carrier - Secure pulley carrier with end cap 45x45 AL Part. N° 22.1067/2 and countersunk screw M8 x 16, Part. N° 21.1513/0 on the end of profile PULLEY CARRIER 45 X 45 R BASEMENT Part. N° 22.1126/0 TECHN. DATA/ITEMS SUPPLIED - POM, grey RAL 7012 - Weight 0,024 kg - Length 120 mm APPLICATIONS - Assembly of small roller conveyors in connection with profile 45 x 45 R Part N° 20.1046/0 and cover 22.1127/0 or 22.1128/0 ASSEMBLY - Stick pulley carrier together - Press onto profile - Clip pulleys into pulley carrier - Clip cover Part N° 22.1027/0 or Part N° 22.1028/0
