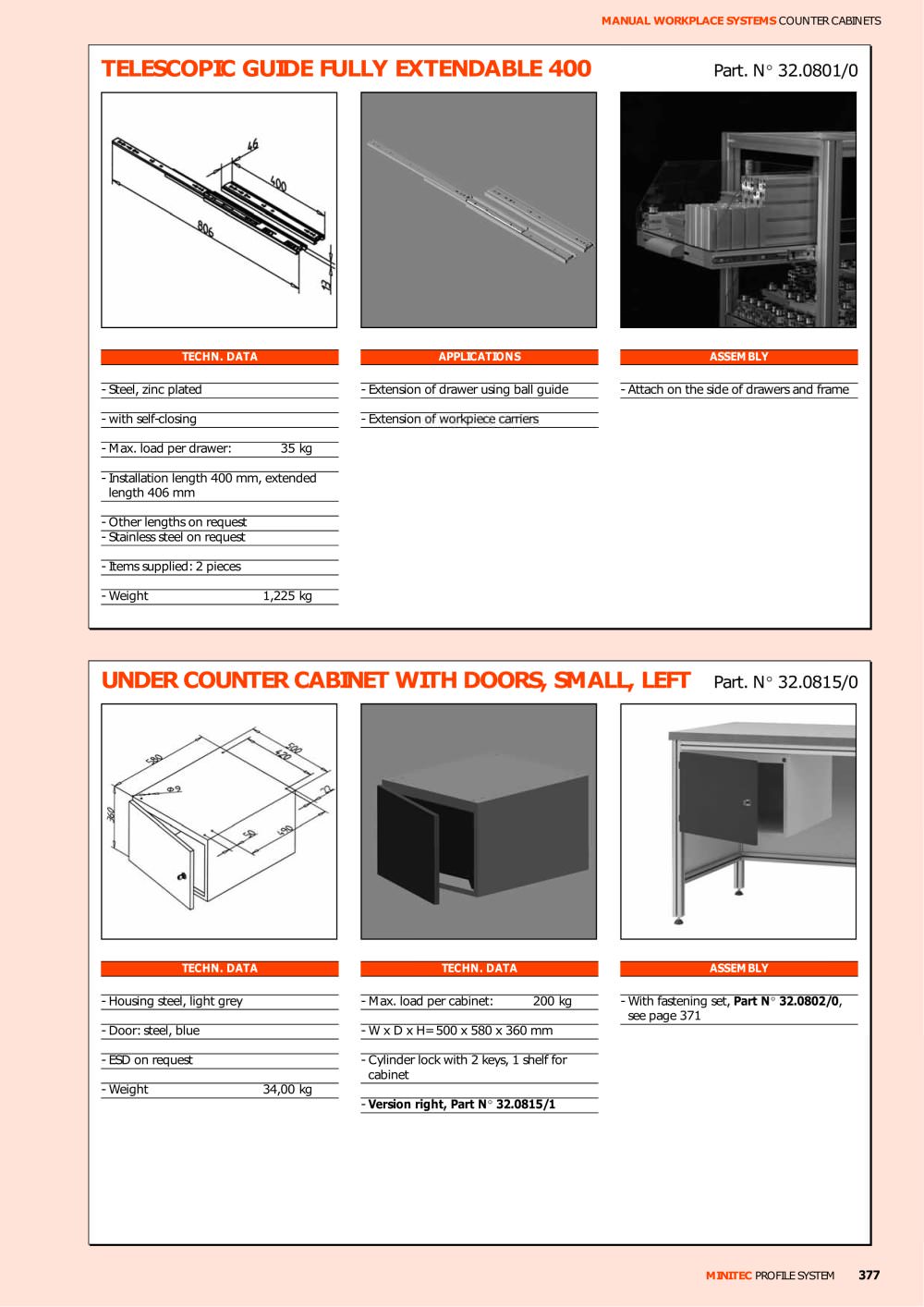

MANUAL WORKPLACE SYSTEMS COUNTER CABINETS
MINITEC PROFILE SYSTEM 377
TELESCOPIC GUIDE FULLY EXTENDABLE 400 Part. N° 32.0801/0
TECHN. DATA
- Steel, zinc plated
- with self-closing
- Max. load per drawer: 35 kg
- Installation length 400 mm, extended
length 406 mm
- Other lengths on request
- Stainless steel on request
- Items supplied: 2 pieces
- Weight 1,225 kg
APPLICATIONS
- Extension of drawer using ball guide
- Extension of workpiece carriers
ASSEMBLY
- Attach on the side of drawers and frame
UNDER COUNTER CABINET WITH DOORS, SMALL, LEFT Part. N° 32.0815/0
TECHN. DATA
- Housing steel, light grey
- Door: steel, blue
- ESD on request
- Weight 34,00 kg
TECHN. DATA
- Max. load per cabinet: 200 kg
- W x D x H= 500 x 580 x 360 mm
- Cylinder lock with 2 keys, 1 shelf for
cabinet
- Version right, Part N° 32.0815/1
ASSEMBLY
- With fastening set, Part N° 32.0802/0,
see page 371
