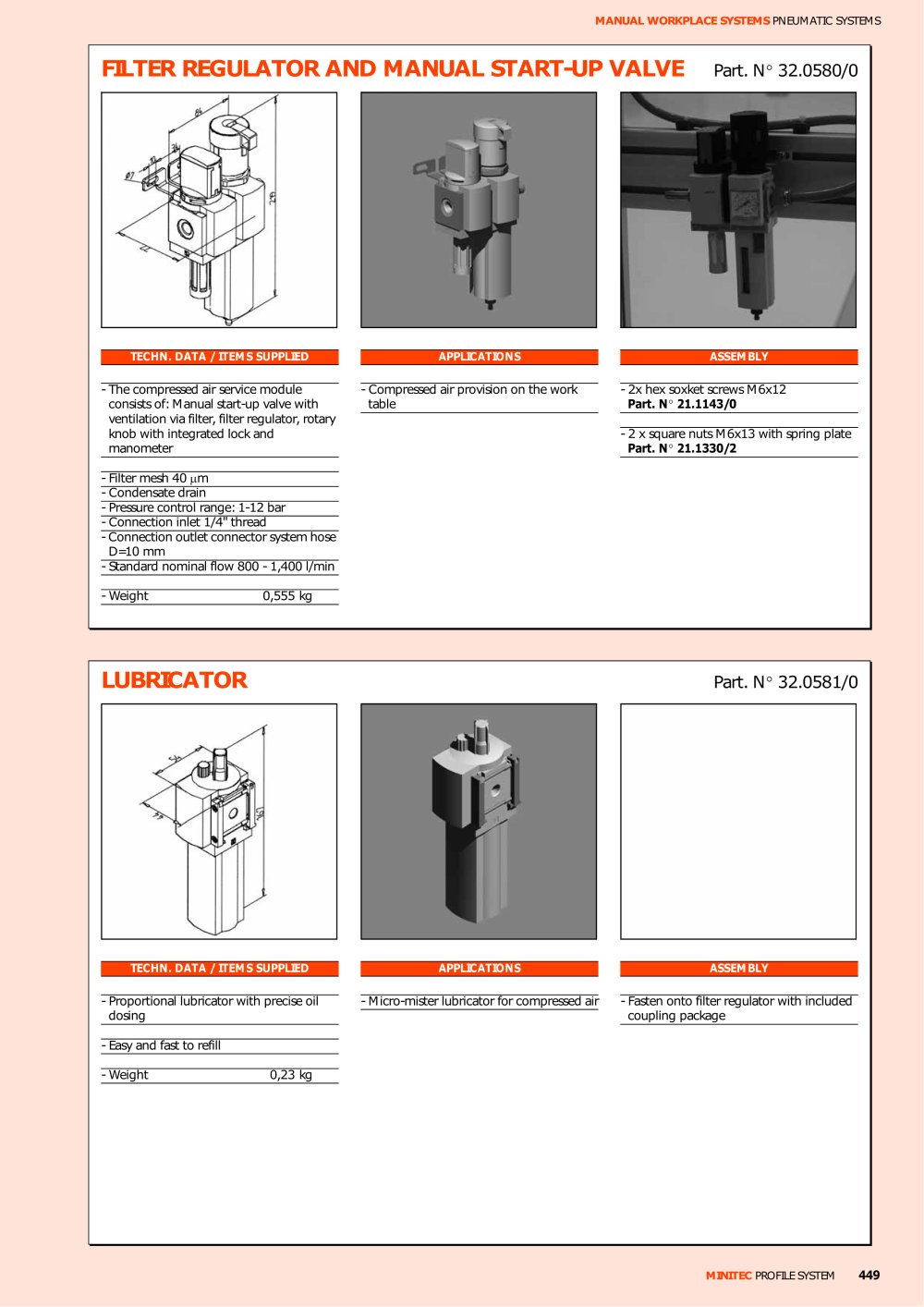

MANUAL WORKPLACE SYSTEMS PNEUMATIC SYSTEMS MINITEC PROFILE SYSTEM 449 FILTER REGULATOR AND MANUAL START-UP VALVE Part. N° 32.0580/0 TECHN. DATA / ITEMS SUPPLIED - The compressed air service module consists of: Manual start-up valve with ventilation via filter, filter regulator, rotary knob with integrated lock and manometer - Filter mesh 40 ìm - Condensate drain - Pressure control range: 1-12 bar - Connection inlet 1/4" thread - Connection outlet connector system hose D=10 mm - Standard nominal flow 800 - 1,400 l/min - Weight 0,555 kg APPLICATIONS - Compressed air provision on the work table ASSEMBLY - 2x hex soxket screws M6x12 Part. N° 21.1143/0 - 2 x square nuts M6x13 with spring plate Part. N° 21.1330/2 LUBRICATOR Part. N° 32.0581/0 TECHN. DATA / ITEMS SUPPLIED - Proportional lubricator with precise oil dosing - Easy and fast to refill - Weight 0,23 kg APPLICATIONS - Micro-mister lubricator for compressed air ASSEMBLY - Fasten onto filter regulator with included coupling package
