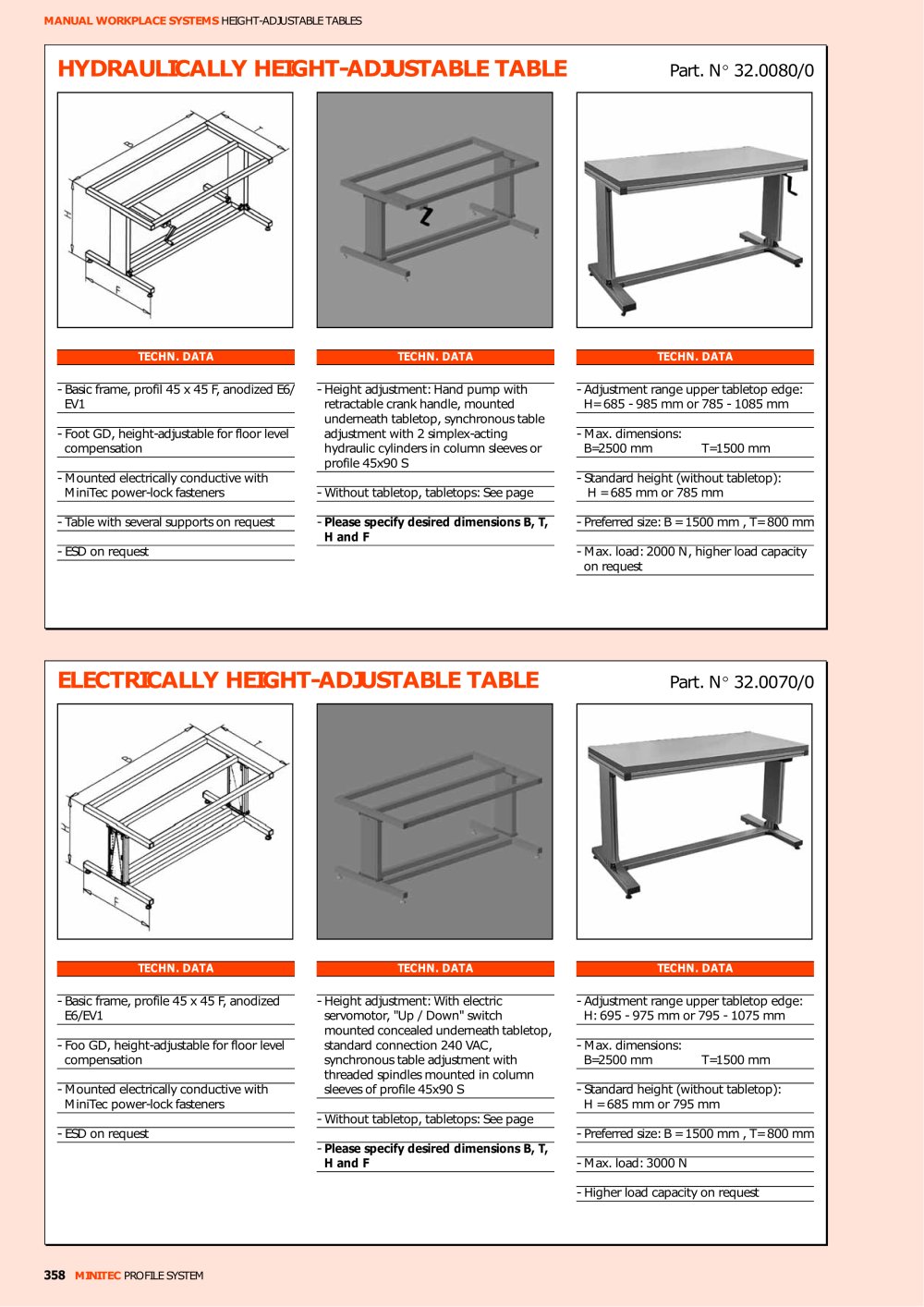

MANUAL WORKPLACE SYSTEMS HEIGHT-ADJUSTABLE TABLES 358 MINITEC PROFILE SYSTEM HYDRAULICALLY HEIGHT-ADJUSTABLE TABLE Part. N° 32.0080/0 TECHN. DATA - Basic frame, profil 45 x 45 F, anodized E6/ EV1 - Foot GD, height-adjustable for floor level compensation - Mounted electrically conductive with MiniTec power-lock fasteners - Table with several supports on request - ESD on request TECHN. DATA - Height adjustment: Hand pump with retractable crank handle, mounted underneath tabletop, synchronous table adjustment with 2 simplex-acting hydraulic cylinders in column sleeves or profile 45x90 S - Without tabletop, tabletops: See page - Please specify desired dimensions B, T, H and F TECHN. DATA - Adjustment range upper tabletop edge: H= 685 - 985 mm or 785 - 1085 mm - Max. dimensions: B=2500 mm T=1500 mm - Standard height (without tabletop): H = 685 mm or 785 mm - Preferred size: B = 1500 mm , T= 800 mm - Max. load: 2000 N, higher load capacity on request ELECTRICALLY HEIGHT-ADJUSTABLE TABLE Part. N° 32.0070/0 TECHN. DATA - Basic frame, profile 45 x 45 F, anodized E6/EV1 - Foo GD, height-adjustable for floor level compensation - Mounted electrically conductive with MiniTec power-lock fasteners - ESD on request TECHN. DATA - Height adjustment: With electric servomotor, "Up / Down" switch mounted concealed underneath tabletop, standard connection 240 VAC, synchronous table adjustment with threaded spindles mounted in column sleeves of profile 45x90 S - Without tabletop, tabletops: See page - Please specify desired dimensions B, T, H and F TECHN. DATA - Adjustment range upper tabletop edge: H: 695 - 975 mm or 795 - 1075 mm - Max. dimensions: B=2500 mm T=1500 mm - Standard height (without tabletop): H = 685 mm or 795 mm - Preferred size: B = 1500 mm , T= 800 mm - Max. load: 3000 N - Higher load capacity on request
