MINITEC PROFILE SYSTEM 471
CONVEYORS BELT CONVEYOR

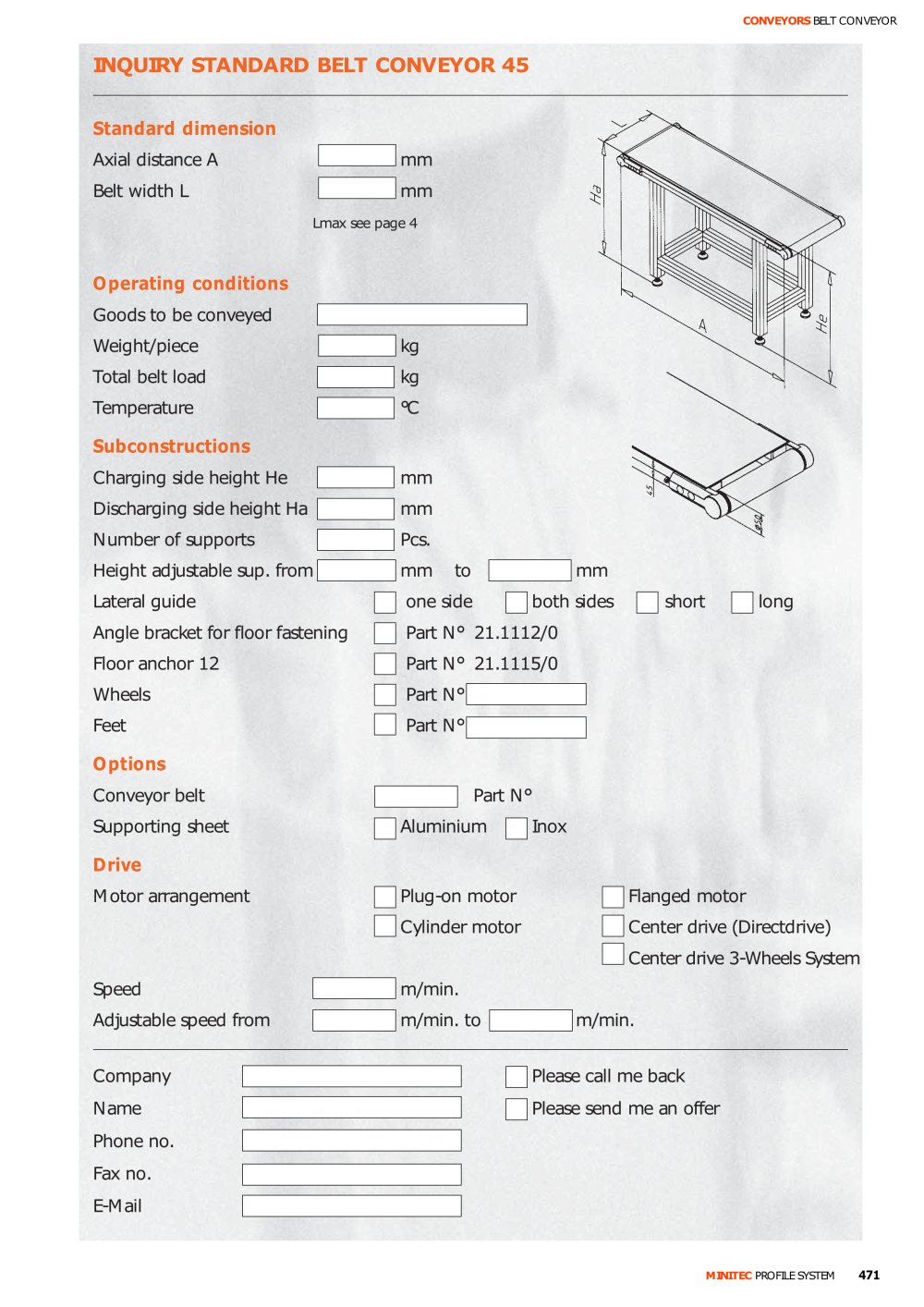

INQUIRY STANDARD BELT CONVEYOR 45
Standard dimension
Axial distance A mm
Belt width L mm
Lmax see page 4
Operating conditions
Goods to be conveyed
Weight/piece kg
Total belt load kg
Temperature °C
Subconstructions
Charging side height He mm
Discharging side height Ha mm
Number of supports Pcs.
Height adjustable sup. from mm to mm
Lateral guide one side both sides short long
Angle bracket for floor fastening Part N° 21.1112/0
Floor anchor 12 Part N° 21.1115/0
Wheels Part N°
Feet Part N°
Options
Conveyor belt Part N°
Supporting sheet Aluminium Inox
Drive
Motor arrangement Plug-on motor Flanged motor
Cylinder motor Center drive (Directdrive)
Center drive 3-Wheels System
Speed m/min.
Adjustable speed from m/min. to m/min.
Company Please call me back
Name Please send me an offer
Phone no.
Fax no.
E-Mail
