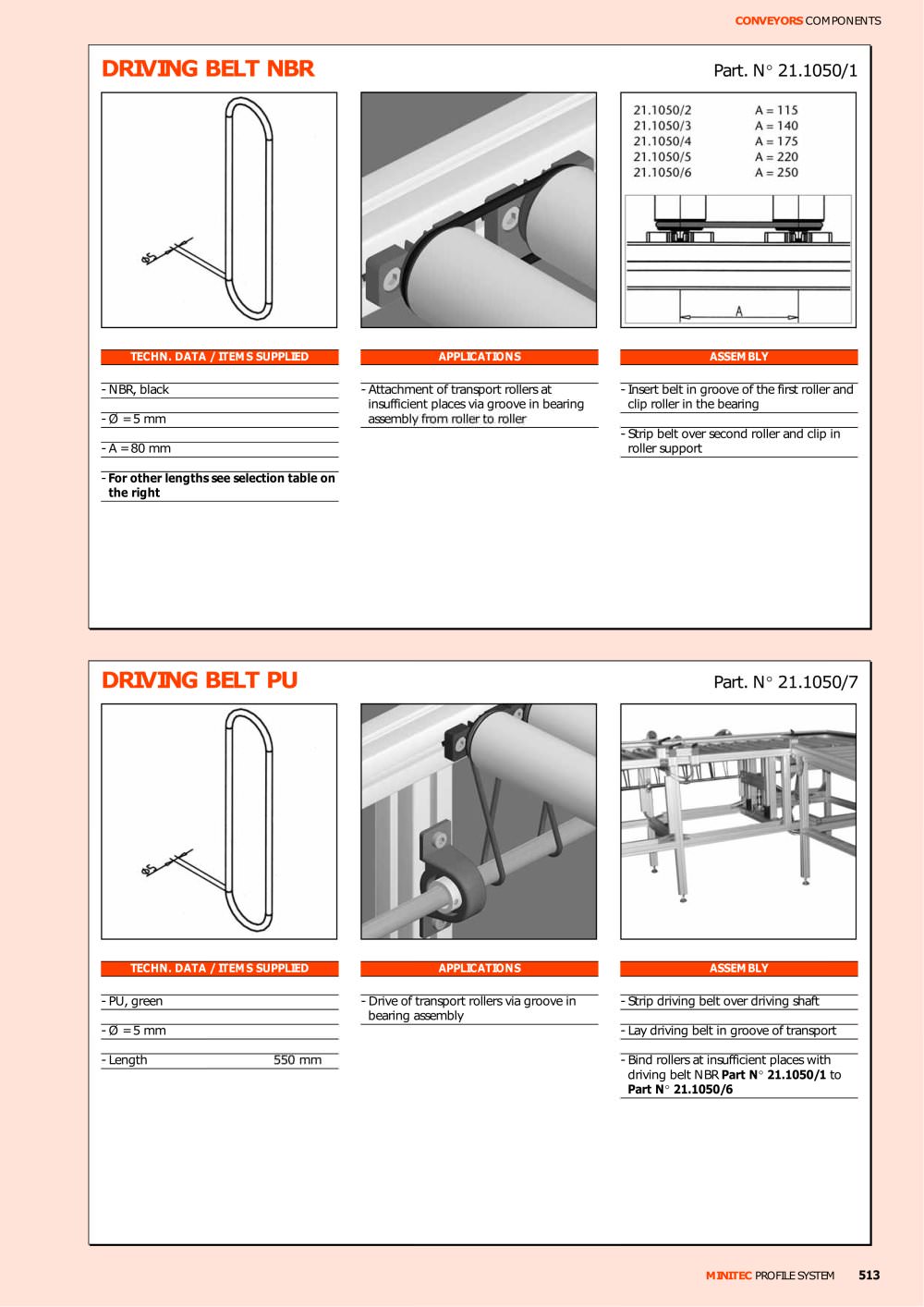

CONVEYORS COMPONENTS
MINITEC PROFILE SYSTEM 513
DRIVING BELT NBR Part. N° 21.1050/1
TECHN. DATA / ITEMS SUPPLIED
- NBR, black
- Ø = 5 mm
- A = 80 mm
- For other lengths see selection table on
the right
APPLICATIONS
- Attachment of transport rollers at
insufficient places via groove in bearing
assembly from roller to roller
ASSEMBLY
- Insert belt in groove of the first roller and
clip roller in the bearing
- Strip belt over second roller and clip in
roller support
DRIVING BELT PU Part. N° 21.1050/7
TECHN. DATA / ITEMS SUPPLIED
- PU, green
- Ø = 5 mm
- Length 550 mm
APPLICATIONS
- Drive of transport rollers via groove in
bearing assembly
ASSEMBLY
- Strip driving belt over driving shaft
- Lay driving belt in groove of transport
- Bind rollers at insufficient places with
driving belt NBR Part N° 21.1050/1 to
Part N° 21.1050/6
