MINITEC PROFILE SYSTEM 467
CONVEYORS BELT CONVEYOR

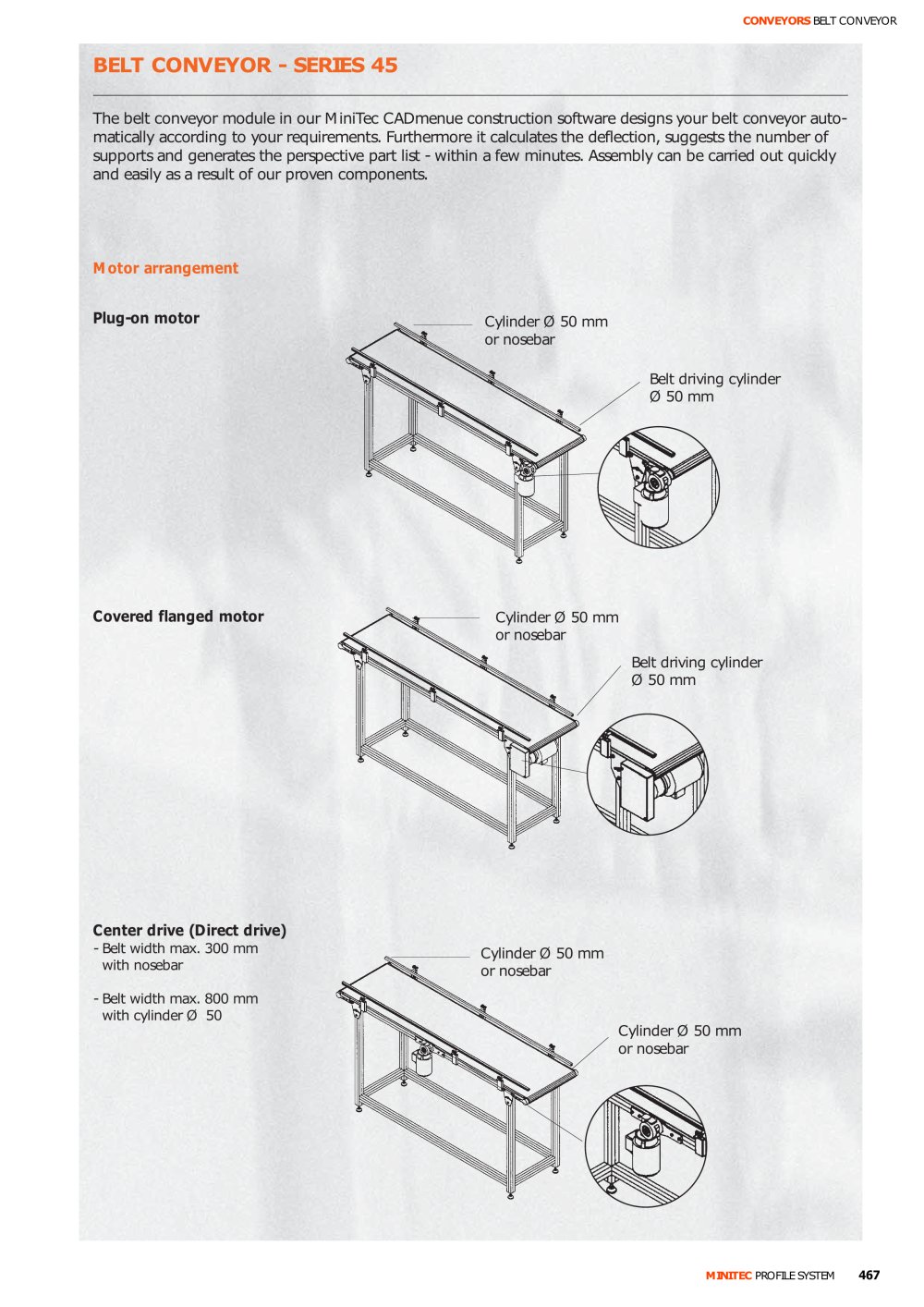

BELT CONVEYOR - SERIES 45
The belt conveyor module in our MiniTec CADmenue construction software designs your belt conveyor automatically
according to your requirements. Furthermore it calculates the deflection, suggests the number of
supports and generates the perspective part list - within a few minutes. Assembly can be carried out quickly
and easily as a result of our proven components.
Motor arrangement
Plug-on motor
Covered flanged motor
Cylinder Ø 50 mm
or nosebar
Belt driving cylinder
Ø 50 mm
Cylinder Ø 50 mm
or nosebar
Belt driving cylinder
Ø 50 mm
Center drive (Direct drive)
- Belt width max. 300 mm
with nosebar
- Belt width max. 800 mm
with cylinder Ø 50
Cylinder Ø 50 mm
or nosebar
Cylinder Ø 50 mm
or nosebar
