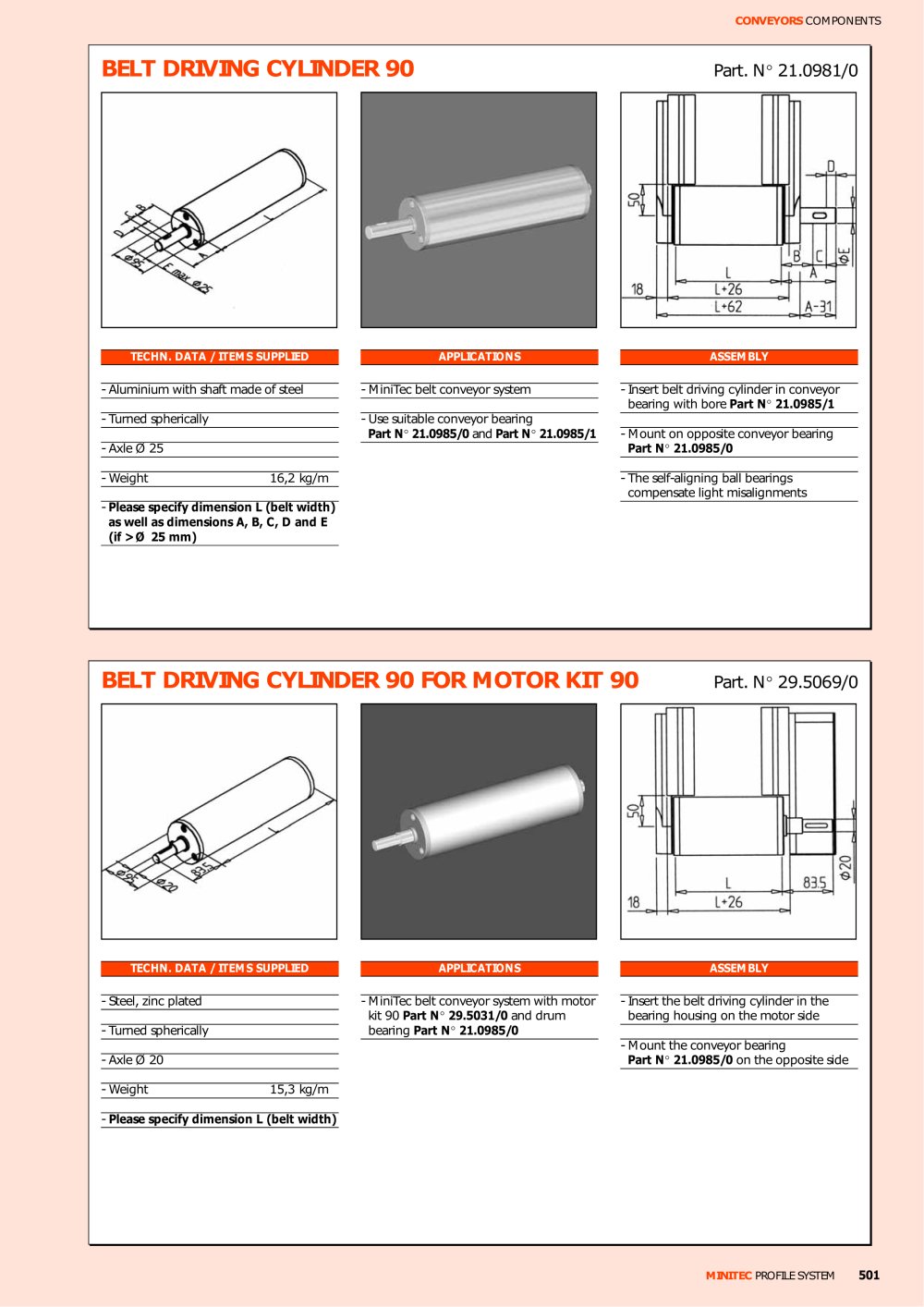

CONVEYORS COMPONENTS MINITEC PROFILE SYSTEM 501 BELT DRIVING CYLINDER 90 Part. N° 21.0981/0 TECHN. DATA / ITEMS SUPPLIED - Aluminium with shaft made of steel - Turned spherically - Axle Ø 25 - Weight 16,2 kg/m - Please specify dimension L (belt width) as well as dimensions A, B, C, D and E (if > Ø 25 mm) APPLICATIONS - MiniTec belt conveyor system - Use suitable conveyor bearing Part N° 21.0985/0 and Part N° 21.0985/1 ASSEMBLY - Insert belt driving cylinder in conveyor bearing with bore Part N° 21.0985/1 - Mount on opposite conveyor bearing Part N° 21.0985/0 - The self-aligning ball bearings compensate light misalignments BELT DRIVING CYLINDER 90 FOR MOTOR KIT 90 Part. N° 29.5069/0 TECHN. DATA / ITEMS SUPPLIED - Steel, zinc plated - Turned spherically - Axle Ø 20 - Weight 15,3 kg/m - Please specify dimension L (belt width) APPLICATIONS - MiniTec belt conveyor system with motor kit 90 Part N° 29.5031/0 and drum bearing Part N° 21.0985/0 ASSEMBLY - Insert the belt driving cylinder in the bearing housing on the motor side - Mount the conveyor bearing Part N° 21.0985/0 on the opposite side
