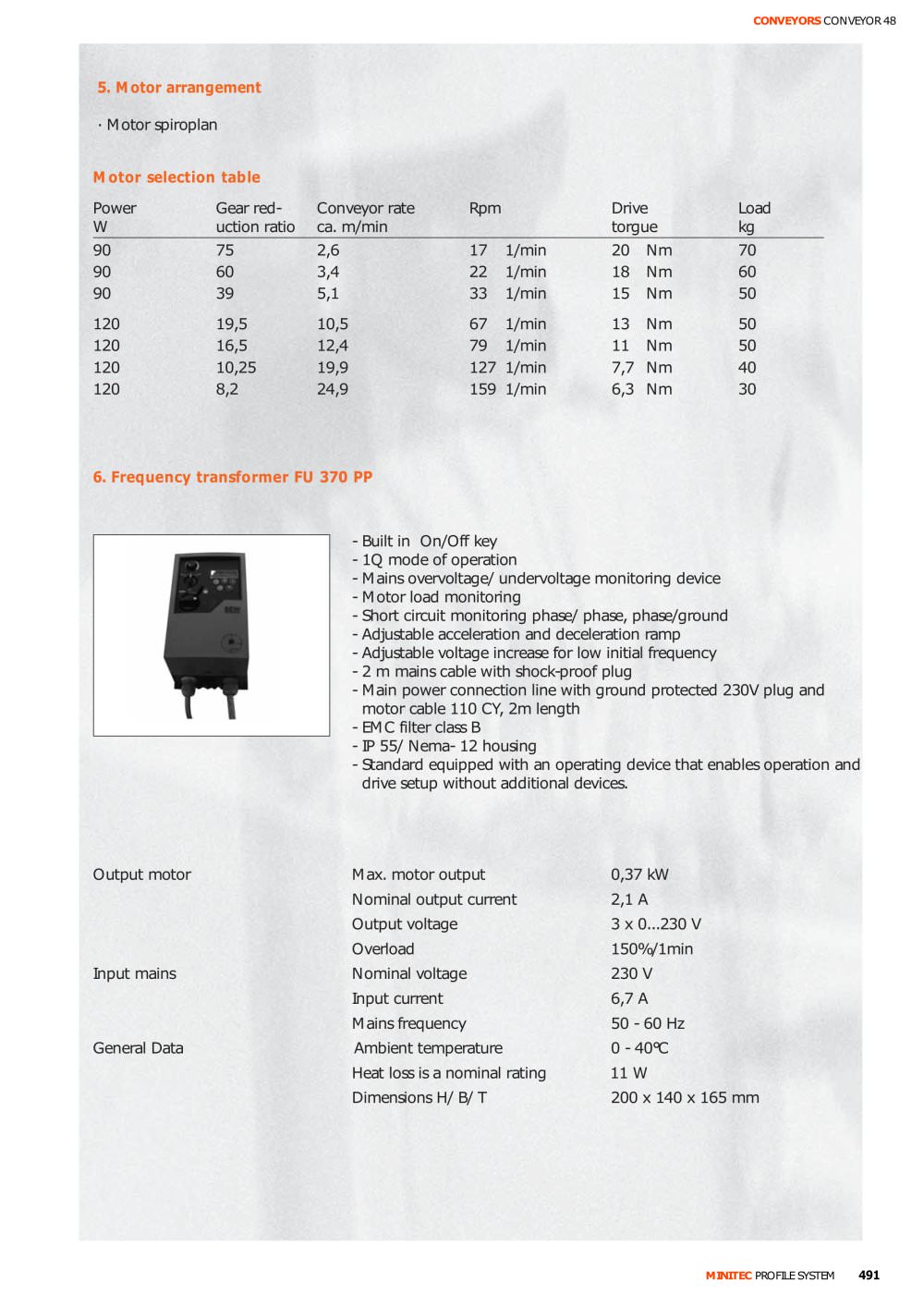

MINITEC PROFILE SYSTEM 491 CONVEYORS CONVEYOR 48 00.0 065/ 0 5. Motor arrangement · Motor spiroplan Motor selection table Power Gear red- Conveyor rate Rpm Drive Load W uction ratio ca. m/min torgue kg 90 75 2,6 17 1/min 20 Nm 70 90 60 3,4 22 1/min 18 Nm 60 90 39 5,1 33 1/min 15 Nm 50 120 19,5 10,5 67 1/min 13 Nm 50 120 16,5 12,4 79 1/min 11 Nm 50 120 10,25 19,9 127 1/min 7,7 Nm 40 120 8,2 24,9 159 1/min 6,3 Nm 30 6. Frequency transformer FU 370 PP - Built in On/Off key - 1Q mode of operation - Mains overvoltage/ undervoltage monitoring device - Motor load monitoring - Short circuit monitoring phase/ phase, phase/ground - Adjustable acceleration and deceleration ramp - Adjustable voltage increase for low initial frequency - 2 m mains cable with shock-proof plug - Main power connection line with ground protected 230V plug and motor cable 110 CY, 2m length - EMC filter class B - IP 55/ Nema- 12 housing - Standard equipped with an operating device that enables operation and drive setup without additional devices. Output motor Max. motor output 0,37 kW Nominal output current 2,1 A Output voltage 3 x 0...230 V Overload 150%/1min Input mains Nominal voltage 230 V Input current 6,7 A Mains frequency 50 - 60 Hz General Data Ambient temperature 0 - 40°C Heat loss is a nominal rating 11 W Dimensions H/ B/ T 200 x 140 x 165 mm
