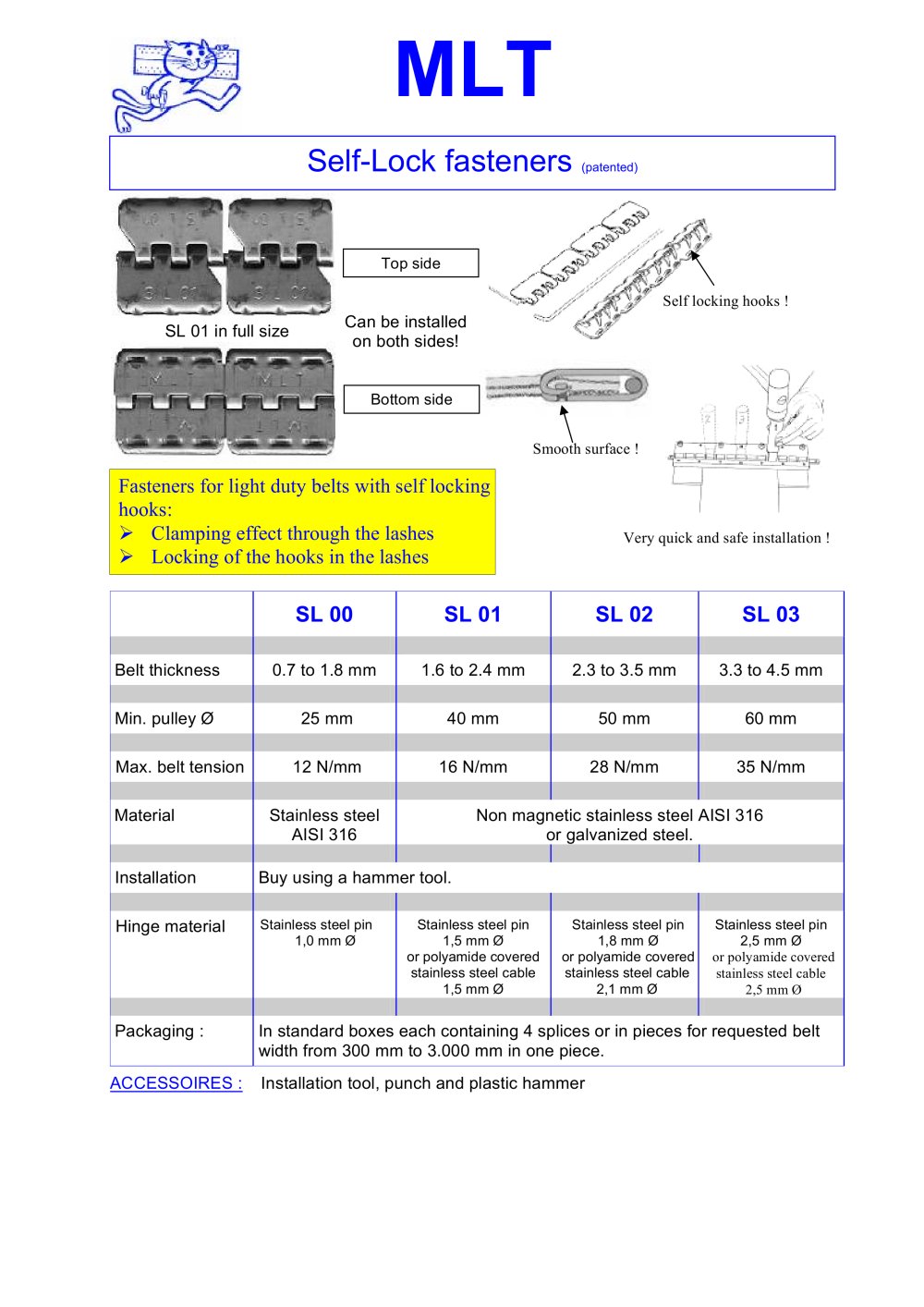

MLT

Self-Lock fasteners

(patented) SL 01 in full size
Top side Self locking hooks ! Can be installedon both sides!
Bottom side Smooth surface !

Fasteners for light duty belts with self locking hooks: Clamping effect through the lashes Locking of the hooks in the lashes

Very quick and safe installation !

SL 00SL 01SL 02 SL 03

Belt thickness 0.7 to 1.8 mm 1.6 to 2.4 mm 2.3 to 3.5 mm 3.3 to 4.5 mm Min. pulley Ø 25 mm 40 mm 50 mm 60 mm Max. belt tension 12 N/mm 16 N/mm 28 N/mm 35 N/mm MaterialStainless steel AISI 316Non magnetic stainless steel AISI 316or galvanized steel. InstallationBuy using a hammer tool. Hinge material
Stainless steel pin 1,0 mm ØStainless steel pin1,5 mm Ø or polyamide covered stainless steel cable 1,5 mm ØStainless steel pin1,8 mm Ø or polyamide covered stainless steel cable 2,1 mm ØStainless steel pin 2,5 mm Ø or polyamide covered stainless steel cable 2,5 mm Ø Packaging : In standard boxes each containing 4 splices or in pieces for requested belt width from 300 mm to 3.000 mm in one piece. ACCESSOIRES : Installation tool, punch and plastic hammer
