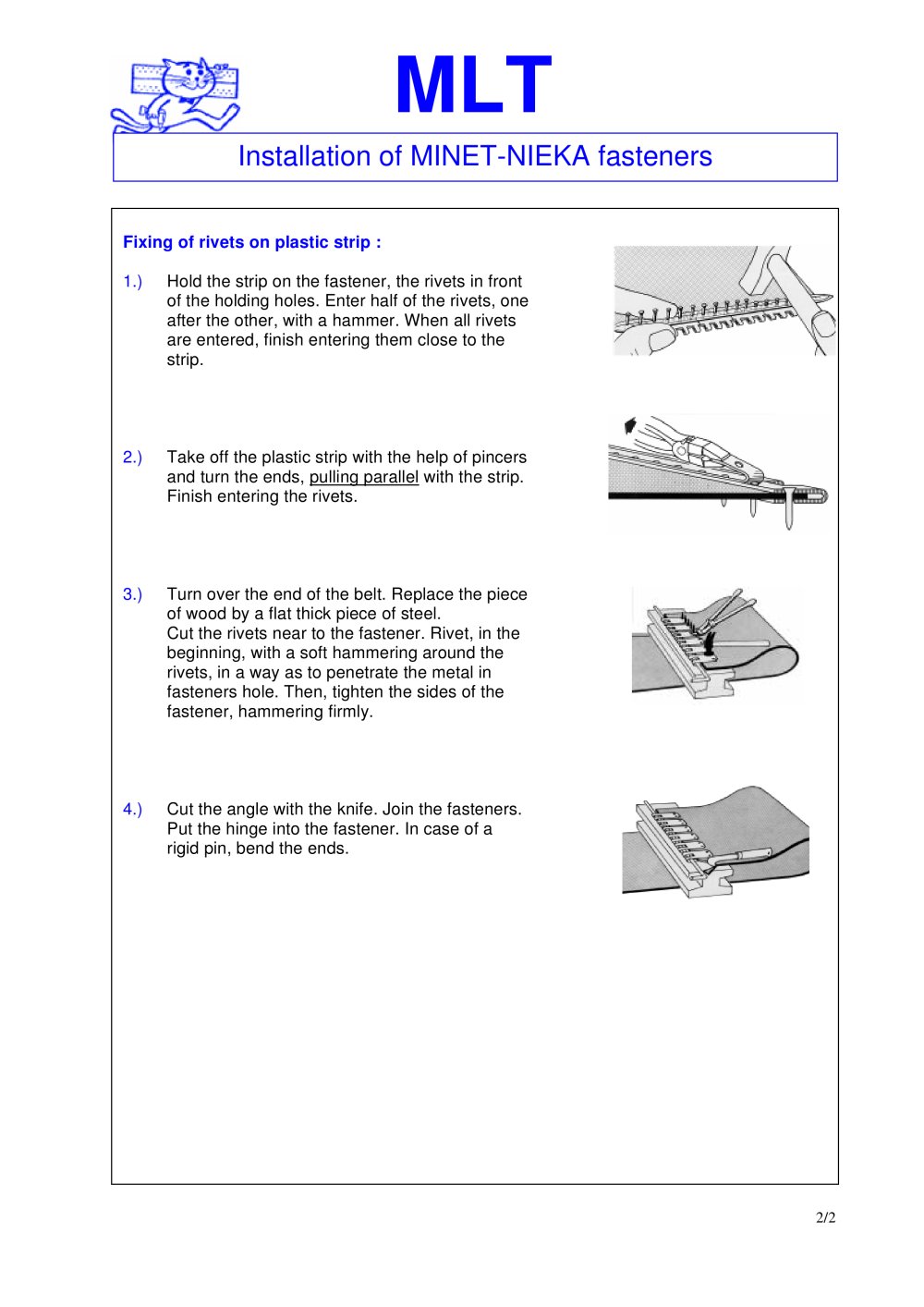

Installation of MINET-NIEKA fasteners

Rivet fasteners - 7573 MLT

Fixing of rivets on plastic strip : 1.)Hold the strip on the fastener, the rivets in front of the holding holes. Enter half of the rivets, one after the other, with a hammer. When all rivets are entered, finish entering them close to the strip.2.)Take off the plastic strip with the help of pincers and turn the ends, pulling parallel with the strip. Finish entering the rivets. 3.)Turn over the end of the belt. Replace the piece of wood by a flat thick piece of steel. Cut the rivets near to the fastener. Rivet, in the beginning, with a soft hammering around the rivets, in a way as to penetrate the metal in fasteners hole. Then, tighten the sides of the fastener, hammering firmly. 4.)Cut the angle with the knife. Join the fasteners. Put the hinge into the fastener. In case of a rigid pin, bend the ends.
2/2
