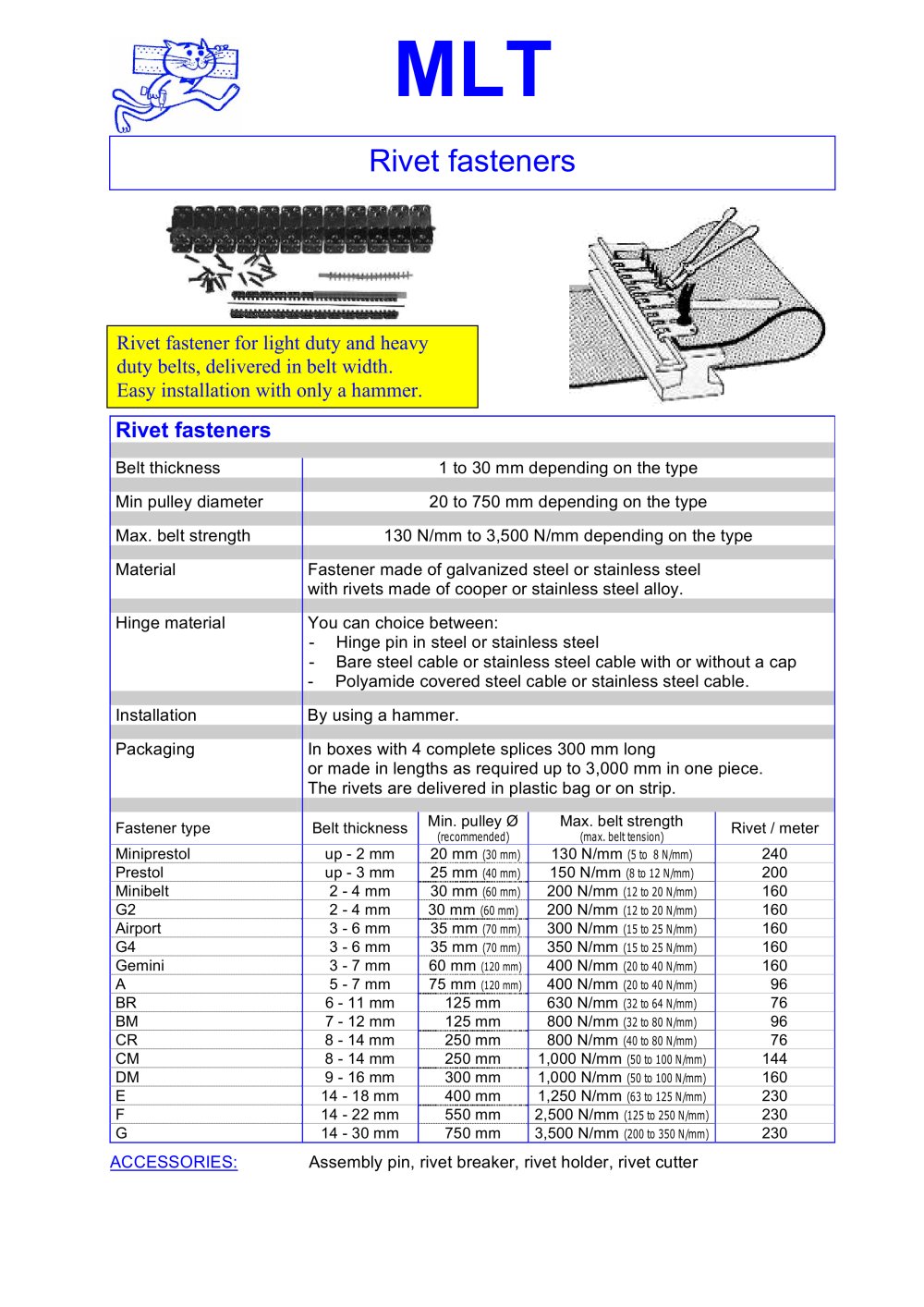

MLT

Rivet fasteners

Rivet professional fastener for light duty and heavy duty belts, delivered in belt width. Easy installation with only a hammer.

Rivet fasteners

Belt thickness 1 to 30 mm depending on the type Min pulley diameter 20 to 750 mm depending on the type Max. belt strength 130 N/mm to 3,500 N/mm depending on the type MaterialFastener made of galvanized steel or stainless steelwith rivets made of cooper or stainless suppliers of steel alloy. Hinge materialYou can choice between: - Hinge pin in steel or stainless steel - Bare steel cable or stainless steel cable with or without a cap - Polyamide covered steel cable or stainless steel cable. Installation By using a hammer. Packaging In boxes with 4 complete splices 300 mm long or made in lengths as required up to 3,000 mm in one piece. The rivets are delivered in plastic bag or on strip.

Fastener type Belt thickness Min. pulley Ø Max. belt strength
(recommended) (max. belt tension) Rivet / meter Miniprestol up - 2 mm 20 mm
(30 mm) 130 N/mm
(5 to 8 N/mm) 240 Prestol up - 3 mm 25 mm
(40 mm) 150 N/mm
(8 to 12 N/mm) 200 Minibelt 2 - 4 mm 30 mm
(60 mm) 200 N/mm
(12 to 20 N/mm) 160 G2 2 - 4 mm 30 mm
(60 mm) 200 N/mm
(12 to 20 N/mm) 160 Airport 3 - 6 mm 35 mm
(70 mm) 300 N/mm
(15 to 25 N/mm) 160 G4 3 - 6 mm 35 mm
(70 mm) 350 N/mm
(15 to 25 N/mm) 160 Gemini 3 - 7 mm 60 mm
(120 mm) 400 N/mm
(20 to 40 N/mm) 160 A 5 - 7 mm 75 mm
(120 mm) 400 N/mm
(20 to 40 N/mm) 96 BR 6 - 11 mm 125 mm 630 N/mm
(32 to 64 N/mm) 76 BM 7 - 12 mm 125 mm 800 N/mm
(32 to 80 N/mm) 96 CR 8 - 14 mm 250 mm 800 N/mm
(40 to 80 N/mm) 76 CM 8 - 14 mm 250 mm 1,000 N/mm
(50 to 100 N/mm) 144 DM 9 - 16 mm 300 mm 1,000 N/mm
(50 to 100 N/mm) 160 E 14 - 18 mm 400 mm 1,250 N/mm
(63 to 125 N/mm) 230 F 14 - 22 mm 550 mm 2,500 N/mm
(125 to 250 N/mm) 230 G 14 - 30 mm 750 mm 3,500 N/mm
(200 to 350 N/mm) 230

ACCESSORIES: Assembly pin, rivet breaker, rivet holder, rivet cutter
