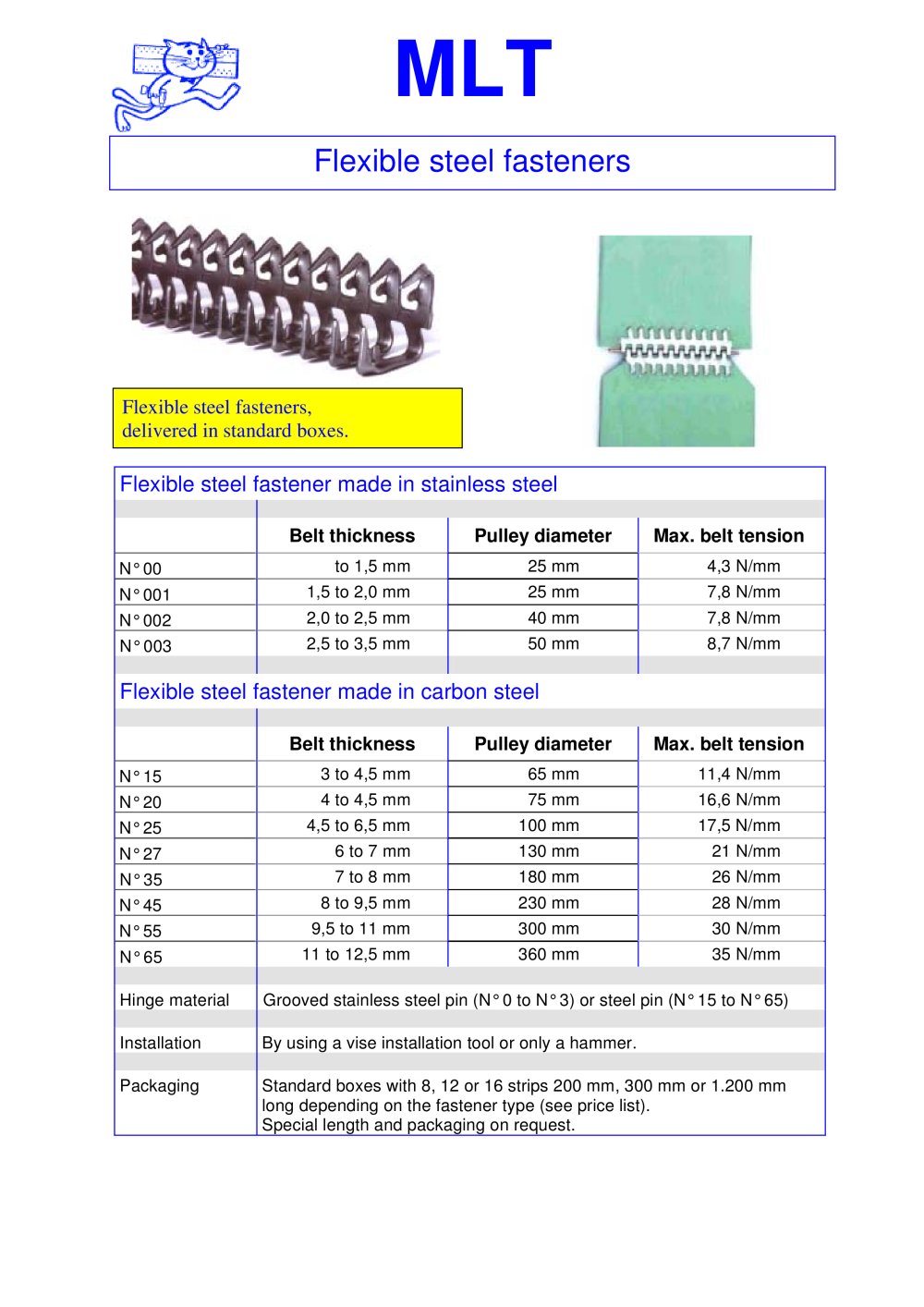

MLT

Flexible steel fasteners

Flexible steel fasteners, delivered in standard boxes.

Flexible steel fastener made in stainless steel

Belt thickness Pulley diameter Max. belt tension

N° 00 to 1,5 mm 25 mm 4,3 N/mm N° 001 1,5 to 2,0 mm 25 mm 7,8 N/mm N° 002 2,0 to 2,5 mm 40 mm 7,8 N/mm N° 003 2,5 to 3,5 mm 50 mm 8,7 N/mm

Flexible steel fastener made in carbon steel

Belt thickness Pulley diameter Max. belt tension

N° 15 3 to 4,5 mm 65 mm 11,4 N/mm N° 20 4 to 4,5 mm 75 mm 16,6 N/mm N° 25 4,5 to 6,5 mm 100 mm 17,5 N/mm N° 27 6 to 7 mm 130 mm 21 N/mm N° 35 7 to 8 mm 180 mm 26 N/mm N° 45 8 to 9,5 mm 230 mm 28 N/mm N° 55 9,5 to 11 mm 300 mm 30 N/mm N° 65 11 to 12,5 mm 360 mm 35 N/mm Hinge material Grooved stainless steel pin (N° 0 to N° 3) or steel pin (N° 15 to N° 65) Installation By using a vise installation tool or only a hammer. Packaging Standard boxes with 8, 12 or 16 strips 200 mm, 300 mm or 1.200 mm long depending on the fastener type (see price list). Special length and packaging on request.
