MLT

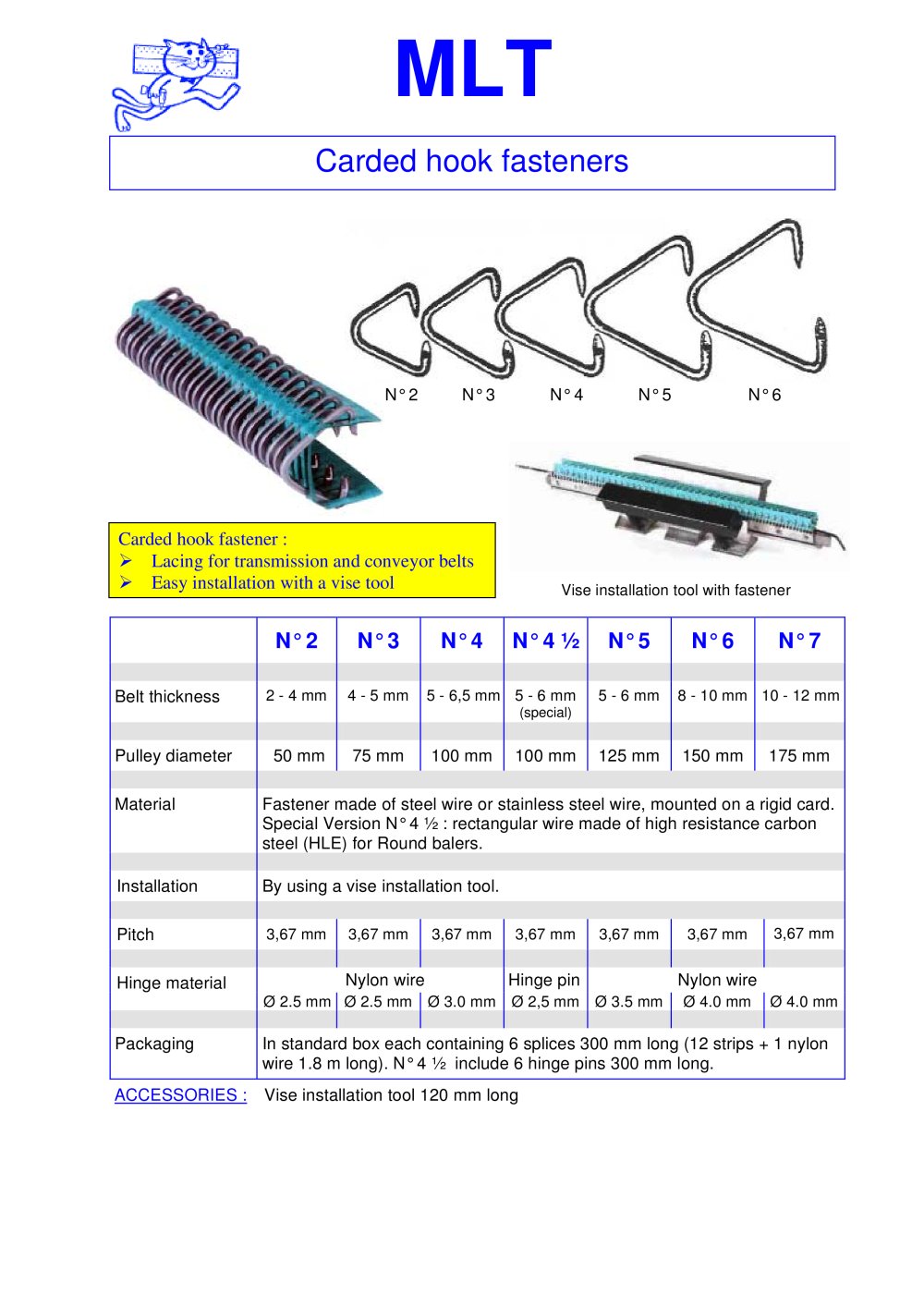

Carded hook fasteners

N° 2 N° 3 N° 4 N° 5 N° 6

Carded hook fastener : Lacing for transmission and conveyor belts

Vise installation tool with fastener

Easy installation with a vise tool

N° 2N° 3N° 4 N° 4 ½N° 5 N° 6 N° 7

Belt thickness
2 - 4 mm 4 - 5 mm 5 - 6,5 mm5 - 6 mm 5 - 6 mm 8 - 10 mm 10 - 12 mm (special) Pulley diamete r 50 mm 75 mm 100 mm 100 mm 125 mm 150 mm 175 mm Material Fastener made of steel wire or stainless steel wire, mounted on a rigid card. Special Version N°4 ½ : rectangular wire made of high resistance carbon steel (HLE) for Round balers. Installation By using a vise installation tool. Pitch
3,67 mm 3,67 mm 3,67 mm 3,67 mm 3,67 mm 3,67 mm 3,67 mm Hinge material Nylon wire Hinge pin Nylon wire
Ø 2.5 mm Ø 2.5 mm Ø 3.0 mm Ø 2,5 mm Ø 3.5 mm Ø 4.0 mm Ø 4.0 mm Packaging In standard box each containing 6 splices 300 mm long (12 strips + 1 nylon wire 1.8 m long). N° 4 ½ include 6 hinge pins 300 mm long. ACCESSORIES : Vise installation tool 120 mm long
