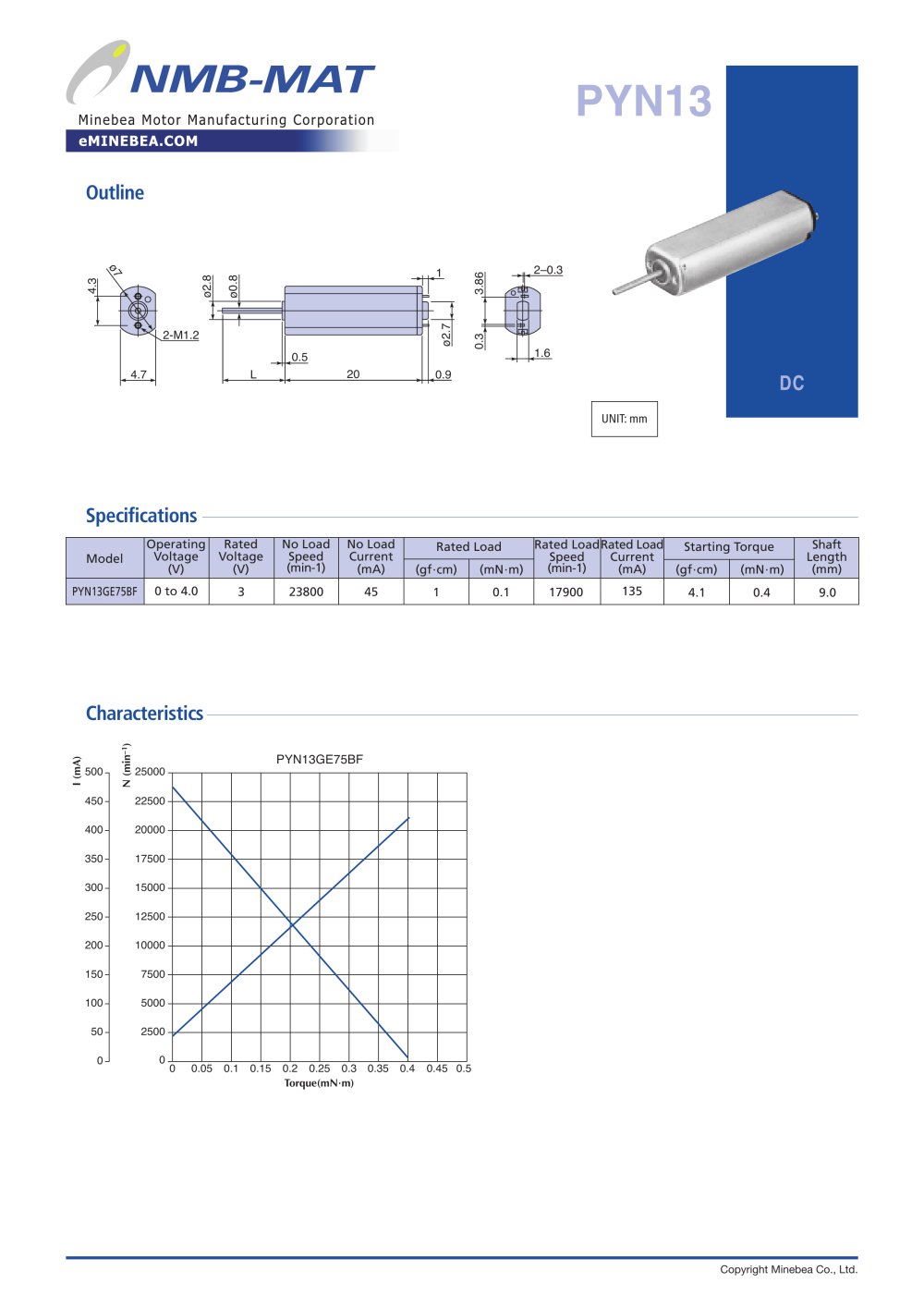

NMB-MAT
PYN13
Minebea Motor Manufacturing Corporation
eMINEBEA.COM
■ Outline
2-0.3
col g
oo evi s
oo
Si
2-M1.2
evi
G
.1.6
.0.5
20
L
.0.9
■ Specifications
Model
Operating Voltage (V)
Rated Voltage (V)
No Load Speed (min-1)
No Load Current (mA)
Rated Load
Rated Load Speed (min-1)
Rated Load Current (mA)
Starting Torque
Shaft Length (mm)
(gf-cm)
(mN-m)
(gf-cm)
(mN-m)
PYN13GE75BF
0 to 4.0
3
23800
45
1
0.1
17900
135
4.1
0.4
9.0
■ Characteristics
PYN13GE75BF
500-
S25000 z
450-
22500
400-
20000
350-
17500
300-
15000
250-
12500
200-
10000
150-
7500
100-
5000
50-
2500
0
0
E,500n S
0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 Torque(mN-m)
