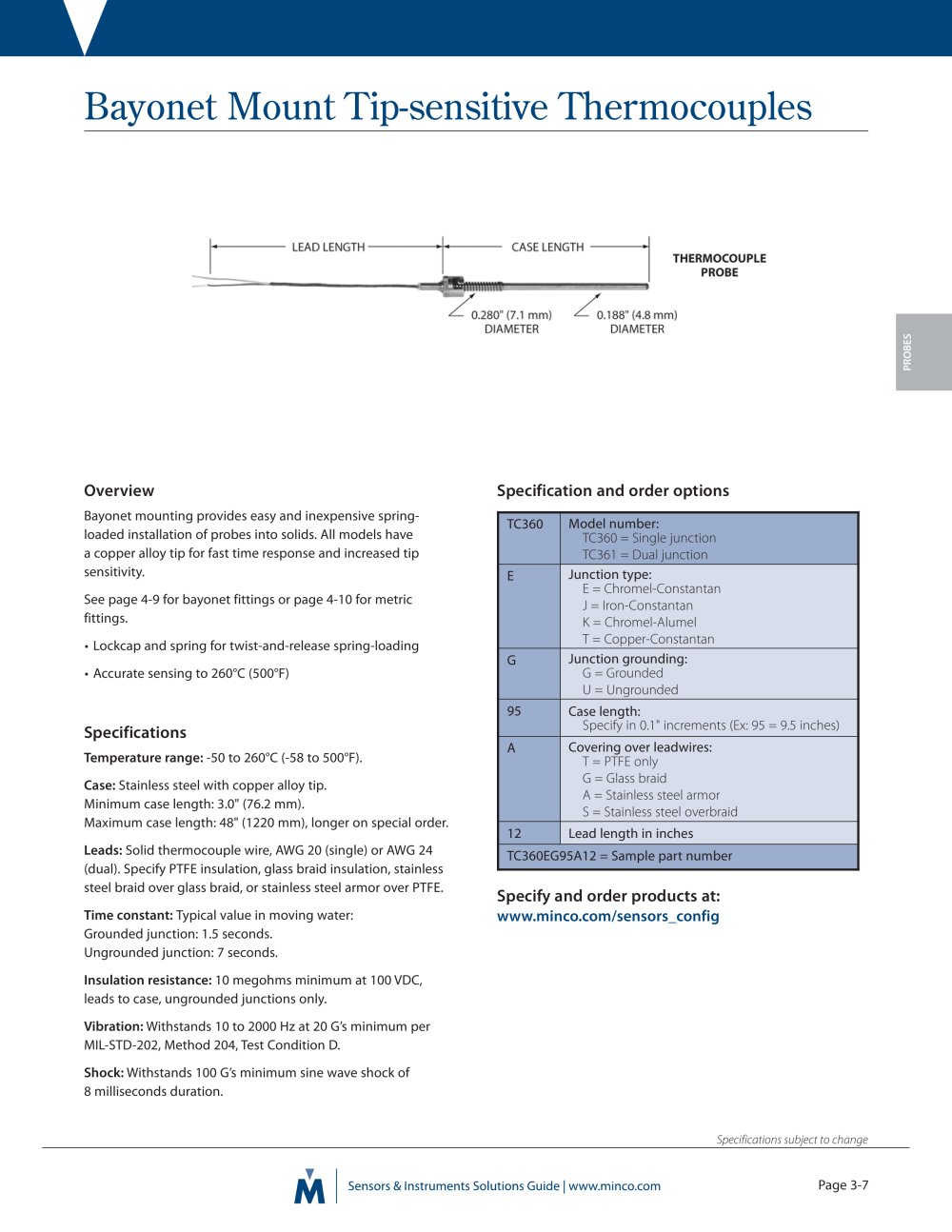

Bayonet Mount Tip-sensitive Thermocouples
PROBES Overview Specification and order options
Bayonet mounting provides easy and inexpensive spring-loaded installation of probes into solids. All models have a cop-
per alloy tip for fast time response and increased tip sensitivity.See page 4-9 for bayonet fittings or page 4-10 for metric fittings.•Lockcap and spring for twist-and-release spring-loading
•Accurate sensing to 260°C (500°F) TC360 Model number: TC360 = Single junctionTC361 = Dual junction E Junction type: E = Chromel-ConstantanJ = Iron-Constantan
K = Chromel-Alumel
T = Copper-Constantan G Junction grounding: G = GroundedU = Ungrounded
Specifications
95 Case length: Specify in 0.1" increments (Ex: 95 = 9.5 inches) Temperature range: -50 to 260°C (-58 to 500°F). A Covering over leadwires: Case: Stainless steel with
copper alloy tip.Minimum case length: 3.0" (76.2 mm).
Maximum case length: 48" (1220 mm), longer on special order. T = PTFE onlyG = Glass braid
A = Stainless steel armor
S = Stainless steel overbraid Leads: Solid
thermocouple wire, AWG 20 (single) or AWG 24(dual). Specify PTFE insulation, glass braid insulation, stainless
steel braid over glass braid, or stainless steel armor over PTFE. Time constant: Typical value in moving water:Grounded junction: 1.5 seconds.
Ungrounded junction: 7 seconds. 12 Lead length in inches Insulation resistance: 10 megohms minimum at 100 VDC,leads to case, ungrounded junctions only. TC360EG95A12 = Sample part number Vibration: Withstands 10 to 2000 Hz at 20 G’s minimum perMIL-STD-202, Method 204, Test Condition D.
Specify and order products at:
www.minco.com/sensors_config
Shock: Withstands 100 G’s minimum sine wave shock of 8 milliseconds duration.
Specifications subject to change |
Page 3-7
