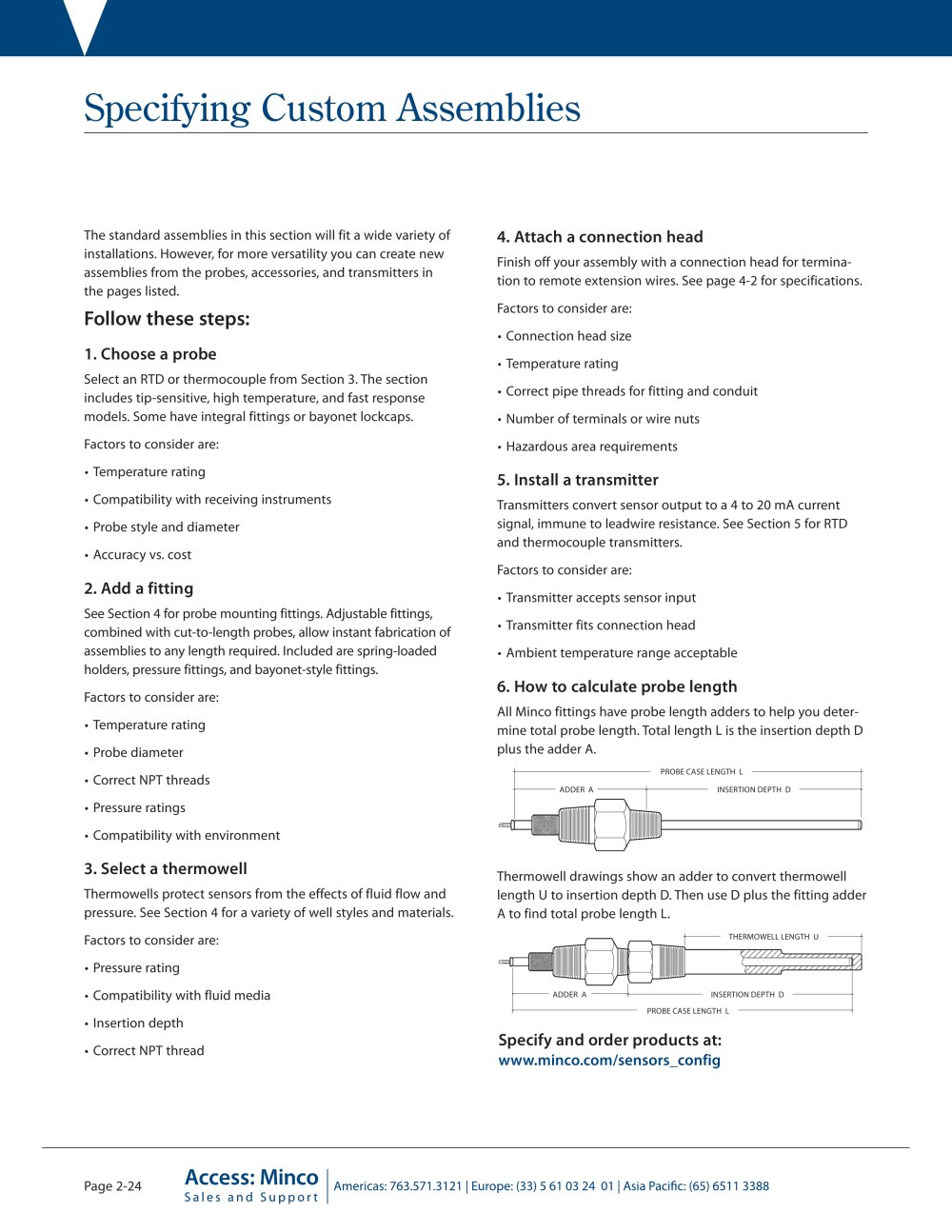

Specifying Custom Assemblies
The standard assemblies in this section will fit a wide variety of installations. However, for more versatility you can create new assemblies from the probes, accessories, and transmitters in the pages listed.
Follow these steps:
1. Choose a probe
Select an RTD or thermocouple from Section 3. The section includes tip-sensitive, high temperature, and fast response models. Some have integral fittings or bayonet lockcaps.
Factors to consider are:
• Temperature rating
• Compatibility with receiving instruments
• Probe style and diameter
• Accuracy vs. cost
2. Add a fitting
See Section 4 for probe mounting fittings. Adjustable fittings, combined with cut-to-length probes, allow instant fabrication of assemblies to any length required. Included are spring-loaded holders, pressure fittings, and bayonet-style fittings.
Factors to consider are:
• Temperature rating
• Probe diameter
• Correct NPT threads
• Pressure ratings
• Compatibility with environment
3. Select a thermowell
Thermowells protect sensors from the effects of fluid flow and pressure. See Section 4 for a variety of well styles and materials.
Factors to consider are:
• Pressure rating
• Compatibility with fluid media
• Insertion depth
• Correct NPT thread
4. Attach a connection head
Finish off your assembly with a connection head for termina­tion to remote extension wires. See page 4-2 for specifications.
Factors to consider are:
• Connection head size
• Temperature rating
• Correct pipe threads for fitting and conduit
• Number of terminals or wire nuts
• Hazardous area requirements
5. Install a transmitter
Transmitters convert sensor output toa4to20mAcurrent signal, immune to leadwire resistance. See Section 5 for RTD and thermocouple transmitters.
Factors to consider are:
• Transmitter accepts sensor input
• Transmitter fits connection head
• Ambient temperature range acceptable
6. How to calculate probe length
All Minco fittings have probe length adders to help you deter­mine total probe length. Total length L is the insertion depth D plus the adder A.
PROBE CASE LENGTH L
INSERTION DEPTH D
Thermowell drawings show an adder to convert thermowell length U to insertion depth D. Then use D plus the fitting adder A to find total probe length L.
=n \
Specify and order products at: www.minco.com/sensors_config
Page 2-24 ACCeSS! Ml PI CO Americas: 763.571.3121 | Europe: (33) 5 61 03 24 01 | Asia Pacific: (65) 6511 3388
