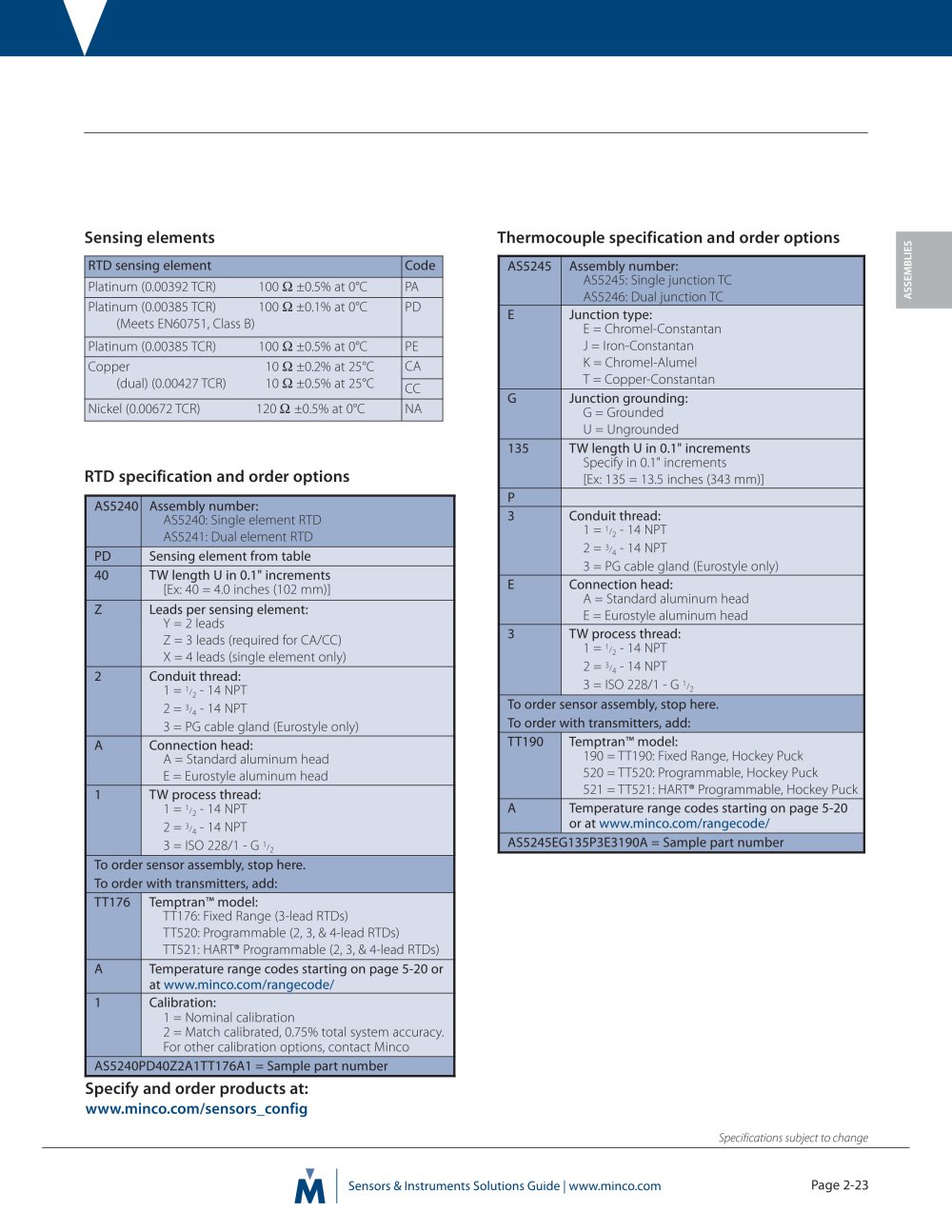

Sensing elements
Thermocouple specification and order options
i
2
AS5245
Assembly number:
AS5245: Single junction TC AS5246: Dual junction TC
E
Junction type:
E = Chromel-Constantan J = Iron-Constantan K = Chromel-Alumel T = Copper-Constantan
G
Junction grounding:
G = Grounded U = Ungrounded
135
TW length U in 0.1" increments
Specify in 0.1" increments
[Ex: 135 = 13.5 inches (343 mm)]
P
3
Conduit thread:
1=1/2 -14NPT
2 = 3/4-14NPT
3 = PG cable gland (Eurostyle only)
E
Connection head:
A = Standard aluminum head E = Eurostyle aluminum head
3
TW process thread:
1=1/2 -14NPT 2=3/3 -14NPT
3 = ISO 228/1 - G 1/2
To order sensor assembly, stop here. To order with transmitters, add:
TT190
Temptran™ model:
190=TT190, standard 230=TT230, rangeable
A
Temperature range codes on page 5-16 or at www.minco.com/rangecode/
AS5245EG135P3E3190A = Sample part number
RTD sensing element
Code
Platinum (0.00392 TCR)
100 Q ±0.5% at 0°C
PA
Platinum (0.00385 TCR)
100 Q ±0.1% at 0°C
PD
(Meets EN60751, Class B)
Platinum (0.00385 TCR)
100 Q ±0.5% at 0°C
PE
Copper
10 Q ±0.2% at 25°C
CA
(dual) (0.00427 TCR)
10 Q ±0.5% at 25°C
CC
Nickel (0.00672 TCR)
120 Q ±0.5% at 0°C
NA
RTD specification and order options
AS5240
Assembly number:
AS5240: Single element RTD AS5241: Dual element RTD
PD
Sensing element from table
40
TW length U in 0.1" increments
[Ex: 40 =4.0 inches (102 mm)]
Z
Leads per sensing element:
Y = 2 leads
Z = 3 leads (required for CA/CC) X = 4 leads (single element only)
2
Conduit thread:
1= 1/2 - 14 NPT
2 = 3/4- 14NPT
3 = PG cable gland (Eurostyle only)
A
Connection head:
A = Standard aluminum head E = Eurostyle aluminum head
1
TW process thread:
1=1/2 - 14 NPT 2=3/4 - 14 NPT
3 = ISO 228/1 - G 1/2
To order sensor assembly, stop here. To order with transmitters, add:
TT176
Temptran™ model:
TT176: 3-lead RTDs
TT676: 3-lead RTDs, match calibrated
A
Temperature range codes on page 5-16 or at www.minco.com/rangecode/
AS5240PD40Z2A1TT176A = Sample part number
Specify and order products at: www.minco.com/sensors_config
Specifications subject to change
Page 2-23
Sensors & Instruments Solutions Guide I www.minco.com
