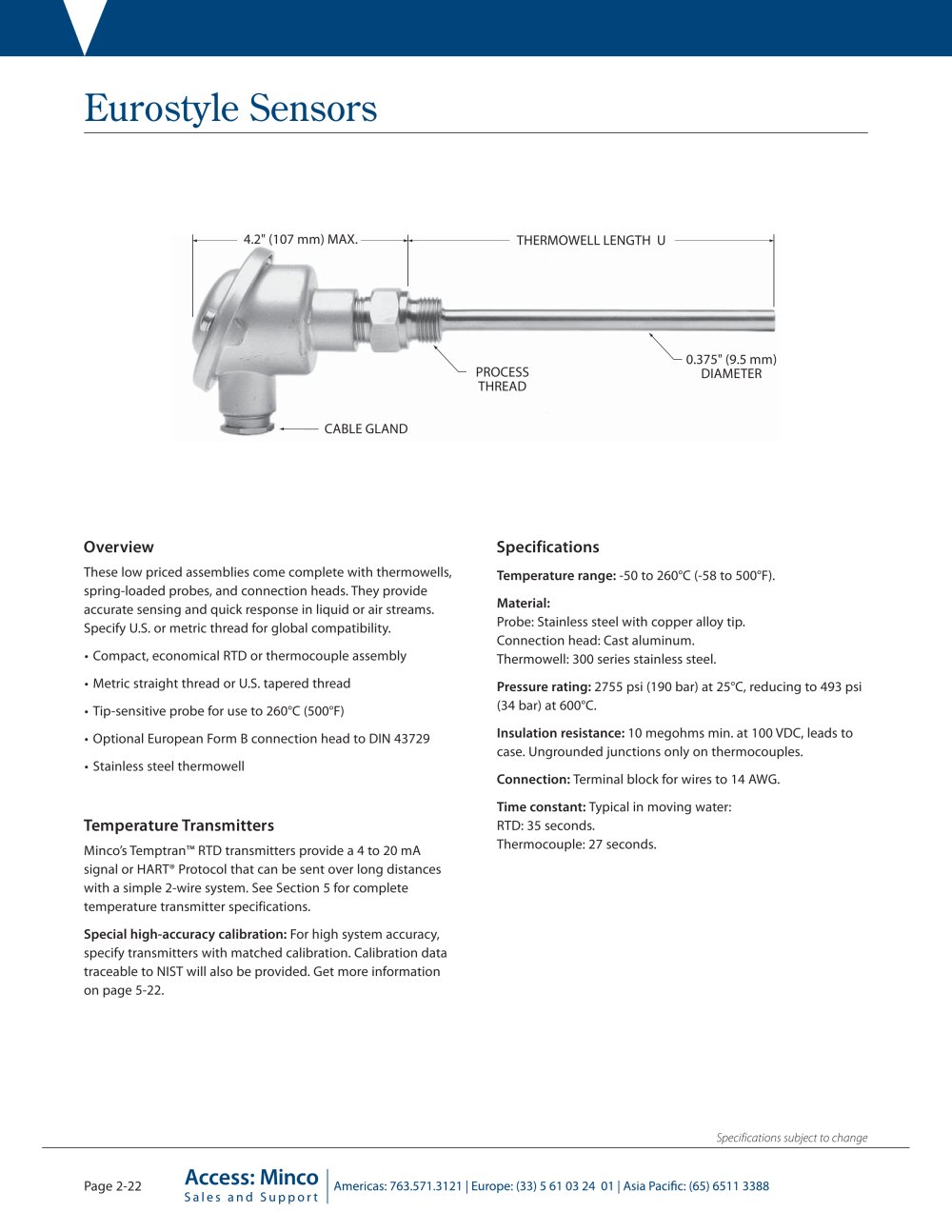

Eurostyle Sensors
Specifications
Temperature range: -50 to 260°C (-58 to 500°F). Material:
Probe: Stainless steel with copper alloy tip. Connection head: Cast aluminum. Thermowell: 300 series stainless steel.
Pressure rating: 2755 psi (190 bar) at 25°C, reducing to 493 psi (34 bar) at 600°C.
Insulation resistance: 10 megohms min.at 100 VDC, leads to case. Ungrounded junctions only on thermocouples.
Connection: Terminal block for wires to 14 AWG.
Time constant: Typical in moving water: RTD: 35 seconds. Thermocouple: 27 seconds.
Overview
These low priced assemblies come complete with thermowells, spring-loaded probes, and connection heads.They provide accurate sensing and quick response in liquid or air streams. Specify U.S. or metric thread for global compatibility.
• Compact, economical RTD or thermocouple assembly
• Metric straight thread or U.S. tapered thread
• Tip-sensitive probe for use to 260°C (500°F)
• Optional European Form B connection head to DIN 43729
• Stainless steel thermowell
Minco's Temptran™ RTD transmitters providea4to20mA signal that can be sent over long distances with a simple 2-wire system. Add any Minco model transmitter (except electrically isolated models). See Section 5 for complete details and ordering information.
Special high-accuracy calibration: For guaranteed system accuracy of ± 0.75% of temperature span, specify transmitters with high accuracy calibration. Calibration data traceable to NIST will also be provided. Get more information on page 5-18.
Specifications subject to change
Page 2-22 ACCÔSSI MllICO Americas: 763.571.312i | Europe: (33) 5 61 03 24 01 | Asia Pacific: (65) 6511 3388
