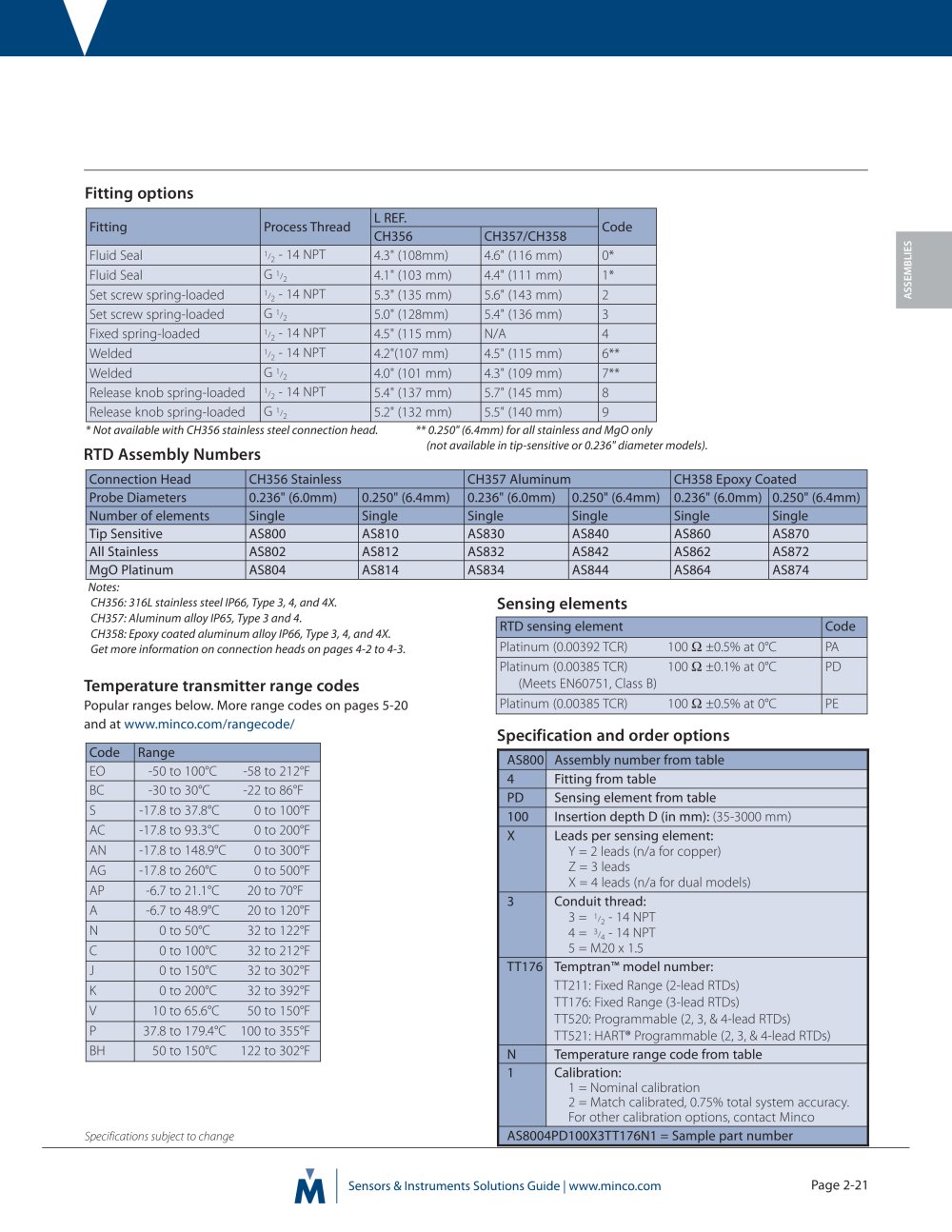

| | | Fitting options | | |
| | | |
| | | | | | | | | | | | | Fitting | Process Thread | L REF. | Code | | | | CH356 | CH357/CH358 | | | | Fluid Seal | '/2-14NPT | 4.3" (108mm) | 4.6" (116 mm) | 0* | | | | Fluid Seal | G'/2 | 4.1" (103 mm) | 4.4" (111 mm) | 1* | | | | Set screw spring-loaded | 1/2-14NPT | 5.3" (135 mm) | 5.6" (143 mm) | 2 | | | | Set screw spring-loaded | G1/2 | 5.0" (128mm) | 5.4" (136 mm) | 3 | | | | Fixed spring-loaded | 1/2-14NPT | 4.5" (115 mm) | 4.9" (123 mm) | 4 | | | | Welded | 1/2-14NPT | 4.2"(107 mm) | 4.5" (115 mm) | 6** | | | | Welded | G1/2 | 4.0" (101 mm) | 4.3" (109 mm) | 7** | | | | Release knob spring-loaded | 1/2-14NPT | 5.4" (137 mm) | 5.7" (145 mm) | 8 | | | | Release knob spring-loaded | G1/2 | 5.2" (132 mm) | 5.5" (140 mm) | 9 | | | | | | | | | | | | |
| | | 2 | | |
| | | |
| | | |
| | | *Not available with CH356 stainless steel connection head. ** 0.250" (6.4mm) for all stainless and MgO only. RTD Assembly Numbers | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | Connection Head | CH356 Stainless | CH357 Aluminum | CH358 Epoxy Coated | | | | Probe Diameters | 0.236" (6.0mm) | 0.250" (6.4mm) | 0.236" (6.0mm) | 0.250" (6.4mm) | 0.236" (6.0mm) | 0.250" (6.4mm) | | | | Number of elements | Single | Dual | Single | Dual | Single | Dual | Single | Dual | Single | Dual | Single | Dual | | | | Tip Sensitive | AS800 | AS801 | AS810 | AS811 | AS830 | AS831 | AS840 | AS841 | AS860 | AS861 | AS870 | AS871 | | | | All Stainless | AS802 | AS803 | AS812 | AS813 | AS832 | AS833 | AS842 | AS843 | AS862 | AS863 | AS872 | AS873 | | | | MgO Platinum | AS804 | AS805 | AS814 | AS815 | AS834 | AS835 | AS844 | AS845 | AS864 | AS865 | AS874 | AS875 | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Notes: CH356:3161 stainless steel IP66, Type 3,4, and 4X. CH357: Aluminum alloy IP65, Type 3 and 4. CH358: Epoxy coated aluminum alloy IP66, Type 3,4, and 4X. Get more information on connection heads on pages 4-2 to 4-3. Popular ranges below. More range codes on pages 5-16 and at www.minco.com/rangecode/ | | |
| | | Sensing elements | | |
| | | |
| | | | | | | | | | | RTD sensing element | Code | | | | Platinum (0.00392 TCR) | 100 Q ±0.5% at 0°C | PA | | | | Platinum (0.00385 TCR) | 100 Q ±0.1% at 0°C | PD | | | | (Meets EN60751, Class B) | | | | | | Platinum (0.00385 TCR) | 100 Q ±0.5% at 0°C | PE | | | | | | | | | | |
| | | |
| | | Specification and order options | | |
| | | |
| | | | | | | | | | Code | Range | | | | EO | -50to100°C -58to212°F | | | | BC | -30 to 30°C -22 to 86°F | | | | S | -17.8 to 37.8°C 0to100°F | | | | AC | -17.8 to 93.3°C 0to 200°F | | | | AN | -17.8 to 148.9°C 0to 300°F | | | | AG | -17.8to 260°C 0to 500°F | | | | AP | -6.7to21.1°C 20to70°F | | | | A | -6.7 to 48.9°C 20 to 120°F | | | | N | 0to50°C 32to122°F | | | | C | 0to100°C 32to212°F | | | | J | 0 to 150°C 32 to 302°F | | | | K | 0 to 200°C 32 to 392°F | | | | V | 10to65.6°C 50to150°F | | | | P | 37.8 to 179.4°C 100to 355°F | | | | BH | 50 to 150°C 122 to 302°F | | | | | | | | | |
| | | |
| | | | | | | | | | AS800 | Assembly number from table | | | | 4 | Fitting from table | | | | PD | Sensing element from table | | | | 100 | Insertion depth D (in mm): (35-3000 mm) | | | | X | Leads per sensing element: Y = 2 leads (n/a for copper) Z = 3 leads X = 4 leads (n/a for dual models) | | | | 3 | Conduit thread: 3= 1/2-14NPT 4= 3/4-14NPT 5 =M20x 1.5 | | | | TT676 | Temptran™ model number: TT211: 2-lead RTDs TT176: 3-lead RTDs TT711: 2-lead RTDs, match calibrated TT676: 3-lead RTDs, match calibrated | | | | N | Temperature range code from table | | | | AS8004PD100X3TT176N = Sample part number | | | | | | | | | | |
| | | |
| | | Specifications subject to change | | |
| | | |
| | | |
