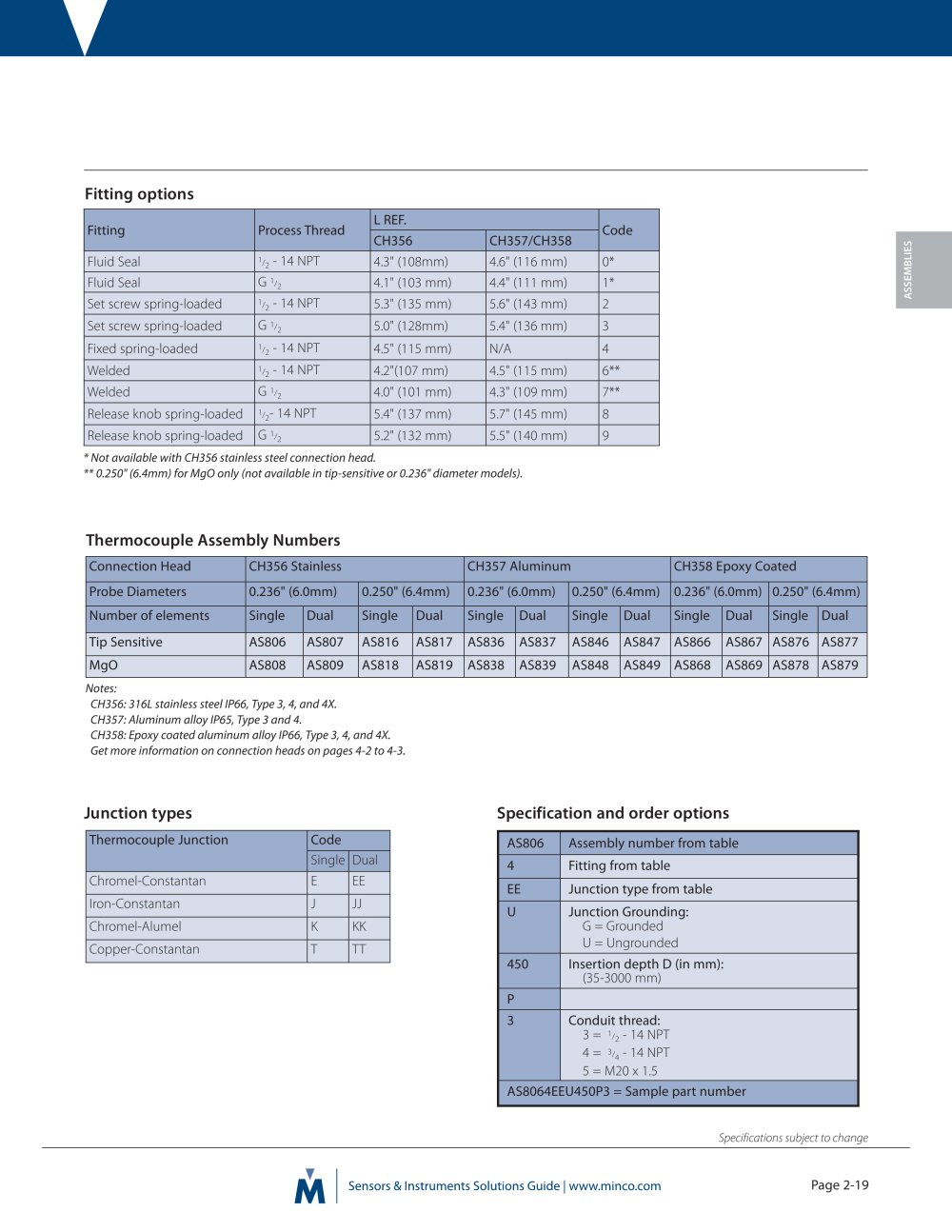

| | | Fitting options | | |
| | | |
| | | | | | | | | | | | | Fitting | Process Thread | L REF. | Code | | | | CH356 | CH357/CH358 | | | | Fluid Seal | '/2-14NPT | 4.3" (108mm) | 4.6" (116 mm) | 0* | | | | Fluid Seal | G 1/2 | 4.1" (103 mm) | 4.4" (111 mm) | 1* | | | | Set screw spring-loaded | 1/2-14NPT | 5.3" (135 mm) | 5.6" (143 mm) | 2 | | | | Set screw spring-loaded | G1/2 | 5.0" (128mm) | 5.4" (136 mm) | 3 | | | | Fixed spring-loaded | 1/2-14NPT | 4.5" (115 mm) | 4.9" (123 mm) | 4 | | | | Welded | 1/2-14NPT | 4.2"(107 mm) | 4.5" (115 mm) | 6** | | | | Welded | G 1/2 | 4.0" (101 mm) | 4.3" (109 mm) | 7** | | | | Release knob spring-loaded | 1/2-14NPT | 5.4" (137 mm) | 5.7" (145 mm) | 8 | | | | Release knob spring-loaded | G 1/2 | 5.2" (132 mm) | 5.5" (140 mm) | 9 | | | | | | | | | | | | |
| | | |
| | | *Not available with CH356 stainless steel connection head. ** 0.250" (6.4mm) for all stainless and MgO only. | | |
| | | |
| | | Thermocouple Assembly Numbers | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | Connection Head | CH356 Stainless | CH357 Aluminum | CH358 Epoxy Coated | | | | Probe Diameters | 0.236" (6.0mm) | 0.250" (6.4mm) | 0.236" (6.0mm) | 0.250" (6.4mm) | 0.236" (6.0mm) | 0.250" (6.4mm) | | | | Number of elements | Single | Dual | Single | Dual | Single | Dual | Single | Dual | Single | Dual | Single | Dual | | | | Tip Sensitive | AS806 | AS807 | AS816 | AS817 | AS836 | AS837 | AS846 | AS847 | AS866 | AS867 | AS876 | AS877 | | | | MgO | AS808 | AS809 | AS818 | AS819 | AS838 | AS839 | AS848 | AS849 | AS868 | AS869 | AS878 | AS879 | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Notes: CH356:3161 stainless steel IP66, Type 3,4, and 4X. CH357: Aluminum alloy IP65, Type 3 and 4. CH358: Epoxy coated aluminum alloy IP66, Type 3,4, and 4X. Get more information on connection heads on pages 4-2 to 4-3. | | |
| | | |
| | | Specification and order options | | |
| | | Junction types | | |
| | | |
| | | |
| | | | | | | | | | AS806 | Assembly number from table | | | | 4 | Fitting from table | | | | EE | Junction type from table | | | | U | Junction Grounding: G = Grounded U = Ungrounded | | | | 450 | Insertion depth D (in mm): (35-3000 mm) | | | | P | | | | | 3 | Conduit thread: 3= '/2-14NPT 4= 3/4-14NPT 5 = M20x 1.5 | | | | AS8064EEU450P3 = Sample part number | | | | | | | | | |
| | | | | | | | | | | Thermocouple Junction | Code | | | | | Single | Dual | | | | Chromel-Constantan | E | EE | | | | Iron-Constantan | J | JJ | | | | Chromel-Alumel | K | KK | | | | Copper-Constantan | T | TT | | | | | | | | | | |
| | | |
| | Order thermocouple transmitters separately. See section 5 for details. | | |
| | | Specifications subject to change | | |
| | | |
| | | |
