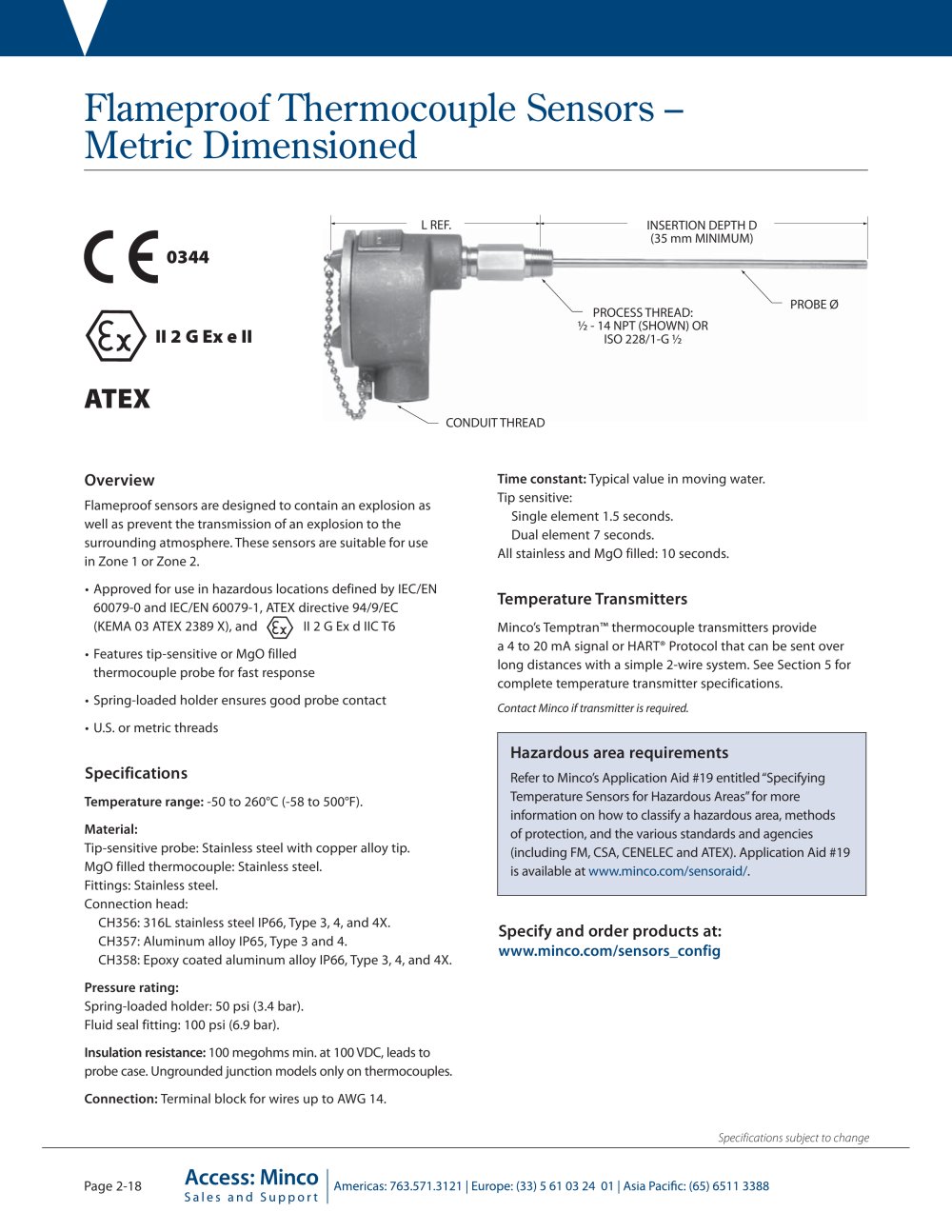

| | | Flameproof Thermocouple Sensors Metric Dimensioned | | |
| | | |
| | | INSERTION DEPTH D (35 mm MINIMUM) | | |
| | | C€ | | |
| | | |
| | | 0344 | | |
| | | |
| | | |
| | | PROBE 0 | | |
| | | PROCESSTHREAD: V2-14 NPT (SHOWN) OR ISO 228/1-G Vi | | |
| | | |
| | | II 2 G EEx d IIC T6 | | |
| | | |
| | | |
| | | ATEX | | |
| | | |
| | | CONDUIT THREAD | | |
| | | |
| | | Time constant:Typical value in moving water. Tip sensitive: Single element 1.5 seconds. Dual element 7 seconds. All stainless and MgO filled: 10 seconds. Minco'sTemptran™ thermocouple transmitters provide a 4 to 20 mA signal that can be sent over long distances with a simple 2-wire system. See Section 5 for complete details and ordering information. Note: Order thermocouple TempTran™ transmitters separately | | |
| | | Overview Flameproof sensors are designed to contain an explosion as well as prevent the transmission of an explosion to the surrounding atmosphere.These sensors are suitable for use in Zone 1 or Zone 2. • Approved for use in hazardous locations defined by IEC/EN 60079-0 and IEC/EN 60079-1, ATEX directive 94/9/EC (KEMA 03 ATEX 2389), and <£3\ II 2 G EEx d IICT6 | | |
| | | |
| | | Features tip-sensitive, all stainless or MgO filled thermocouple probe for fast response Spring-loaded holder ensures good probe contact U.S. or metric threads | | |
| | | |
| | | |
| | | | | |
| | Specifications Tip-sensitive probe: Stainless steel with copper alloy tip. MgO filled thermocouple: Stainless steel. Fittings: Stainless steel. Connection head: CH356: 316L stainless steel IP66,Type 3,4, and 4X. CH357: Aluminum alloy IP65,Type 3 and 4. | | Hazardous area requirements Refer to Minco's Application Aid #19 entitled "Specifying Temperature sensors for Hazardous Areas"for more information on how to classify a hazardous area, methods of protection, and the various standards and agencies (including FM, CSA, CENELEC and ATEX). Application Aid #19 is available at www.minco.com/sensoraid/. | | |
| | | |
| | | |
| | | CH358: Epoxy coated aluminum alloy IP66,Type 3,4, and 4X. Pressure rating: Spring-loaded holder: 50 psi (3.4 bar). Specify and order products at: Fluid seal fitting: 100 psi (6.9 bar). www.minco.com/sensors_config Insulation resistance: 100 megohms min. at 100 VDC, leads to probe case. Ungrounded junction models only on thermocouples. Connection: Terminal block for wires up to AWG 14. | | |
| | | |
| | | Specifications subject to change | | |
| | | |
