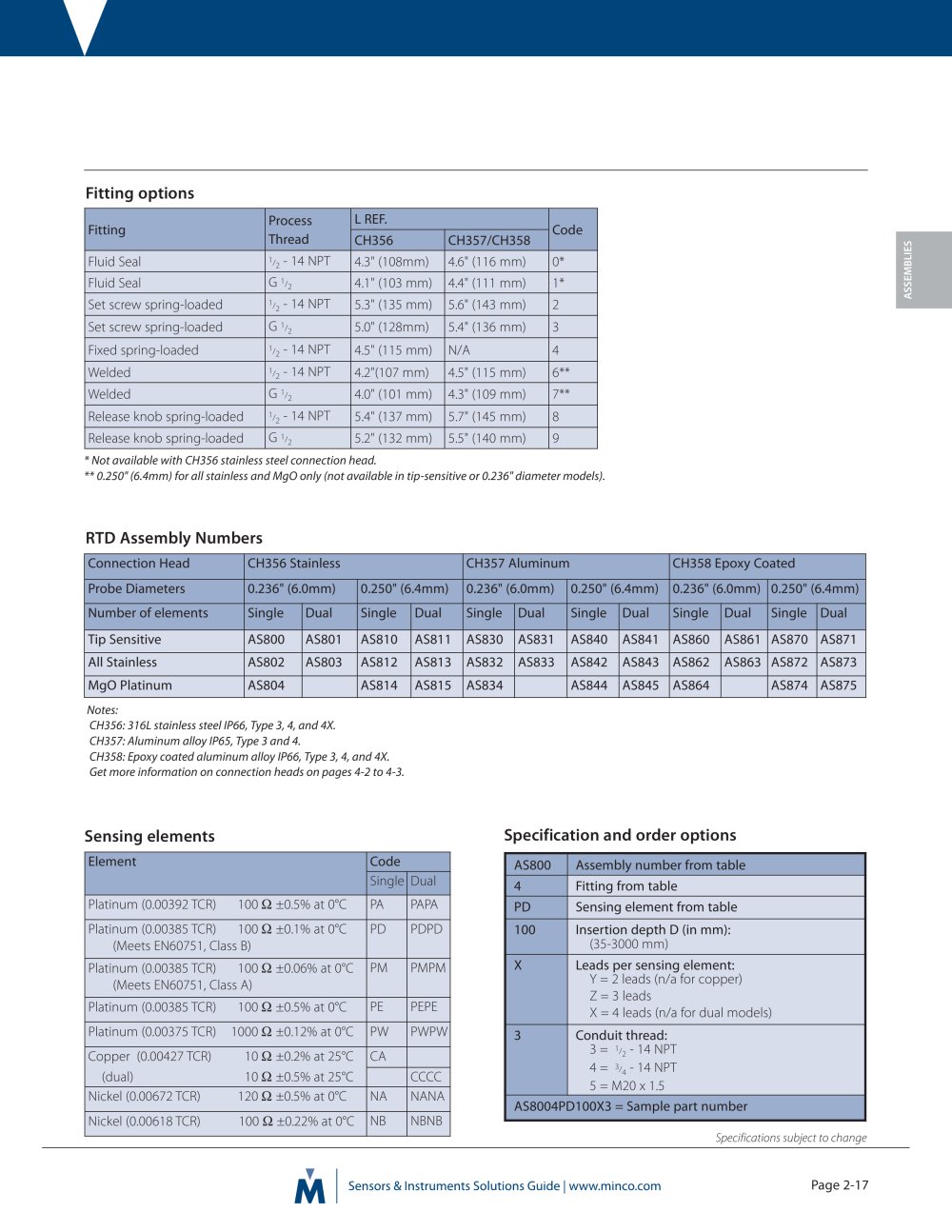

| | | Fitting options | | |
| | | |
| | | | | | | | | | | | | Fitting | Process Thread | L REF. | Code | | | | CH356 | CH357/CH358 | | | | Fluid Seal | V2- 14NPT | 4.3" (108mm) | 4.6" (116 mm) | 0* | | | | Fluid Seal | G'/2 | 4.1" (103 mm) | 4.4" (111 mm) | 1* | | | | Set screw spring-loaded | 1/2- 14NPT | 5.3" (135 mm) | 5.6" (143 mm) | 2 | | | | Set screw spring-loaded | G1/2 | 5.0" (128mm) | 5.4" (136 mm) | 3 | | | | Fixed spring-loaded | 1/2- 14NPT | 4.5" (115 mm) | 4.9" (123 mm) | 4 | | | | Welded | 1/2- 14NPT | 4.2"(107 mm) | 4.5" (115 mm) | 6** | | | | Welded | G1/2 | 4.0" (101 mm) | 4.3" (109 mm) | 7** | | | | Release knob spring-loaded | 1/2- 14NPT | 5.4" (137 mm) | 5.7" (145 mm) | 8 | | | | Release knob spring-loaded | G1/2 | 5.2" (132 mm) | 5.5" (140 mm) | 9 | | | | | | | | | | | | |
| | | |
| | | *Not available with CH356 stainless steel connection head. ** 0.250" (6.4mm) for all stainless and MgO only. | | |
| | | |
| | | RTD Assembly Numbers | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | Connection Head | CH356 Stainless | CH357 Aluminum | CH358 Epoxy Coated | | | | Probe Diameters | 0.236" (6.0mm) | 0.250" (6.4mm) | 0.236" (6.0mm) | 0.250" (6.4mm) | 0.236" (6.0mm) | 0.250" (6.4mm) | | | | Number of elements | Single | Dual | Single | Dual | Single | Dual | Single | Dual | Single | Dual | Single | Dual | | | | Tip Sensitive | AS800 | AS801 | AS810 | AS811 | AS830 | AS831 | AS840 | AS841 | AS860 | AS861 | AS870 | AS871 | | | | All Stainless | AS802 | AS803 | AS812 | AS813 | AS832 | AS833 | AS842 | AS843 | AS862 | AS863 | AS872 | AS873 | | | | MgO Platinum | AS804 | AS805 | AS814 | AS815 | AS834 | AS835 | AS844 | AS845 | AS864 | AS865 | AS874 | AS875 | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Notes: CH356:316L stainless steel IP66, Type 3,4, and 4X. CH357: Aluminum alloy IP65, Type 3 and 4. CH358: Epoxy coated aluminum alloy IP66, Type 3,4, and 4X. Get more information on connection heads on pages 4-2 to 4-3. | | |
| | | |
| | | Specification and order options | | |
| | | Sensing elements | | |
| | | |
| | | |
| | | | | | | | | | AS800 | Assembly number from table | | | | 4 | Fitting from table | | | | PD | Sensing element from table | | | | 100 | Insertion depth D (in mm): (35-3000 mm) | | | | X | Leads per sensing element: Y = 2 leads (n/a for copper) Z = 3 leads X = 4 leads (n/a for dual models) | | | | 3 | Conduit thread: 3= 1/2-14NPT 4= 3/4-14NPT 5 = M20x 1.5 | | | | AS8004PD100X3 = Sample part number | | | | | | | | | |
| | | | | | | | | | | Element | Code | | | | Single | Dual | | | | Platinum (0.00392 TCR) 100 Q ±0.5% at 0°C | PA | PAPA | | | | Platinum (0.00385 TCR) 100 Q ±0.1%at0°C (Meets EN60751, Class B) | PD | PDPD | | | | Platinum (0.00385 TCR) 100 Q ±0.06% at 0°C (Meets EN60751, Class A) | PM | PMPM | | | | Platinum (0.00385 TCR) 100 Q ±0.5% at 0°C | PE | PEPE | | | | Platinum (0.00375 TCR) 1000 Q ±0.12% at0°C | PW | PWPW | | | | Copper (0.00427 TCR) 10 Q ±0.2% at 25°C (dual) (0.00427 TCR) 10 Q ±0.5% at 25°C | CA | | | | | | CCCC | | | | Nickel (0.00672 TCR) 120 Q ±0.5% at 0°C | NA | NANA | | | | Nickel (0.00618 TCR) 100 Q ±0.22% at 0°C | NB | NBNB | | | | | | | | | | |
| | | |
| | | |
| | | Specifications subject to change | | |
| | | |
| | | | Sensors & Instruments Solutions Guide I www.minco.com | | |
| | | Page 2-17 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | |
