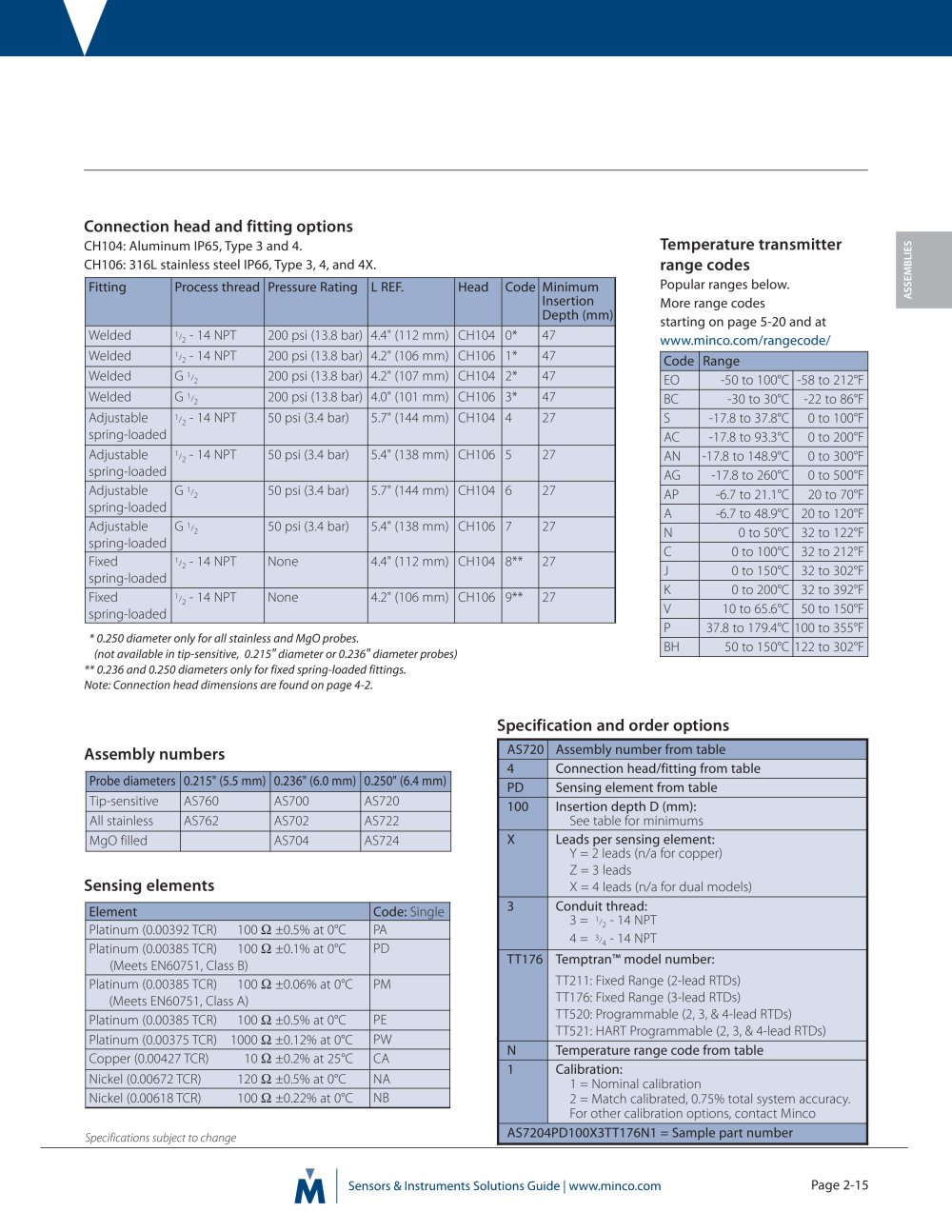

| | | Connection head and fitting options CH104: Aluminum IP65,Type 3 and 4. CH106: 316L stainless steel IP66,Type 3, 4, and 4X. | | |
| | | Popular ranges below. More range codes on page 5-16 and at www.minco.com/rangecode/ | | |
| | | |
| | | | | | | | | | | | | | Fitting | Process thread | Pressure Rating | L REF. | Head | Code | | | | Welded | '/2-14NPT | 200 psi (13.8 bar) | 4.4" (112 mm) | CH104 | 0* | | | | Welded | '/2-14NPT | 200 psi (13.8 bar) | 4.2" (106 mm) | CH106 | 1* | | | | Welded | G 72 | 200 psi (13.8 bar) | 4.2" (107 mm) | CH104 | 2* | | | | Welded | G 72 | 200 psi (13.8 bar) | 4.0" (101 mm) | CH106 | 3* | | | | Adjustable spring-loaded | 1/2-14NPT | 50 psi (3.4 bar) | 5.7" (144 mm) | CH104 | 4 | | | | Adjustable spring-loaded | 1/2-14NPT | 50 psi (3.4 bar) | 5.4" (138 mm) | CH106 | 5 | | | | Adjustable spring-loaded | G 72 | 50 psi (3.4 bar) | 5.7" (144 mm) | CH104 | 6 | | | | Adjustable spring-loaded | G 72 | 50 psi (3.4 bar) | 5.4" (138 mm) | CH106 | 7 | | | | Fixed spring-loaded | 1/2-14NPT | None | 4.4" (112 mm) | CH104 | 8** | | | | Fixed spring-loaded | 1/2-14NPT | None | 4.2" (106 mm) | CH106 | 9** | | | | | | | | | | | | | |
| | | 2 | | |
| | | |
| | | |
| | | | | | | | | | | Code | Range | | | | EO | -50 to 100°C | -58 to 212°F | | | | BC | -30 to 30°C | -22 to 86°F | | | | S | -17.8 to 37.8°C | 0to 100°F | | | | AC | -17.8 to 93.3°C | 0 to 200°F | | | | AN | -17.8 to 148.9°C | 0 to 300°F | | | | AG | -17.8 to 260°C | 0 to 500°F | | | | AP | -6.7 to 21.1°C | 20 to 70°F | | | | A | -6.7 to 48.9°C | 20 to 120°F | | | | N | 0 to 50°C | 32 to 122°F | | | | C | 0to 100°C | 32 to212°F | | | | J | 0to 150°C | 32 to 302°F | | | | K | 0 to 200°C | 32 to 392°F | | | | V | 10 to 65.6°C | 50 to 150°F | | | | P | 37.8 to 179.4°C | 100 to 355°F | | | | BH | 50 to 150°C | 122 to 302°F | | | | | | | | | | |
| | | |
| | | * 0.250 diameter only for all stainless and MgO probes. ** 0.236 and 0.250 diameters only for fixed spring-loaded fittings. Note: Connection head dimensions are found on page 4-2. | | |
| | | |
| | | |
| | | Assembly numbers | | Specification and order options | | |
| | | |
| | | |
| | | | | | | | | | AS720 | Assembly number from table | | | | 4 | Connection head/fitting from table | | | | PD | Sensing element from table | | | | 100 | Insertion depth D (in mm): (43-1219 mm) | | | | X | Leads per sensing element: Y = 2 leads (n/a for copper) Z = 3 leads X = 4 leads (n/a for dual models) | | | | 3 | Conduit thread: 3= 1/2-14NPT 4= 3/4-14NPT | | | | TT176 | Temptran™ model number: TT211: 2-lead RTDs TT176: 3-lead RTDs TT711: 2-lead RTDs, match calibrated TT676: 3-lead RTDs, match calibrated | | | | N | Temperature range code from table | | | | AS7204PD100X3TT176N = Sample part number | | | | | | | | | |
| | | | | | | | | | | | Probe diameters | 0.215" (5.5 mm) | 0.236" (6.0 mm) | 0.250" (6.4 mm) | | | | Tip-sensitive | AS760 | AS700 | AS720 | | | | All stainless | AS762 | AS702 | AS722 | | | | MgO filled | | AS704 | AS724 | | | | | | | | | | | |
| | | |
| | | Sensing elements | | |
| | | |
| | | | | | | | | | | Element | Code | | | | Single | Dual | | | | Platinum (0.00392 TCR) 100 Q ±0.5% at 0°C | PA | PAPA | | | | Platinum (0.00385 TCR) 100 Q ±0.1% at 0°C (Meets EN60751, Class B) | PD | PDPD | | | | Platinum (0.00385 TCR) 100 Q ±0.06% at 0°C (Meets EN60751, Class A) | PM | PMPM | | | | Platinum (0.00385 TCR) 100 Q ±0.5% at 0°C | PE | PEPE | | | | Platinum (0.00375 TCR) 1000 Q ±0.12% at 0°C | PW | PWPW | | | | Copper (0.00427 TCR) 10 Q ±0.2% at 25°C (dual) 10 Q ±0.5% at 25°C | CA | | | | | | CCCC | | | | Nickel (0.00672 TCR) 120 Q ±0.5% at 0°C | NA | NANA | | | | Nickel (0.00618TCR) 100 Q ±0.22% at 0°C | NB | NBNB | | | | | | | | | | |
| | | |
| | | |
| | | Specifications subject to change | | |
| | | |
