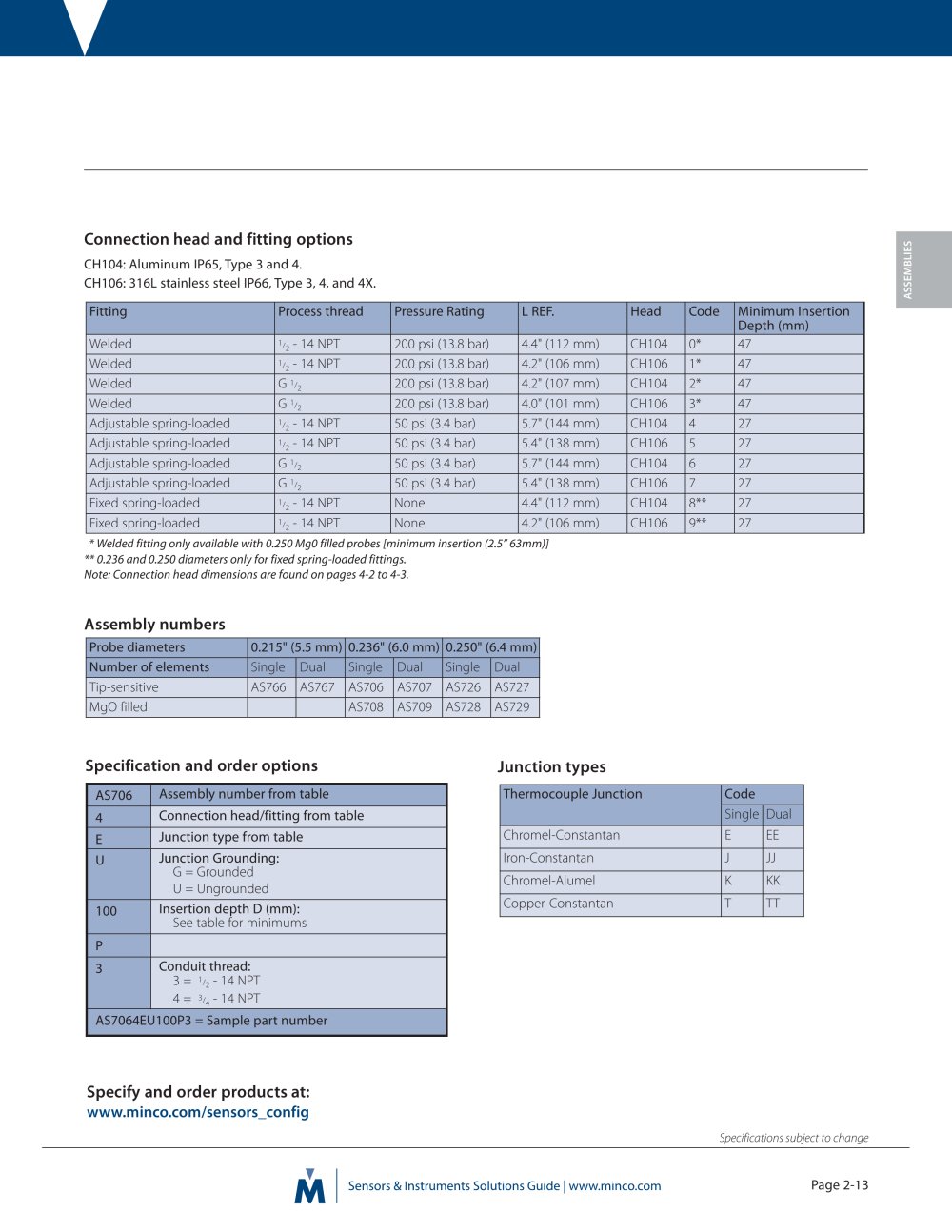

| | | Connection head and fitting options CH104: Aluminum IP65,Type 3 and 4. CH106: 316L stainless steel IP66,Type 3, 4, and 4X. | | |
| | | |
| | | | | | | | | | | | | | Fitting | Process thread | Pressure Rating | L REF. | Head | Code | | | | Welded | '/2-14NPT | 200 psi (13.8 bar) | 4.4" (112 mm) | CH104 | 0* | | | | Welded | '/2-14NPT | 200 psi (13.8 bar) | 4.2" (106 mm) | CH106 | 1* | | | | Welded | G 72 | 200 psi (13.8 bar) | 4.2" (107 mm) | CH104 | 2* | | | | Welded | G 72 | 200 psi (13.8 bar) | 4.0" (101 mm) | CH106 | 3* | | | | Adjustable spring-loaded | 1/2-14NPT | 50 psi (3.4 bar) | 5.7" (144 mm) | CH104 | 4 | | | | Adjustable spring-loaded | 1/2-14NPT | 50 psi (3.4 bar) | 5.4" (138 mm) | CH106 | 5 | | | | Adjustable spring-loaded | G 72 | 50 psi (3.4 bar) | 5.7" (144 mm) | CH104 | 6 | | | | Adjustable spring-loaded | G 72 | 50 psi (3.4 bar) | 5.4" (138 mm) | CH106 | 7 | | | | Fixed spring-loaded | 1/2-14NPT | None | 4.4" (112 mm) | CH104 | 8** | | | | Fixed spring-loaded | 1/2-14NPT | None | 4.2" (106 mm) | CH106 | 9** | | | | | | | | | | | | | |
| | | |
| | | * 0.250 diameter only for all stainless and MgO probes. ** 0.236 and 0.250 diameters only for fixed spring-loaded fittings. Note: Connection head dimensions are found on pages 4-2 to 4-3.. | | |
| | | |
| | | Assembly numbers | | |
| | | |
| | | | | | | | | | | | | | | Probe diameters | 0.215" (5.5 mm) | 0.236" (6.0 mm) | 0.250" (6.4 mm) | | | | Number of elements | Single | Dual | Single | Dual | Single | Dual | | | | Tip-sensitive | AS766 | AS767 | AS706 | AS707 | AS726 | AS727 | | | | MgO filled | | | AS708 | AS709 | AS728 | AS729 | | | | | | | | | | | | | | |
| | | |
| | | Specification and order options | | |
| | | Junction types | | |
| | | |
| | | |
| | | | | | | | | | AS706 | Assembly number from table | | | | 4 | Connection head/fitting from table | | | | E | Junction type from table | | | | U | Junction Grounding: G = Grounded U = Ungrounded | | | | 100 | Insertion depth D (in mm): (37-3000 mm) | | | | P | | | | | 3 | Conduit thread: 3= '/2-14NPT 4= 3/4-14NPT | | | | AS7064EU100P3 = Sample part number | | | | | | | | | | | | | | | | | Thermocouple Junction | Code | | | | Single | Dual | | | | Chromel-Constantan | E | EE | | | | Iron-Constantan | J | JJ | | | | Chromel-Alumel | K | KK | | | | Copper-Constantan | T | TT | | | | | | | | | | |
| | | |
| | Order thermocouple transmitters separately. See section 5 for details. | | |
| | | |
| | | Specify and order products at: www.minco.com/sensors_config | | |
| | | |
| | | Specifications subject to change | | |
| | | |
