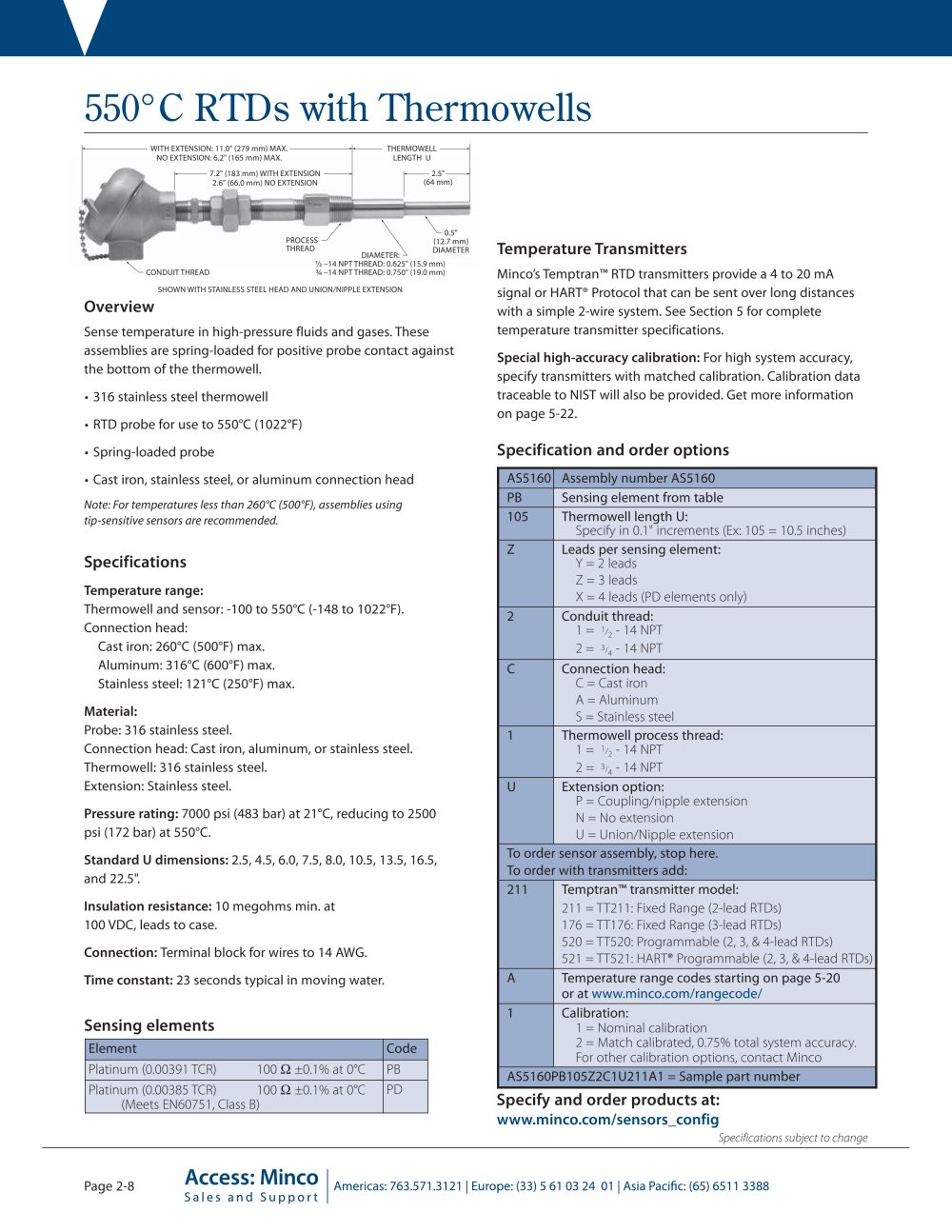

550°C RTDs with Thermowells

- WITH EXTENSION: 11.0" (279 mm) MAX.-NO EXTENSION: 6.2" (165 mm) MAX.

THERMOWELL -LENGTH U

2.5"-

(64 mm)

0.5"

PROCESS ^ \ (12.7 mm)

THREAD \ DIAMETER

DIAMETER:^ ^DIAMETER

% -14 NPTTHREAD: 0.625" (15.9 mm) % -14 NPTTHREAD: 0.750" (19.0 mm)

Industrial temperature transmitters

Minco's Temptran™ RTD transmitters provide a 4 to 20 mA signal that can be sent over long distances with a simple 2-wire system. Add any Minco model transmitter (except electrically isolated models). See Section 5 for complete details and ordering information.

Special high-accuracy calibration: For guaranteed system accuracy of ± 0.75% of temperature span, specify transmitters with high accuracy calibration. Calibration data traceable to NIST will also be provided. Get more information on page 5-18.

Specification and order options

- CONDUITTHREAD

SHOWN WITH STAINLESS STEEL HEAD AND UNION/NIPPLE EXTENSION

Overview

Sense temperature in high-pressure fluids and gases. These assemblies are spring-loaded for positive probe contact against the bottom of the thermowell.

• 316 stainless steel thermowell

• RTD probe for use to 550°C (1022°F)

• Spring-loaded probe

• Cast iron, stainless steel, or aluminum connection head

Note: For temperatures less than 260°C (500°F), assemblies using tip-sensitive sensors are recommended.

Specifications

Temperature range:

Thermowell and sensor: -100 to 550°C (-148 to 1022°F). Connection head:

Cast iron: 260°C (500°F) max.

Aluminum: 316°C (600°F) max.

Stainless steel: 121°C (250°F) max.

Material:

Probe: 316 stainless steel.

Connection head: Cast iron, aluminum, or stainless steel. Thermowell: 316 stainless steel. Extension: Stainless steel.

Pressure rating: 7000 psi (483 bar) at 21°C, reducing to 2500 psi (172 bar) at 550°C.

Standard U dimensions: 2.5,4.5, 6.0, 7.5,8.0,10.5,13.5,16.5, and 22.5".

Insulation resistance: 10 megohms min. at 100 VDC, leads to case.

Connection: Terminal block for wires to 14 AWG. Time constant: 23 seconds typical in moving water.


	AS5160	Assembly number AS5160
	PB	Sensing element from table
	105	Thermowell length U: Specify in 0.1" increments (Ex: 105 = 10.5 inches)
	Z	Leads per sensing element: Y = 2 leads Z = 3 leads X = 4 leads (PD elements only)
	2	Conduit thread: 1= ¹/2-l4NPT 2= ³/4-14NPT
	C	Connection head: C = Cast iron A = Aluminum S = Stainless steel
	1	Thermowell process thread: 1= ¹/2-14NPT 2= ³/4-14NPT
	U	Extension option: P = Coupling/nipple extension N = No extension U = Union/Nipple extension
	To order sensor assembly, stop here. To order with transmitters (2 or 3 leads), add:
	211	Temptran™ transmitter model: 211 = TT211: 2-lead RTDs 176=TT176: 3-lead RTDs 711= TT711: 2-lead RTDs, match calibrated 676 =TT676: 3-lead RTDs, match calibrated
	A	Temperature range codes on page 5-16 or at www.minco.com/rangecode/
	AS5160PB105Z2C1U211A = Sample part number

Sensing elements


	Element	Code
	Platinum (0.00391 TCR) 100 Q ±0.1% at 0°C	PB
	Platinum (0.00385 TCR) 100 Q ±0.1% at 0°C (Meets EN60751, Class B)	PD

Specify and order products at: www.minco.com/sensors_config

Specifications subject to change
