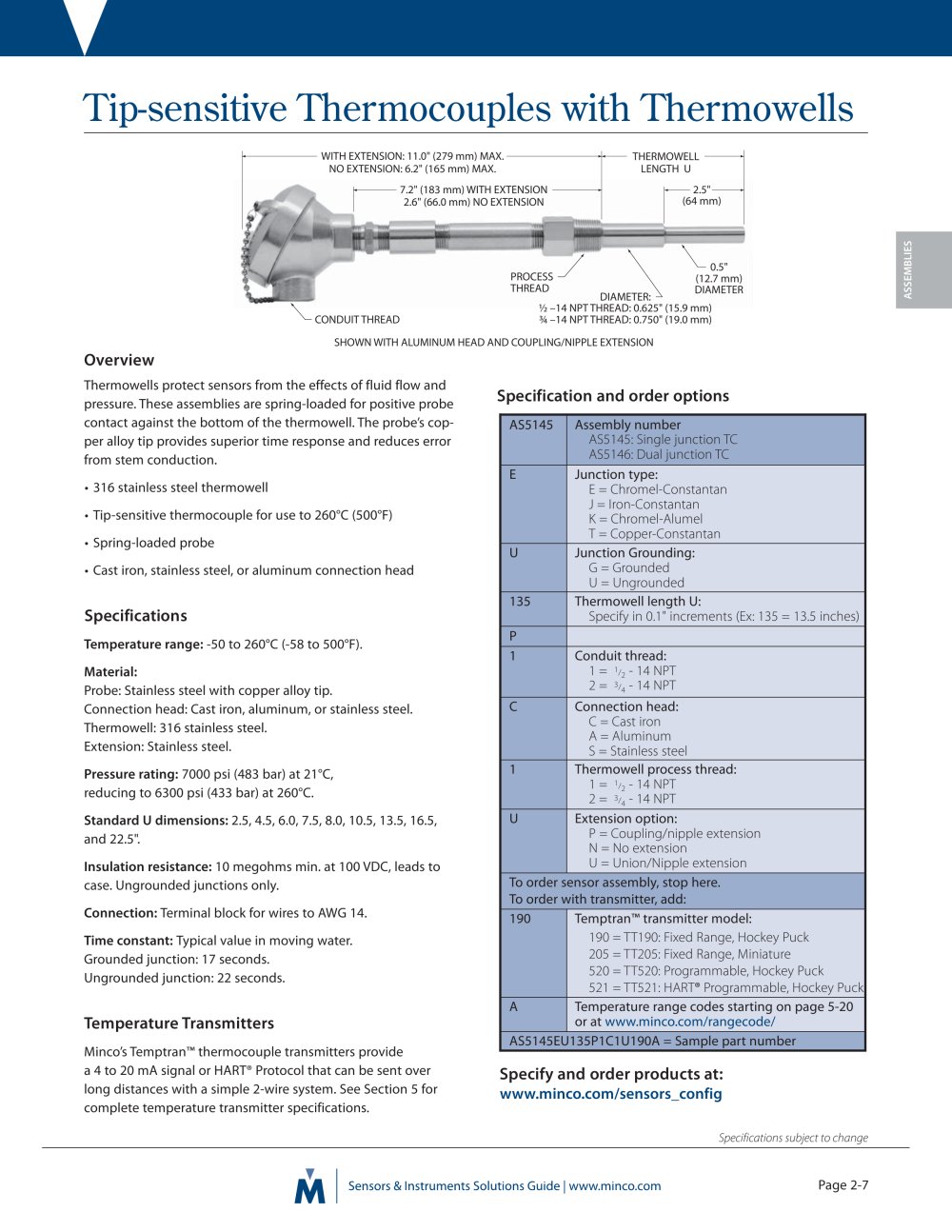

| Thermowells protect sensors from the effects of fluid flow and pressure. These assemblies are spring-loaded for positive probe contact against the bottom of the thermowell.The probe's copper alloy tip provides superior time response and reduces error from stem conduction. • 316 stainless steel thermowell • Tip-sensitive thermocouple for use to 260°C (500°F) • Spring-loaded probe • Cast iron, stainless steel, or aluminum connection head Specifications Temperature range: -50 to 260°C (-58 to 500°F). Material: Probe: Stainless steel with copper alloy tip. Connection head: Cast iron, aluminum, or stainless steel. Thermowell: 316 stainless steel. Extension: Stainless steel. Pressure rating: 7000 psi (483 bar) at 21°C, reducing to 6300 psi (433 bar) at 260°C. Standard U dimensions: 2.5, 4.5, 6.0, 7.5,8.0,10.5,13.5,16.5, and 22.5". Insulation resistance: 10 megohms min. at 100 VDC, leads to case. Ungrounded junctions only. Connection: Terminal block for wires to AWG 14. Time constant: Typical value in moving water. Grounded junction: 17 seconds. Ungrounded junction: 22 seconds. Minco'sTemptran™ thermocouple transmitters provide a 4 to 20 mA signal that can be sent over long distances with a simple 2-wire system. See Section 5 for complete details and ordering information. |
