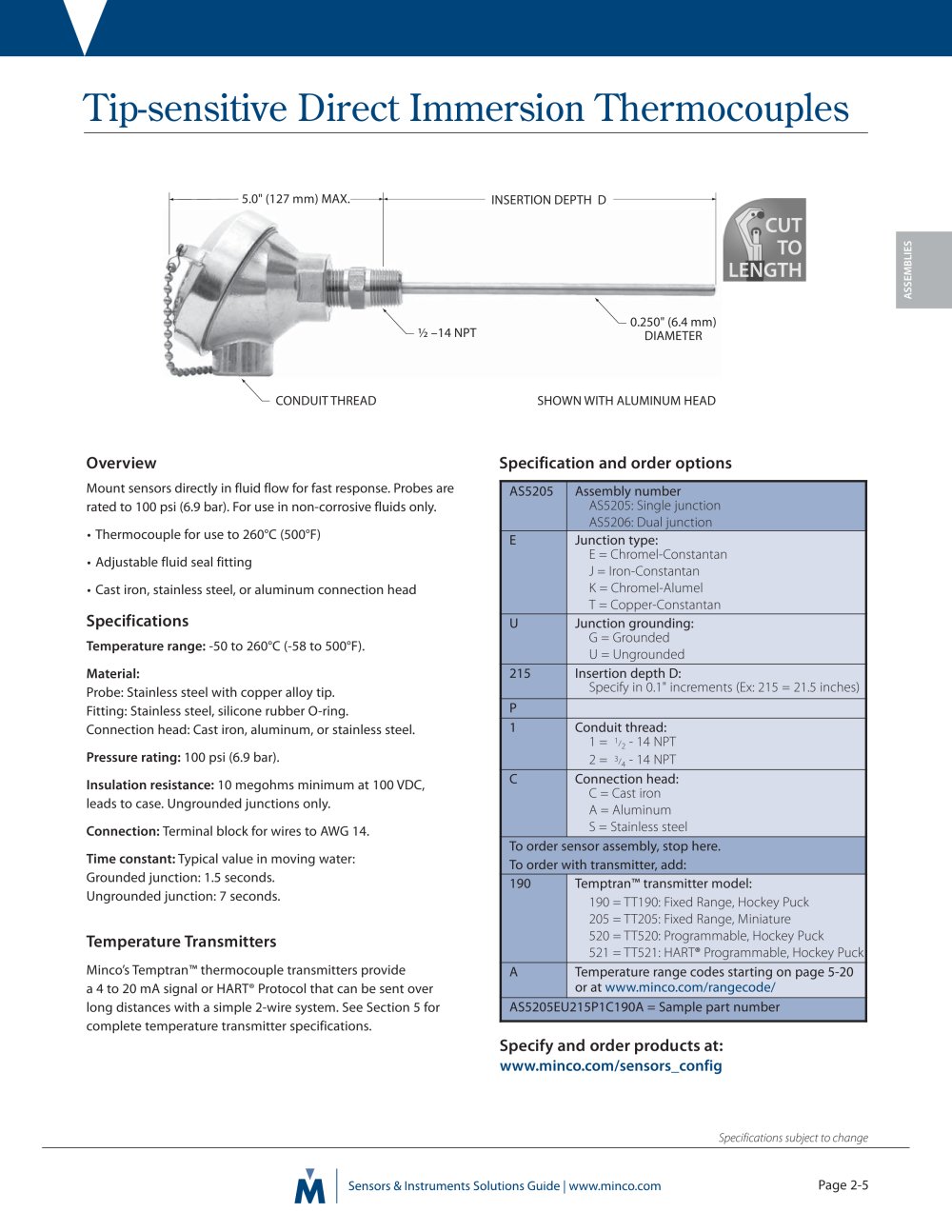

| Overview Mount sensors directly in fluid flow for fast response. Probes are rated to 100 psi (6.9 bar). For use in non-corrosive fluids only. • Thermocouple for use to 260°C (500°F) • Adjustable fluid seal fitting • Cast iron, stainless steel, or aluminum connection head Specifications Temperature range: -50 to 260°C (-58 to 500°F). Material: Probe: Stainless steel with copper alloy tip. Fitting: Stainless steel, silicone rubber O-ring. Connection head: Cast iron, aluminum, or stainless steel. Pressure rating: 100 psi (6.9 bar). Insulation resistance: 10 megohms minimum at 100 VDC, leads to case. Ungrounded junctions only. Connection: Terminal block for wires to AWG 14. Time constant: Typical value in moving water: Grounded junction: 1.5 seconds. Ungrounded junction: 7 seconds. Minco'sTemptran™ thermocouple transmitters provide a 4 to 20 mA signal that can be sent over long distances with a simple 2-wire system. See Section 5 for complete details and ordering information. |
