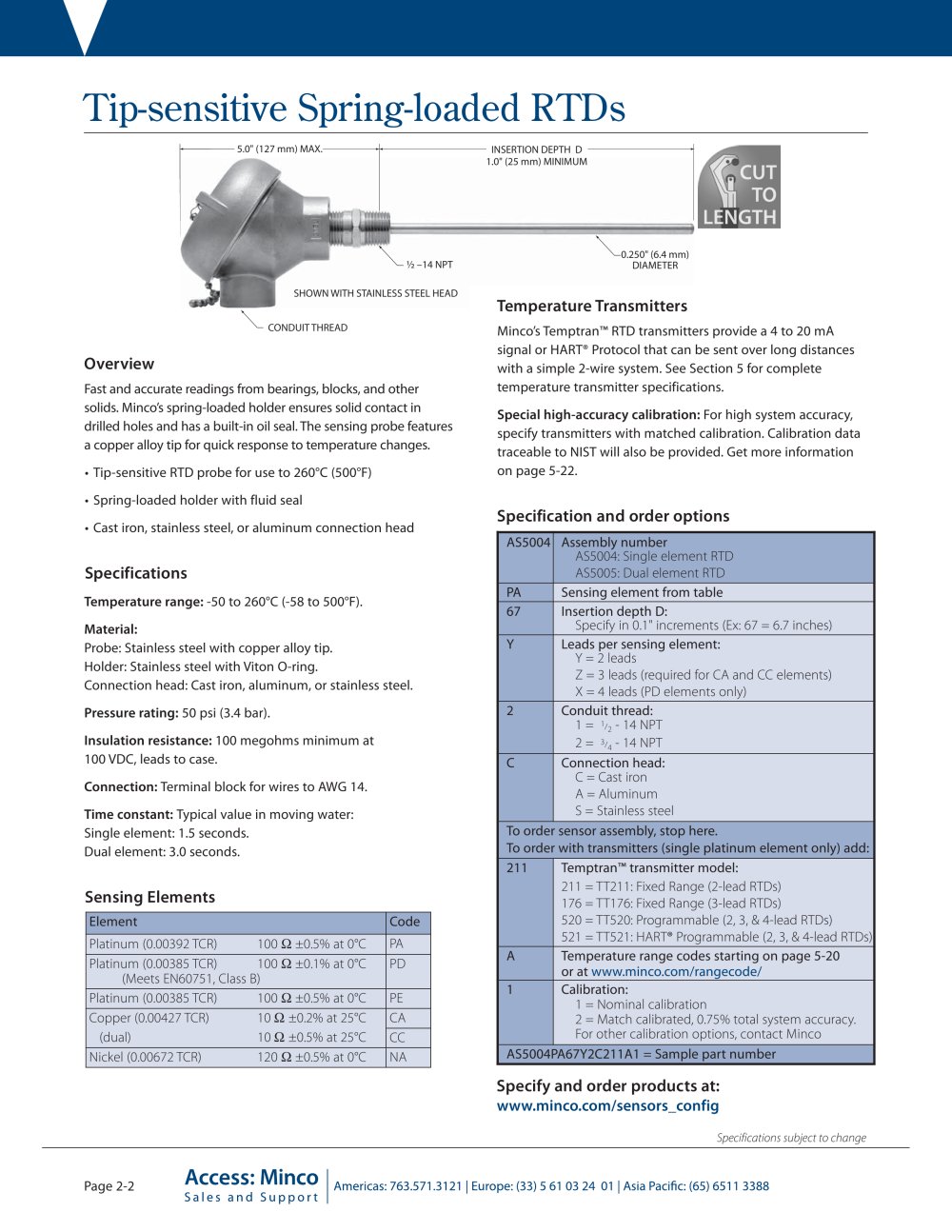

Tip-sensitive Spring-loaded RTDs
-5.0" (127 mm) MAX.-
- INSERTION DEPTH D -1.0" (25 mm) MINIMUM
CUT-TO-LENGTH PROBE
-0.250" (6.4 mm) DIAMETER
^y2-14 NPT SHOWN WITH STAINLESS STEEL HEAD
Minco's Temptran™ RTD transmitters providea4to20mA signal that can be sent over long distances with a simple 2-wire system. Add any Minco model transmitter (except electrically isolated models). See Section 5 for complete details and ordering information.
Special high-accuracy calibration: For guaranteed system accuracy of ± 0.75% of temperature span, specify transmitters with high accuracy calibration. Calibration data traceable to NIST will also be provided. Get more information on page 5-18.
Specification and order options
^ CONDUITTHREAD
Overview
Fast and accurate readings from bearings, blocks, and other solids. Minco's spring-loaded holder ensures solid contact in drilled holes and has a built-in oil seal. The sensing probe features a copper alloy tip for quick response to temperature changes.
• Tip-sensitive RTD probe for use to 260°C (500°F)
• Spring-loaded holder with fluid seal
• Cast iron, stainless steel, or aluminum connection head
Specifications
Temperature range: -50 to 260°C (-58 to 500°F). Material:
Probe: Stainless steel with copper alloy tip.
Holder: Stainless steel with Viton O-ring.
Connection head: Cast iron, aluminum, or stainless steel.
Pressure rating: 50 psi (3.4 bar).
Insulation resistance: 100 megohms minimum at 100 VDC, leads to case.
Connection: Terminal block for wires toAWG 14.
Time constant: Typical value in moving water: Single element: 1.5 seconds. Dual element: 3.0 seconds.
AS5004
Assembly number
AS5004: Single element RTD AS5005: Dual element RTD
PA
Sensing element from table
67
Insertion depth D:
Specify in 0.1" increments (Ex: 67 = 6.7 inches)
Y
Leads per sensing element:
Y = 2 leads
Z = 3 leads (required for CA and CC elements) X = 4 leads (PD elements only)
2
Conduit thread:
1 = 1/2-l4NPT 2= 3/4-14NPT
C
Connection head:
C = Cast iron A = Aluminum S = Stainless steel
To order sensor assembly, stop here.
To order with transmitters (single platinum element only,
2 or 3 leads) add:
211
Temptran™ transmitter model:
211 =TT211: 2-lead RTDs
176=TT176: 3-lead RTDs
711= TT711: 2-lead RTDs, match calibrated
676 =TT676: 3-lead RTDs, match calibrated
A
Temperature range codes on page 5-16 or at www.minco.com/rangecode/
AS5004PA67Y2C211A = Sample part number
Sensing Elements
Element
Code
Platinum (0.00392 TCR)
100 Q ±0.5% at 0°C
PA
Platinum (0.00385 TCR)
100 Q ±0.1% at 0°C
PD
(Meets EN60751, Class B)
Platinum (0.00385 TCR)
100 Q ±0.5% at 0°C
PE
Copper (0.00427 TCR)
10 Q ±0.2% at 25°C
CA
(dual)
10 Q ±0.5% at 25°C
CC
Nickel (0.00672 TCR)
120 Q ±0.5% at 0°C
NA
Specify and order products at: www.minco.com/sensors_config
Specifications subject to change
Page 2-2 ACCÖSSI MllICO Americas: 763.571.3121 | Europe: (33) 5 61 03 24 01 | Asia Pacific: (65) 6511 3388
