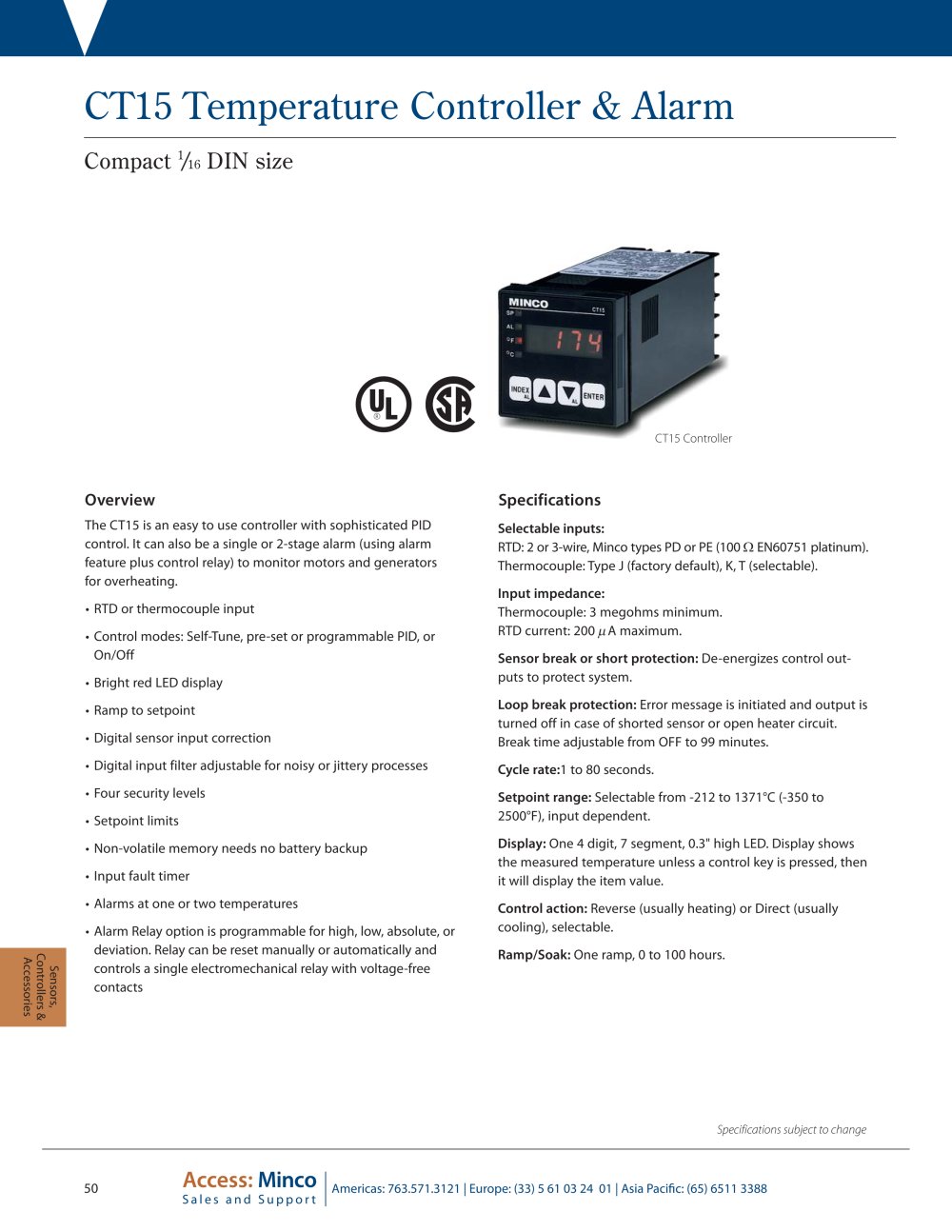

| Specifications Selectable inputs: RTD: 2 or 3-wire, Minco types PD or PE (100 fi EN60751 platinum). Thermocouple: Type J (factory default), K, T (selectable). Input impedance: Thermocouple: 3 megohms minimum. RTD current: 200 /xA maximum. Sensor break or short protection: De-energizes control outputs to protect system. Loop break protection: Error message is initiated and output is turned off in case of shorted sensor or open heater circuit. Break time adjustable from OFF to 99 minutes. Cycle rate:1 to 80 seconds. Setpoint range: Selectable from -212 to 1371°C (-350 to 2500°F), input dependent. Display: One 4 digit, 7 segment, 0.3" high LED. Display shows the measured temperature unless a control key is pressed, then it will display the item value. Control action: Reverse (usually heating) or Direct (usually cooling), selectable. Ramp/Soak: One ramp, 0 to 100 hours. |
