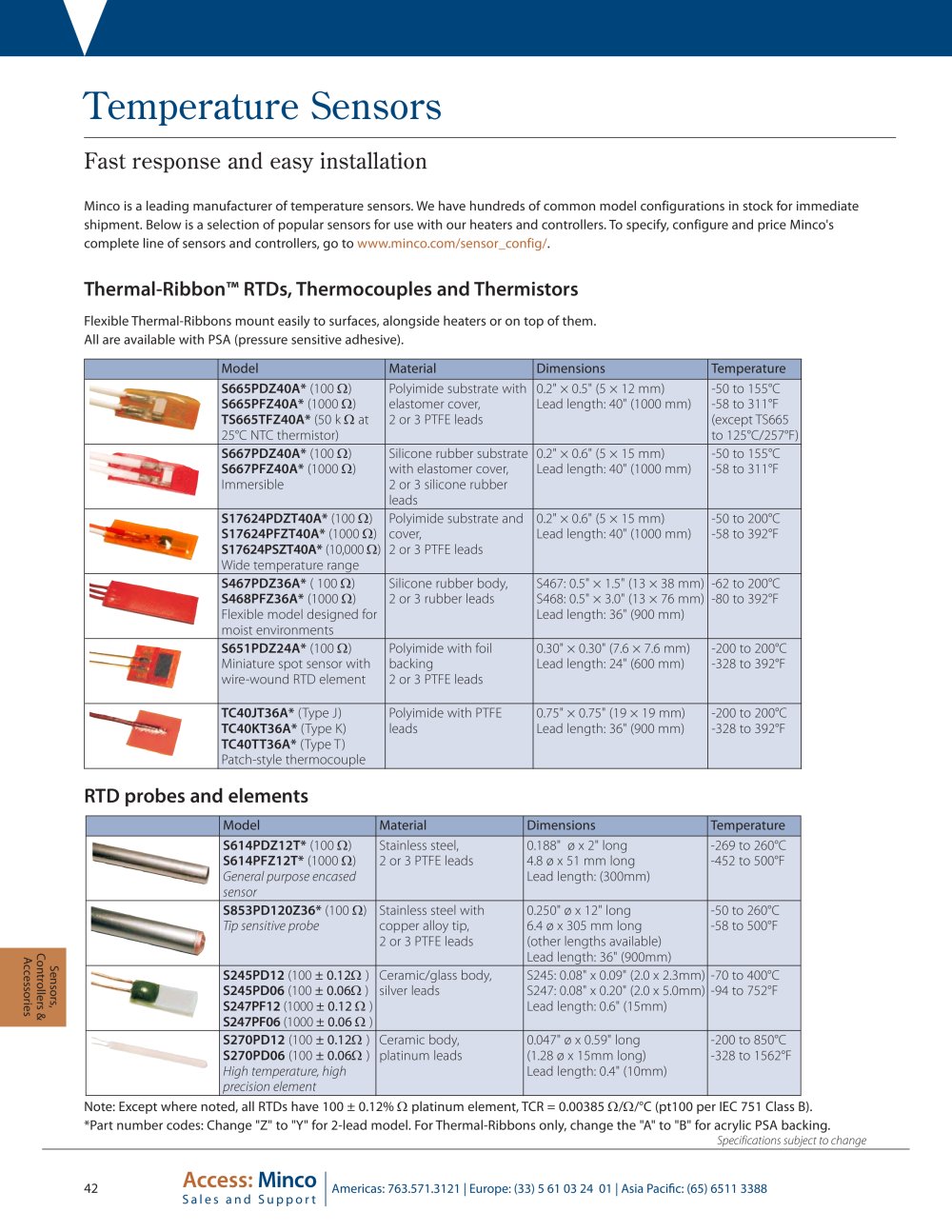

Temperature Sensors
Fast response and easy installation
IntroductionDesignGuide Minco is a leading
manufacturer of temperature sensors. We have hundreds of common model configurations in stock for immediateshipment. Below is a selection of popular sensors for use with our heaters and controllers. To specify, configure and price Minco's complete line of sensors and controllers, go to www.minco.com/sensor_config/.
Flexible Thermal-Ribbons mount easily to surfaces, alongside heaters or on top of them. All are available with P SA (
pressure sensitive adhesive).
Note: Except where noted, all RTDs have 100 ± 0.12% Model Material Dimensions Temperature
P olyimideHeatersSiliconeRubberHeaters (foil)Standard S665PDZ40A* (100 Ω ) Polyimide substrate with
elastomer cover,
2 or 3 PTFE leads 0.2" × 0.5" (5 × 12 mm)
Lead length: 40" (1000 mm) -50 to 155°C
-58 to 311°F
(except TS665
to 125°C/257°F) S665PFZ40A* (1000 Ω ) TS665TFZ40A* (50 k Ω at25°C NTC thermistor) S667PDZ40A* (100 Ω ) Silicone rubber substrate
with elastomer cover,
2 or 3 silicone rubber
leads 0.2" × 0.6" (5 × 15 mm)
Lead length: 40" (1000 mm) -50 to 155°C
-58 to 311°F S667PFZ40A* (1000 Ω )Immersible S17624PDZT40A* (100 Ω ) Polyimide substrate and
cover,
2 or 3 PTFE leads 0.2" × 0.6" (5 × 15 mm)
Lead length: 40" (1000 mm) -50 to 200°C
-58 to 392°F S17624PFZT40A* (1000 Ω )
P olyimide& RubberRubberHeaters(wire-wound)Mica HeatersThermal-ClearHeatersAll- S17624PSZT40A* (10,000 Ω )Wide temperature range S467PDZ36A* ( 100 Ω ) Silicone rubber body,
2 or 3 rubber leads S467: 0.5" × 1.5" (13 × 38 mm)
S468: 0.5" × 3.0" (13 × 76 mm)
Lead length: 36" (900 mm) -62 to 200°C
-80 to 392°F S468PFZ36A* (1000 Ω )Flexible model designed for
moist environments S651PDZ24A* (100 Ω )Miniature spot sensor with
wire-wound RTD element Polyimide with foil backing
2 or 3 PTFE leads 0.30" × 0.30" (7.6 × 7.6 mm)
Lead length: 24" (600 mm) -200 to 200°C
-328 to 392°F TC40JT36A* (Type J) Polyimide with PTFE
leads 0.75" × 0.75" (19 × 19 mm)
Lead length: 36" (900 mm) -200 to 200°C
-328 to 392°F TC40KT36A* (Type K) TC40TT36A* (Type T)Patch-style thermocouple
RTD probes and elements
Model Material Dimensions Temperature S614PDZ12T* (100 Ω ) Stainless steel,
2 or 3 PTFE leads 0.188" ø x 2" long
4.8 ø x 51 mm long
Lead length: (300mm) -269 to 260°C
-452 to 500°F S614PFZ12T* (1000 Ω )
P General purpose encased
sensor
olyimideHeatersSensors,Controllers &AccessoriesReference S853PD120Z36* (100 Ω ) Stainless steel with
copper alloy tip, 2 or 3 PTFE leads 0.250" ø x 12" long
6.4 ø x 305 mm long
(other lengths available)
Lead length: 36" (900mm) -50 to 260°C
-58 to 500°F Tip sensitive probe S245PD12 (100 ± 0.12 Ω ) Ceramic/glass body,silver leads S245: 0.08" x 0.09" (2.0 x 2.3mm)
S247: 0.08" x 0.20" (2.0 x 5.0mm)
Lead length: 0.6" (15mm) -70 to 400°C
-94 to 752°F S245PD06 (100 ± 0.06 Ω ) S247PF12 (1000 ± 0.12 Ω ) S247PF06 (1000 ± 0.06 Ω ) S270PD12 (100 ± 0.12 Ω ) Ceramic body,
platinum leads 0.047" ø x 0.59" long
(1.28 ø x 15mm long)
Lead length: 0.4" (10mm) -200 to 850°C
-328 to 1562°F S270PD06 (100 ± 0.06 Ω ) High temperature, high precision element Ω platinum element, TCR = 0.003 8 5 Ω / Ω /°C (pt100 per IEC 751 Class B).* P art number codes: Change "Z" to "Y" for 2-lead model. For Thermal-Ribbons only, change the "A" to "B" for acrylic P SA backing.
Specifications subject to change 4 2
|
