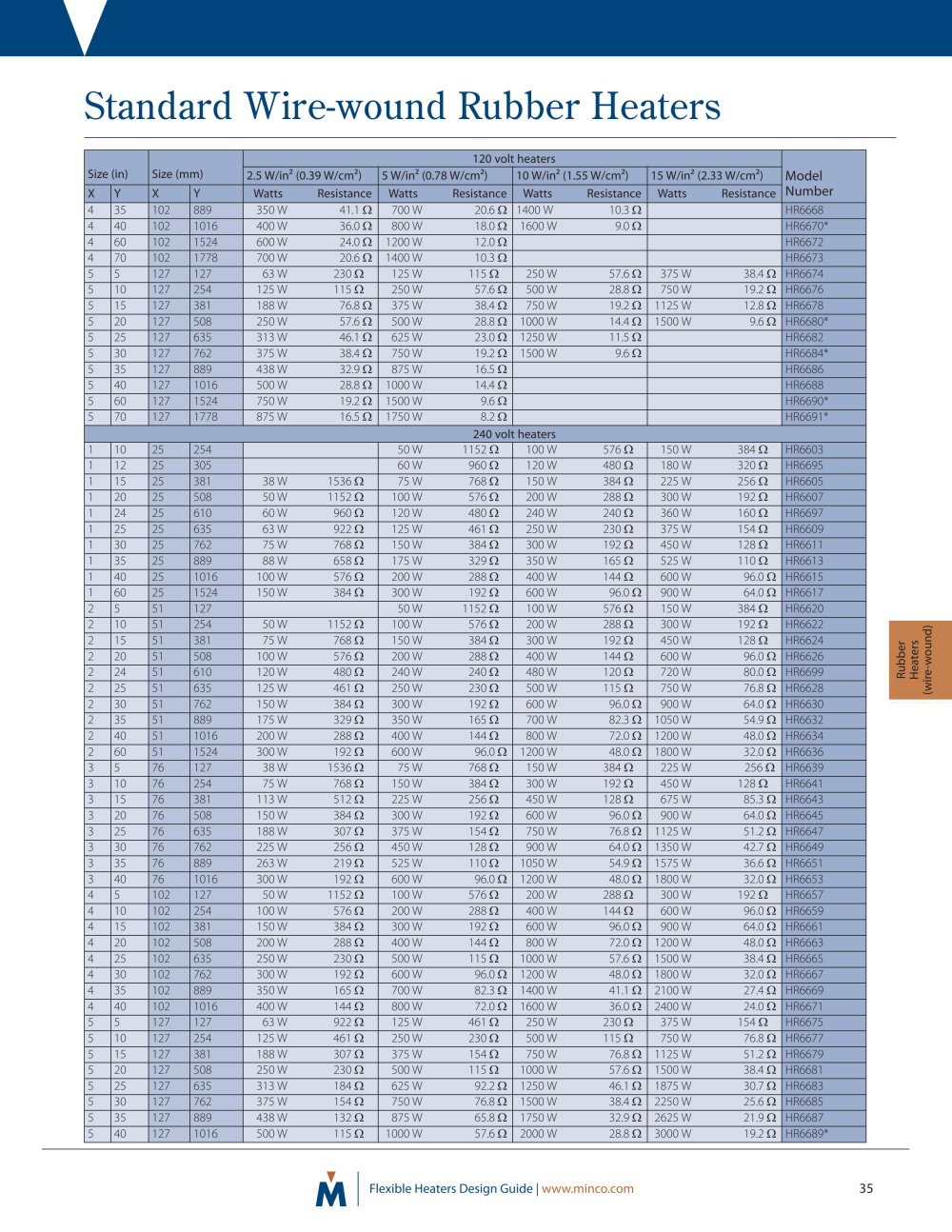

Standard Wire-wound Rubber Heaters
120 volt heaters Size (in) Size (mm) 2.5 W/in² (0.39 W/cm²) 5 W/in² (0.7 8 W/cm²) 10 W/in² (1.55 W/cm²) 15 W/in² (2.33 W/cm²)
ModelNumber
X Y X Y WattsResistance WattsResistance WattsResistance WattsResistance 4 35 102 889 350 W41.1 Ω 700 W20.6 Ω 1400 W10.3 Ω HR6668 4 40 102 1016 400 W36.0 Ω 800 W18.0 Ω 1600 W9.0 Ω HR6670* 4 60 102 1524 600 W24.0 Ω 1200 W12.0 Ω HR6672 4 70 102 1778 700 W20.6 Ω 1400 W10.3 Ω HR6673 5 5 127 127 63 W230 Ω 125 W115 Ω 250 W57.6 Ω 375 W38.4 Ω HR6674
IntroductionDesignGuide 5 10 127 254 125 W115 Ω 250 W57.6 Ω 500 W28.8 Ω 750 W19.2 Ω HR6676 5 15 127 381 188 W76.8 Ω 375 W38.4 Ω 750 W19.2 Ω 1125 W12.8 Ω HR6678 5 20 127 508 250 W57.6 Ω 500 W28.8 Ω 1000 W14.4 Ω 1500 W9.6 Ω HR6680* 5 25 127 635 313 W46.1 Ω 625 W23.0 Ω 1250 W11.5 Ω HR6682 5 30 127 762 375 W38.4 Ω 750 W19.2 Ω 1500 W9.6 Ω HR6684* 5 35 127 889 438 W32.9 Ω 875 W16.5 Ω HR6686 5 40 127 1016 500 W28.8 Ω 1000 W14.4 Ω HR6688 5 60 127 1524 750 W19.2 Ω 1500 W9.6 Ω HR6690* 5 70 127 1778 875 W16.5 Ω 1750 W8.2 Ω HR6691* 2 4 0 volt heaters
olyimideHeatersSiliconeRubberHeaters (foil)Standard P 1 10 25 254 50 W1152 Ω 100 W576 Ω 150 W384 Ω HR6603 1 12 25 305 60 W960 Ω 120 W480 Ω 180 W320 Ω HR6695 1 15 25 381 38 W1536 Ω 75 W768 Ω 150 W384 Ω 225 W256 Ω HR6605 1 20 25 508 50 W1152 Ω 100 W576 Ω 200 W288 Ω 300 W192 Ω HR6607 1 24 25 610 60 W960 Ω 120 W480 Ω 240 W240 Ω 360 W160 Ω HR6697 1 25 25 635 63 W922 Ω 125 W461 Ω 250 W230 Ω 375 W154 Ω HR6609 1 30 25 762 75 W768 Ω 150 W384 Ω 300 W192 Ω 450 W128 Ω HR6611 1 35 25 889 88 W658 Ω 175 W329 Ω 350 W165 Ω 525 W110 Ω HR6613 1 40 25 1016 100 W576 Ω 200 W288 Ω 400 W144 Ω 600 W96.0 Ω HR6615 1 60 25 1524 150 W384 Ω 300 W192 Ω 600 W96.0 Ω 900 W64.0 Ω HR6617
olyimide& RubberRubberHeaters(wire-wound)Mica HeatersThermal-ClearHeatersAll- P 2 5 51 127 50 W1152 Ω 100 W576 Ω 150 W384 Ω HR6620 2 10 51 254 50 W1152 Ω 100 W576 Ω 200 W288 Ω 300 W192 Ω HR6622 2 15 51 381 75 W768 Ω 150 W384 Ω 300 W192 Ω 450 W128 Ω HR6624 2 20 51 508 100 W576 Ω 200 W288 Ω 400 W144 Ω 600 W96.0 Ω HR6626 2 24 51 610 120 W480 Ω 240 W240 Ω 480 W120 Ω 720 W80.0 Ω HR6699 2 25 51 635 125 W461 Ω 250 W230 Ω 500 W115 Ω 750 W76.8 Ω HR6628 2 30 51 762 150 W384 Ω 300 W192 Ω 600 W96.0 Ω 900 W64.0 Ω HR6630 2 35 51 889 175 W329 Ω 350 W165 Ω 700 W82.3 Ω 1050 W54.9 Ω HR6632 2 40 51 1016 200 W288 Ω 400 W144 Ω 800 W72.0 Ω 1200 W48.0 Ω HR6634 2 60 51 1524 300 W192 Ω 600 W96.0 Ω 1200 W48.0 Ω 1800 W32.0 Ω HR6636 3 5 76 127 38 W1536 Ω 75 W768 Ω 150 W384 Ω 225 W256 Ω HR6639 3 10 76 254 75 W768 Ω 150 W384 Ω 300 W192 Ω 450 W128 Ω HR6641 3 15 76 381 113 W512 Ω 225 W256 Ω 450 W128 Ω 675 W85.3 Ω HR6643 3 20 76 508 150 W384 Ω 300 W192 Ω 600 W96.0 Ω 900 W64.0 Ω HR6645 3 25 76 635 188 W307 Ω 375 W154 Ω 750 W76.8 Ω 1125 W51.2 Ω HR6647 3 30 76 762 225 W256 Ω 450 W128 Ω 900 W64.0 Ω 1350 W42.7 Ω HR6649 3 35 76 889 263 W219 Ω 525 W110 Ω 1050 W54.9 Ω 1575 W36.6 Ω HR6651 3 40 76 1016 300 W192 Ω 600 W96.0 Ω 1200 W48.0 Ω 1800 W32.0 Ω HR6653 4 5 102 127 50 W1152 Ω 100 W576 Ω 200 W288 Ω 300 W192 Ω HR6657 4 10 102 254 100 W576 Ω 200 W288 Ω 400 W144 Ω 600 W96.0 Ω HR6659
olyimideHeatersSensors,Controllers &AccessoriesReference 4 15 102 381 150 W384 Ω 300 W192 Ω 600 W96.0 Ω 900 W64.0 Ω HR6661
P 4 20 102 508 200 W288 Ω 400 W144 Ω 800 W72.0 Ω 1200 W48.0 Ω HR6663 4 25 102 635 250 W230 Ω 500 W115 Ω 1000 W57.6 Ω 1500 W38.4 Ω HR6665 4 30 102 762 300 W192 Ω 600 W96.0 Ω 1200 W48.0 Ω 1800 W32.0 Ω HR6667 4 35 102 889 350 W165 Ω 700 W82.3 Ω 1400 W41.1 Ω 2100 W27.4 Ω HR6669 4 40 102 1016 400 W144 Ω 800 W72.0 Ω 1600 W36.0 Ω 2400 W24.0 Ω HR6671 5 5 127 127 63 W922 Ω 125 W461 Ω 250 W230 Ω 375 W154 Ω HR6675 5 10 127 254 125 W461 Ω 250 W230 Ω 500 W115 Ω 750 W76.8 Ω HR6677 5 15 127 381 188 W307 Ω 375 W154 Ω 750 W76.8 Ω 1125 W51.2 Ω HR6679 5 20 127 508 250 W230 Ω 500 W115 Ω 1000 W57.6 Ω 1500 W38.4 Ω HR6681 5 25 127 635 313 W184 Ω 625 W92.2 Ω 1250 W46.1 Ω 1875 W30.7 Ω HR6683 5 30 127 762 375 W154 Ω 750 W76.8 Ω 1500 W38.4 Ω 2250 W25.6 Ω HR6685 5 35 127 889 438 W132 Ω 875 W65.8 Ω 1750 W32.9 Ω 2625 W21.9 Ω HR6687 5 40 127 1016 500 W115 Ω 1000 W57.6 Ω 2000 W28.8 Ω 3000 W19.2 Ω HR6689*
|
35
