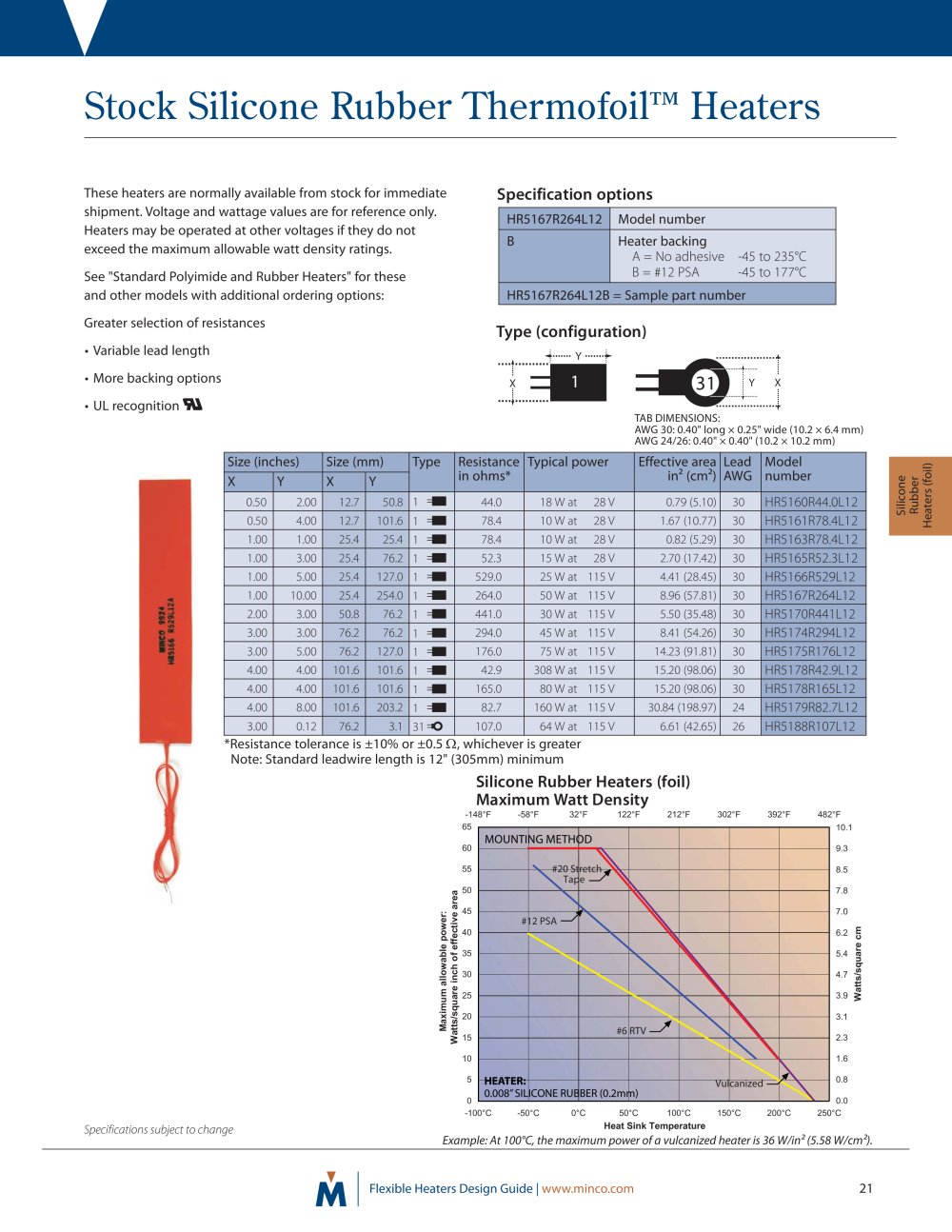

Stock Silicone Rubber Thermofoil™ Heaters
These heaters are normally available from stock for immediate shipment. Voltage and wattage values are for reference only. Heaters may be operated at other voltages if they do not exceed the maximum allowable watt density ratings.
See "Standard Polyimide and Rubber Heaters" for these and other models with additional ordering options:
Greater selection of resistances
• Variable lead length
• More backing options
• UL recognition U
Specification options
HR5167R264L12
Model number
B
Heater backing
A = No adhesive -45 to 235°C B = #12 PSA -45 to 177°C
HR5167R264L12B = Sample part number
Type (configuration)
TAB DIMENSIONS:
AWG 30: 0.40" long x 0.25" wide (10.2 x 6.4 mm) AWG 24/26: 0.40" x 0.40" (10.2 x 10.2 mm)
Size (inches)
Size (mm)
Type
Resistance in ohms*
Typical power
Effective area in2 (cm2)
Lead AWG
Model number
X
Y
X
Y
0.50
2.00
12.7
50.8
1 m
44.0
18 W at 28 V
0.79 (5.10)
30
HR5160R44.0L12
0.50
4.00
12.7
101.6
1 m
78.4
10 W at 28 V
1.67 (10.77)
30
HR5161R78.4L12
1.00
1.00
25.4
25.4
1 m
78.4
10 W at 28 V
0.82 (5.29)
30
HR5163R78.4L12
1.00
3.00
25.4
76.2
1 m
52.3
15 W at 28 V
2.70 (17.42)
30
HR5165R52.3L12
1.00
5.00
25.4
127.0
1 m
529.0
25 W at 115 V
4.41 (28.45)
30
HR5166R529L12
1.00
10.00
25.4
254.0
1 m
264.0
50 W at 115 V
8.96 (57.81)
30
HR5167R264L12
2.00
3.00
50.8
76.2
1 m
441.0
30 W at 115 V
5.50 (35.48)
30
HR5170R441L12
3.00
3.00
76.2
76.2
1 m
294.0
45 W at 115 V
8.41 (54.26)
30
HR5174R294L12
3.00
5.00
76.2
127.0
1 m
176.0
75 W at 115 V
14.23 (91.81)
30
HR5175R176L12
4.00
4.00
101.6
101.6
1 m
42.9
308 W at 115 V
15.20 (98.06)
30
HR5178R42.9L12
4.00
4.00
101.6
101.6
1 m
165.0
80 W at 115 V
15.20 (98.06)
30
HR5178R165L12
4.00
8.00
101.6
203.2
1 m
82.7
160 W at 115 V
30.84 (198.97)
24
HR5179R82.7L12
3.00
0.12
76.2
3.1
31 o
107.0
64 W at 115 V
6.61 (42.65)
26
HR5188R107L12
O-Û 'S!
Vice* X
Note: Standard leadwire length is 12" (305mm) minimum
Silicone Rubber Heaters (foil) Maximum Watt Density
-148°F
212 F
302 F
392 F
482°F
-58"F
32"F
122"F
65
MOUNTI
NG METH
OD
rntrh \
#20 St
N Tap
retch e
2 PSA
#6
RTV —^
HEATER:
0.008" SIL
CONE RUB
BER (0.2 m
m)
Vu
canized —
10.1
60
9.3
55
8.5
50
7.8 7.0 6.2 5.4 4.7 3.9
3.1 2.3 1.6 0.8
ra
a >
lì _a> 'S
45
40
u ¡7
g
•s 35
I 30 25
si
I *
E &
X J* a en
20 15 10 5
0
-100°C
0.0 250°C
-50°C
0°C
50°C 100°C
150°C
200 C
Heat Sink Temperature
Example: At 100°C, the maximum power of a vulcanized heater is 36 W/in2 (5.58 W/cm2).
Specifications subject to change
Flexible heaters Design Guide | www.minco.com
