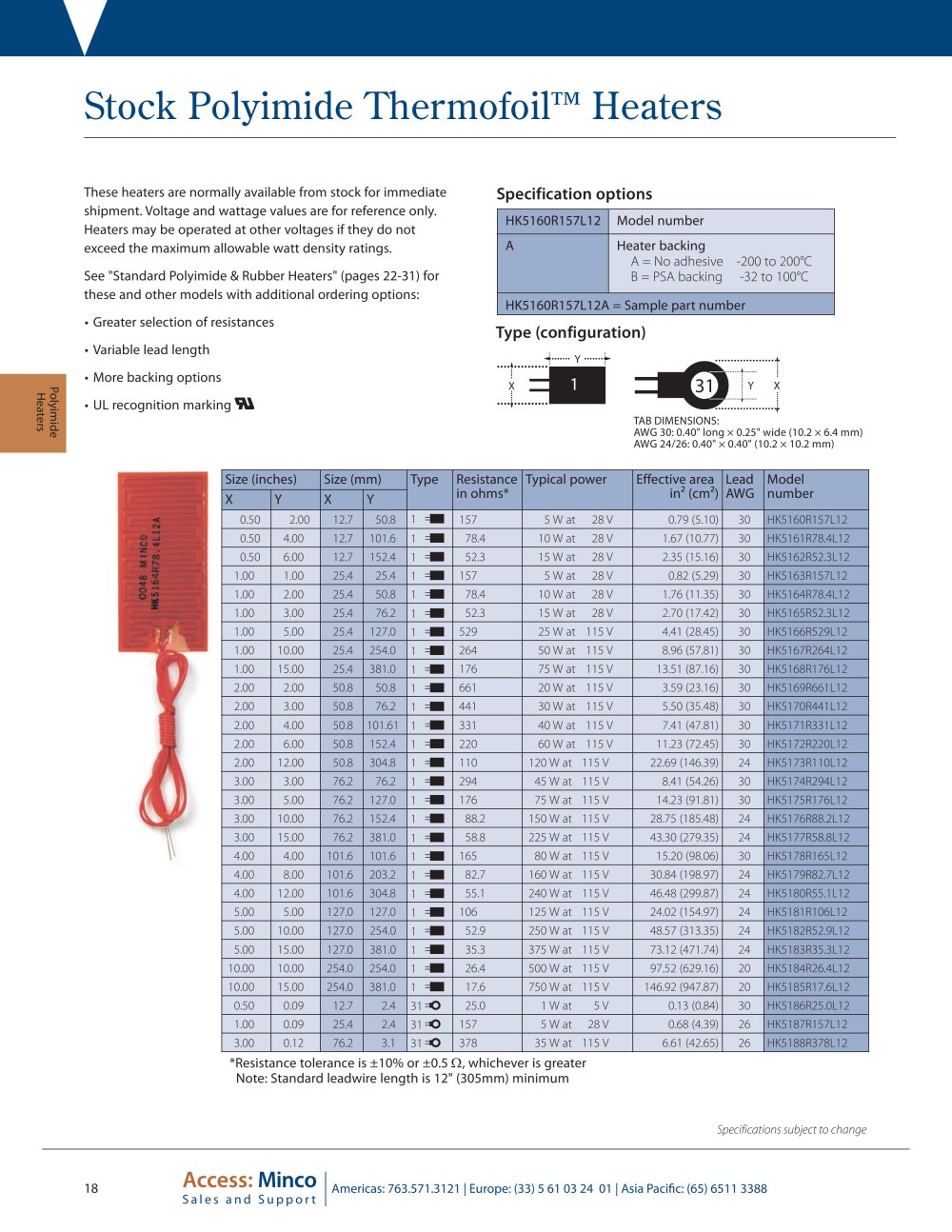

Stock Polyimide Thermofoil™ Heaters

These heaters are normally available from stock for immediateshipment. Voltage and wattage values are for reference only.Heaters may be operated at other voltages if they do not exceed the maximum allowable watt density ratings.See "Standard

Specification optionsType

IntroductionDesignGuide

HK5160R157L12 Model number P olyimide & Rubber Heaters" (pages 22-31) forthese and other models with additional ordering options:•Greater selection of resistances •Variable lead length•More backing options•UL recognition marking A Heater backing A = No adhesive-200 to 200°C B = PSA backing-32 to 100°C U HK5160R157L12A = Sample part number

( configuration )

P olyimideHeatersSiliconeRubberHeaters (foil)Standard

1

31

XY TAB DIMENSIONS: AWG 30: 0.40" long × 0.25" wide (10.2 × 6.4 mm) AWG 24/26: 0.40" × 0.40" (10.2 × 10.2 mm)XY

Size (inches) Size (mm) Type Resistancein ohms* Typical power Effective areain² (cm²) Lead AWG Model number X Y X Y

0.50 2.00 12.7 50.8 1
1 157 5 W at 28 V 0.79 (5.10) 30 HK5160R157L12
P 0.50 4.00 12.7 101.6 1
1 78.4 10 W at 28 V 1.67 (10.77) 30 HK5161R78.4L12
olyimide& RubberRubberHeaters(wire-wound)Mica HeatersThermal-ClearHeatersAll- 0.50 6.00 12.7 152.4 1
1 52.3 15 W at 28 V 2.35 (15.16) 30 HK5162R52.3L12 1.00 1.00 25.4 25.4 1
1 157 5 W at 28 V 0.82 (5.29) 30 HK5163R157L12 1.00 2.00 25.4 50.8 1
1 78.4 10 W at 28 V 1.76 (11.35) 30 HK5164R78.4L12 1.00 3.00 25.4 76.2 1
1 52.3 15 W at 28 V 2.70 (17.42) 30 HK5165R52.3L12 1.00 5.00 25.4 127.0 1
1 529 25 W at 115 V 4.41 (28.45) 30 HK5166R529L12 1.00 10.00 25.4 254.0 1
1 264 50 W at 115 V 8.96 (57.81) 30 HK5167R264L12 1.00 15.00 25.4 381.0 1
1 176 75 W at 115 V 13.51 (87.16) 30 HK5168R176L12 2.00 2.00 50.8 50.8 1
1 661 20 W at 115 V 3.59 (23.16) 30 HK5169R661L12 2.00 3.00 50.8 76.2 1
1 441 30 W at 115 V 5.50 (35.48) 30 HK5170R441L12 2.00 4.00 50.8 101.61 1
1 331 40 W at 115 V 7.41 (47.81) 30 HK5171R331L12 2.00 6.00 50.8 152.4 1
1 220 60 W at 115 V 11.23 (72.45) 30 HK5172R220L12 2.00 12.00 50.8 304.8 1
1 110 120 W at 115 V 22.69 (146.39) 24 HK5173R110L12 3.00 3.00 76.2 76.2 1
1 294 45 W at 115 V 8.41 (54.26) 30 HK5174R294L12 3.00 5.00 76.2 127.0 1
1 176 75 W at 115 V 14.23 (91.81) 30 HK5175R176L12 3.00 10.00 76.2 152.4 1
1 88.2 150 W at 115 V 28.75 (185.48) 24 HK5176R88.2L12 3.00 15.00 76.2 381.0 1
1 58.8 225 W at 115 V 43.30 (279.35) 24 HK5177R58.8L12 4.00 4.00 101.6 101.6 1
1 165 80 W at 115 V 15.20 (98.06) 30 HK5178R165L12
1 P 4.00 8.00 101.6 203.2 1 82.7 160 W at 115 V 30.84 (198.97) 24 HK5179R82.7L12
olyimideHeatersSensors,Controllers &AccessoriesReference 4.00 12.00 101.6 304.8 1
1 55.1 240 W at 115 V 46.48 (299.87) 24 HK5180R55.1L12 5.00 5.00 127.0 127.0 1
1 106 125 W at 115 V 24.02 (154.97) 24 HK5181R106L12 5.00 10.00 127.0 254.0 1
1 52.9 250 W at 115 V 48.57 (313.35) 24 HK5182R52.9L12 5.00 15.00 127.0 381.0 1
1 35.3 375 W at 115 V 73.12 (471.74) 24 HK5183R35.3L12 10.00 10.00 254.0 254.0 1
1 26.4 500 W at 115 V 97.52 (629.16) 20 HK5184R26.4L12 10.00 15.00 254.0 381.0 1
1 17.6 750 W at 115 V 146.92 (947.87) 20 HK5185R17.6L12 0.50 0.09 12.7 2.4 31
K 25.0 1 W at 5 V 0.13 (0.84) 30 HK5186R25.0L12 1.00 0.09 25.4 2.4 31
K 157 5 W at 28 V 0.68 (4.39) 26 HK5187R157L12 3.00 0.12 76.2 3.1 31
K 378 35 W at 115 V 6.61 (42.65) 26 HK5188R378L12

*Resistance tolerance is ±10% or ±0.5 â„¦ , whichever is greaterNote: Standard leadwire length is 12" (305mm) minimum

Specifications subject to change
