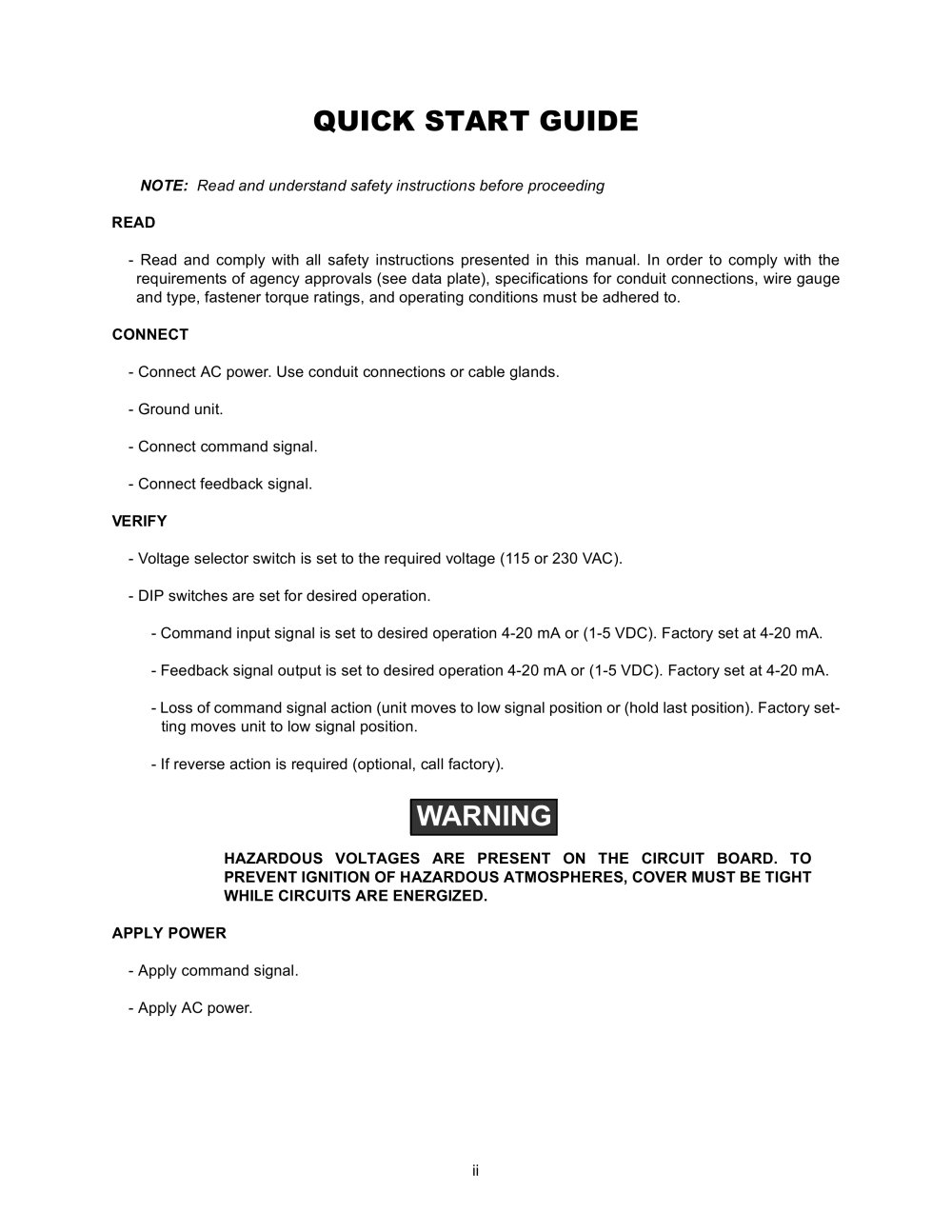

QUICK START GUIDE

NOTE: Read and understand safety instructions before proceeding READ - Read and comply with all safety instructions presented in this manual. In order to comply with therequirements of agency approvals (see data plate), specifications for conduit connections, wire gaugeand type, fastener torque ratings, and operating conditions must be adhered to. CONNECT VERIFY - Connect AC power. Use conduit connections or industrial cable glands. - Ground unit. - Connect command signal.- Connect feedback signal. - Voltage selector switch is set to the required voltage (115 or 230 VAC).- DIP switches are set for desired operation.- Command input signal is set to desired operation 4-20 mA or (1-5 VDC). Factory set at 4-20 mA.- Feedback signal output is set to desired operation 4-20 mA or (1-5 VDC). Factory set at 4-20 mA.- Loss of command signal action (unit moves to low signal position or (hold last position). Factory set-ting moves unit to low signal position. - If reverse action is required (optional, call factory).

WARNING

HAZARDOUS VOLTAGES ARE PRESENT ON THE CIRCUIT BOARD. TOPREVENT IGNITION OF HAZARDOUS ATMOSPHERES, COVER MUST BE TIGHT WHILE CIRCUITS ARE ENERGIZED.APPLY POWER - Apply command signal. - Apply AC power. ii
