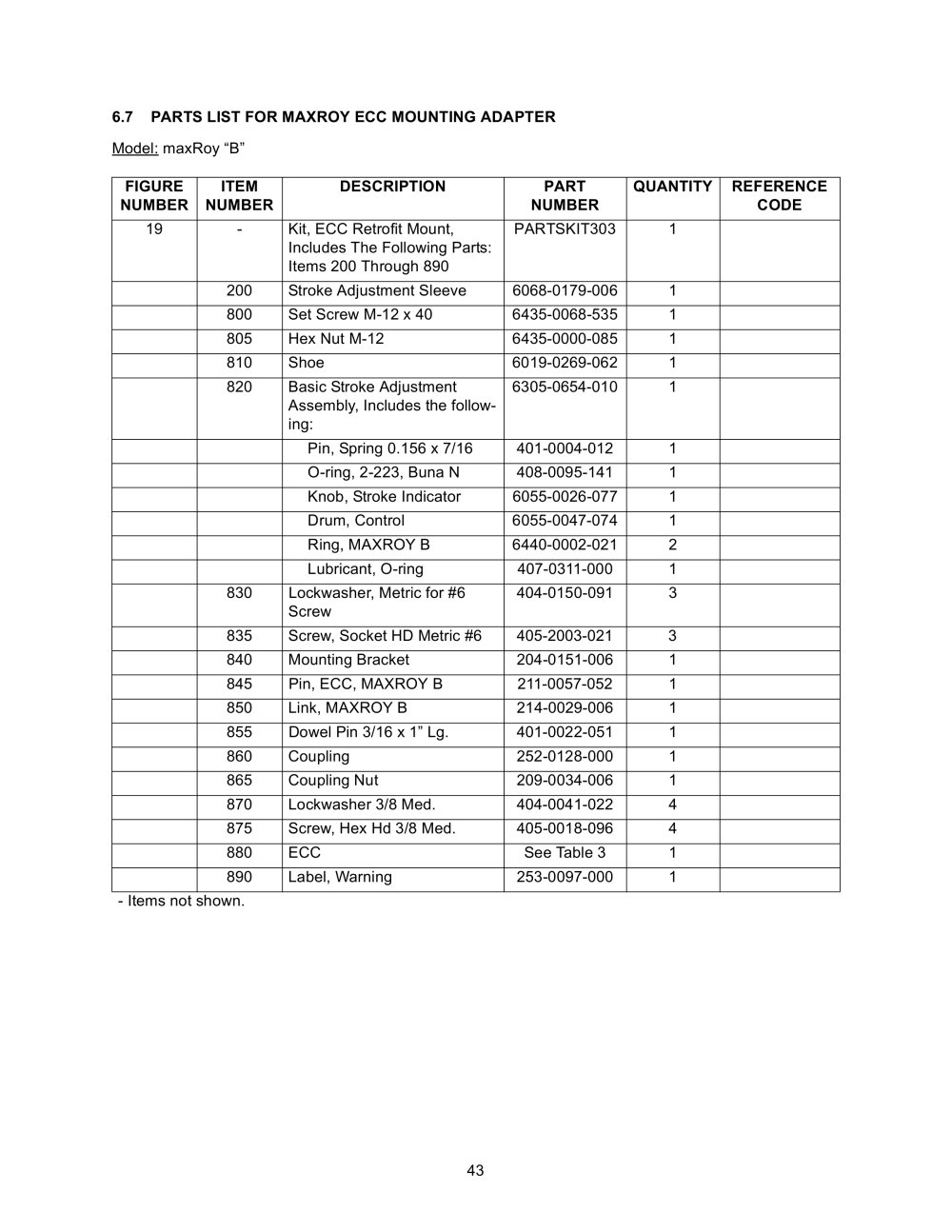

6.7 PARTS LIST FOR MAXROY ECC MOUNTING ADAPTER

Model: maxRoy "B"


FIGURE NUMBER	ITEM NUMBER	DESCRIPTION	PART NUMBER	QUANTITY	REFERENCE CODE
19		Kit, ECC Retrofit Mount, Includes The Following Parts: Items 200 Through 890	PARTSKIT303	1
	200	Stroke Adjustment Sleeve	6068-0179-006	1
	800	Set Screw M-12 x 40	6435-0068-535	1
	805	Hex Nut M-12	6435-0000-085	1
	810	Shoe	6019-0269-062	1
	820	Basic Stroke Adjustment Assembly, Includes the following:	6305-0654-010	1
		Pin, Spring 0.156 x 7/16	401-0004-012	1
		O-ring, 2-223, Buna N	408-0095-141	1
		Knob, Stroke Indicator	6055-0026-077	1
		Drum, Control	6055-0047-074	1
		Ring, MAXROY B	6440-0002-021	2
		Lubricant, O-ring	407-0311-000	1
	830	Lockwasher, Metric for #6 Screw	404-0150-091	3
	835	Screw, Socket HD Metric #6	405-2003-021	3
	840	Mounting Bracket	204-0151-006	1
	845	Pin, ECC, MAXROY B	211-0057-052	1
	850	Link, MAXROY B	214-0029-006	1
	855	Dowel Pin 3/16 x 1" Lg.	401-0022-051	1
	860	Coupling	252-0128-000	1
	865	Coupling Nut	209-0034-006	1
	870	Lockwasher 3/8 Med.	404-0041-022	4
	875	Screw, Hex Hd 3/8 Med.	405-0018-096	4
	880	ECC	See Table 3	1
	890	Label, Warning	253-0097-000	1

- Items not shown.
