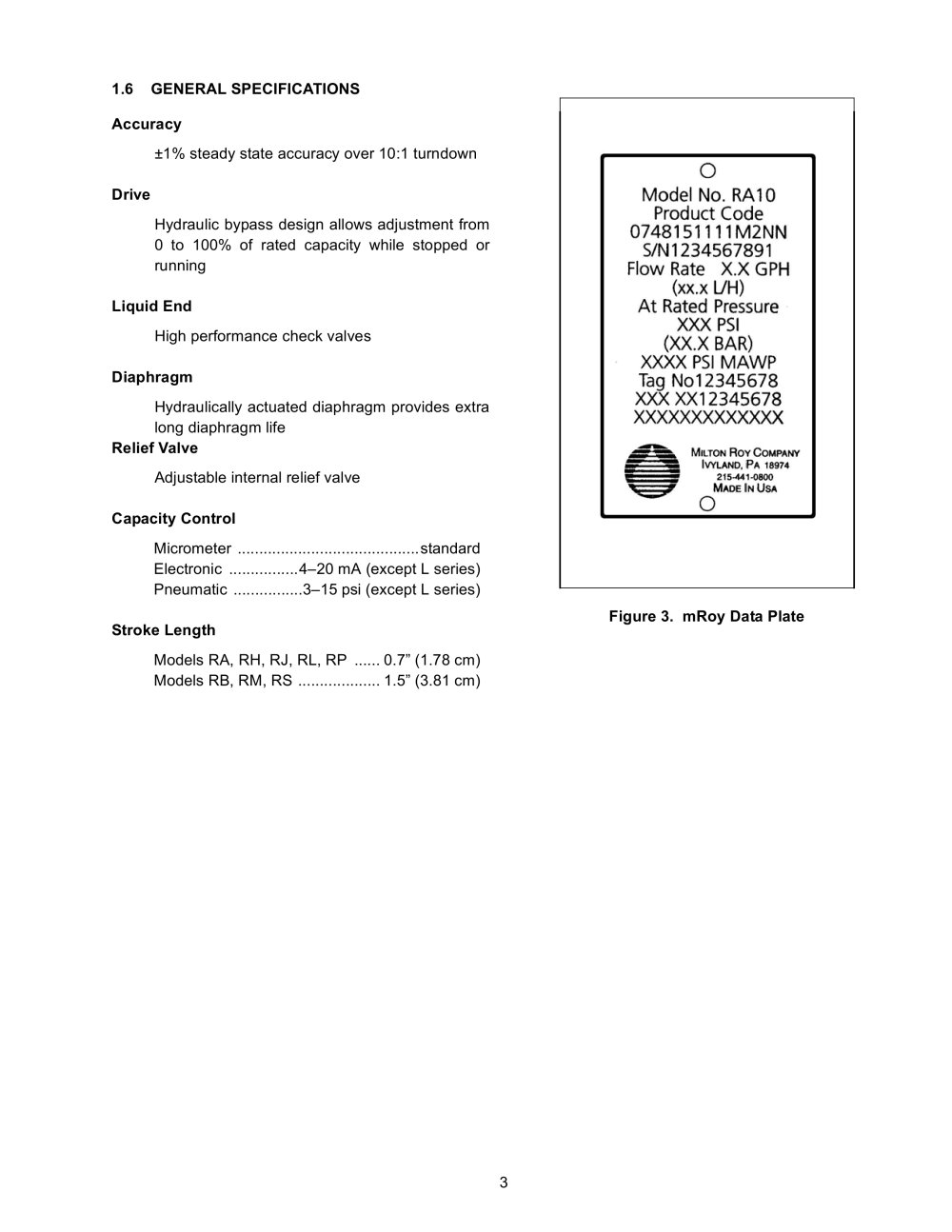

| 1.6 GENERAL SPECIFICATIONS Accuracy ±1% steady state accuracy over 10:1 turndown Drive Hydraulic bypass design allows adjustment from 0 to 100% of rated capacity while stopped or running Liquid End High performance check valves Diaphragm Hydraulically actuated diaphragm provides extra long diaphragm life Relief Valve Adjustable internal relief valve Capacity Control Micrometer..........................................standard Electronic ................4-20 mA (except L series) Pneumatic................3-15 psi (except L series) Stroke Length Models RA, RH, RJ, RL, RP ......0.7" (1.78 cm) Models RB, RM, RS...................1.5" (3.81 cm) | ||||||||||
| O Model No. RA10 Product Code 0748151111M2NN S/N1234567891 Flow Rate X.XGPH (xx.x L7H) At Rated Pressure XXX PSI (XX.X BAR) XXXX PSI MAWP Tag N012345678 XXX XX12345678 XXXXXXXXXXXXX J^^^k Milton Roy Company —■ — tVYLAND, PA 1B974 7 ^ 215.441.OB00 " MadeImUsa o_ | ||||||||||
| Figure 3. mRoy Data Plate | ||||||||||
| 3 | ||||||||||
