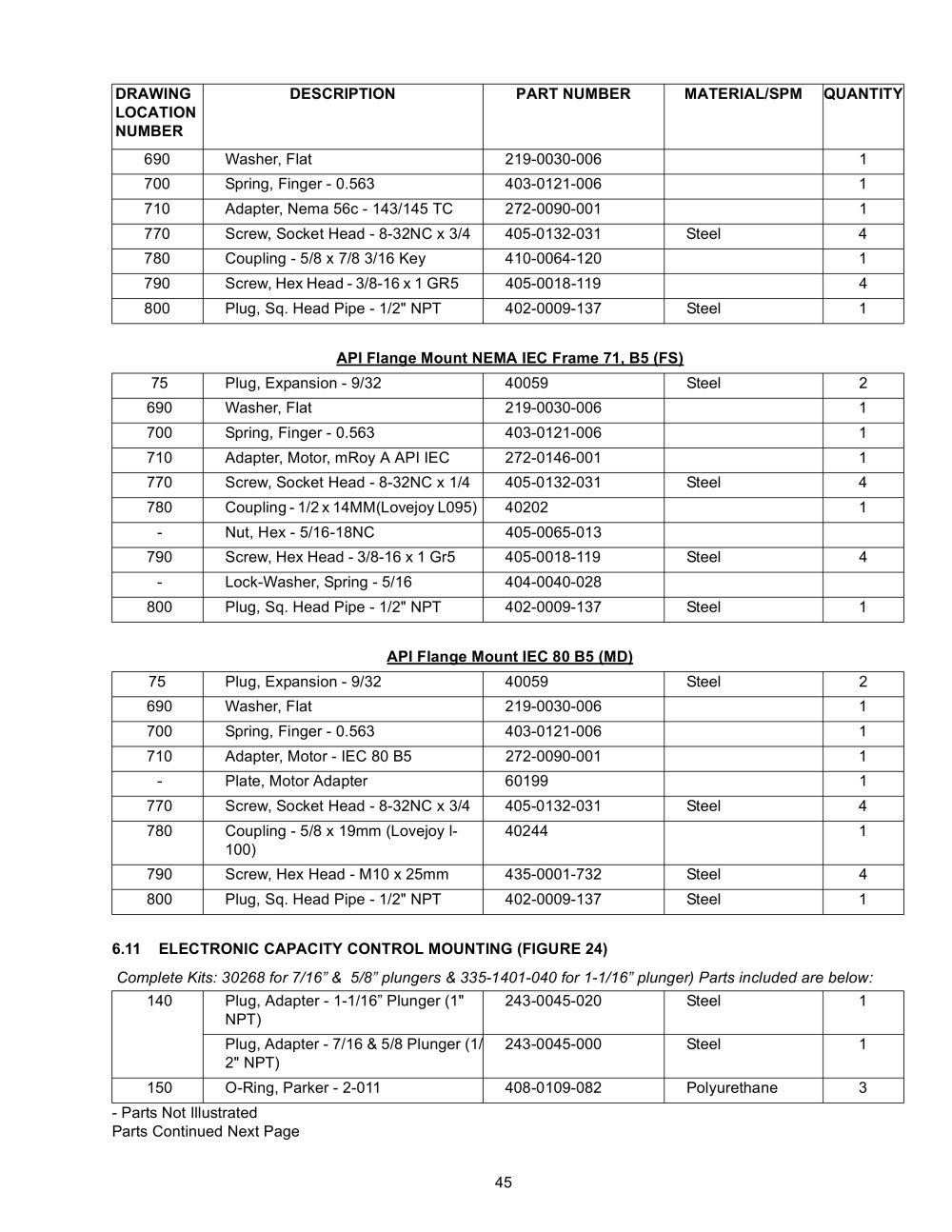

DRAWING LOCATION NUMBERDESCRIPTIONPART NUMBERMATERIAL/SPMQUANTITY API Flange Mount NEMA IEC Frame 71, B5 (FS) 75Plug, Expansion - 9/32 40059Steel2690Washer, Flat 219-0030-0061700Spring, Finger - 0.563403-0121-0061710Adapter, Motor, mRoy A API IEC272-0146-0011770Screw, Socket Head - 8-32NC x 1/4405-0132-031Steel4780Coupling - 1/2 x 14MM(Lovejoy L095) 402021-Nut, Hex - 5/16-18NC405-0065-013790Screw, Hex Head - 3/8-16 x 1 Gr5 405-0018-119Steel4-Lock-Washer, Spring - 5/16404-0040-028800Plug, Sq. Head Pipe - 1/2" NPT402-0009-137Steel1 API Flange Mount IEC 80 B5 (MD) 75Plug, Expansion - 9/32 40059Steel2690Washer, Flat 219-0030-0061700Spring, Finger - 0.563403-0121-0061710Adapter, Motor - IEC 80 B5 272-0090-0011-Plate, Motor Adapter 601991770Screw, Socket Head - 8-32NC x 3/4405-0132-031Steel4780Coupling - 5/8 x 19mm (Lovejoy l-100) 402441790Screw, Hex Head - M10 x 25mm 435-0001-732Steel4800Plug, Sq. Head Pipe - 1/2" NPT402-0009-137Steel1 6.11 ELECTRONIC CAPACITY CONTROL MOUNTING (FIGURE 24) Complete Kits: 30268 for 7/16” & 5/8” plungers & 335-1401-040 for 1-1/16” plunger) Parts included are below: 140Plug, Adapter - 1-1/16” Plunger (1" NPT)243-0045-020 Steel1Plug, Adapter - 7/16 & 5/8 Plunger (1/2" NPT)243-0045-000 Steel1150O-Ring, Parker - 2-011408-0109-082 Polyurethane 3 - Parts Not IllustratedParts Continued Next Page 45
690Washer, Flat 219-0030-0061700Spring, Finger - 0.563403-0121-0061710Adapter, Nema 56c - 143/145 TC 272-0090-0011770Screw, Socket Head - 8-32NC x 3/4405-0132-031Steel4780Coupling - 5/8 x 7/8 3/16 Key 410-0064-1201790Screw, Hex Head - 3/8-16 x 1 GR5 405-0018-1194800Plug, Sq. Head Pipe - 1/2" NPT402-0009-137Steel1
