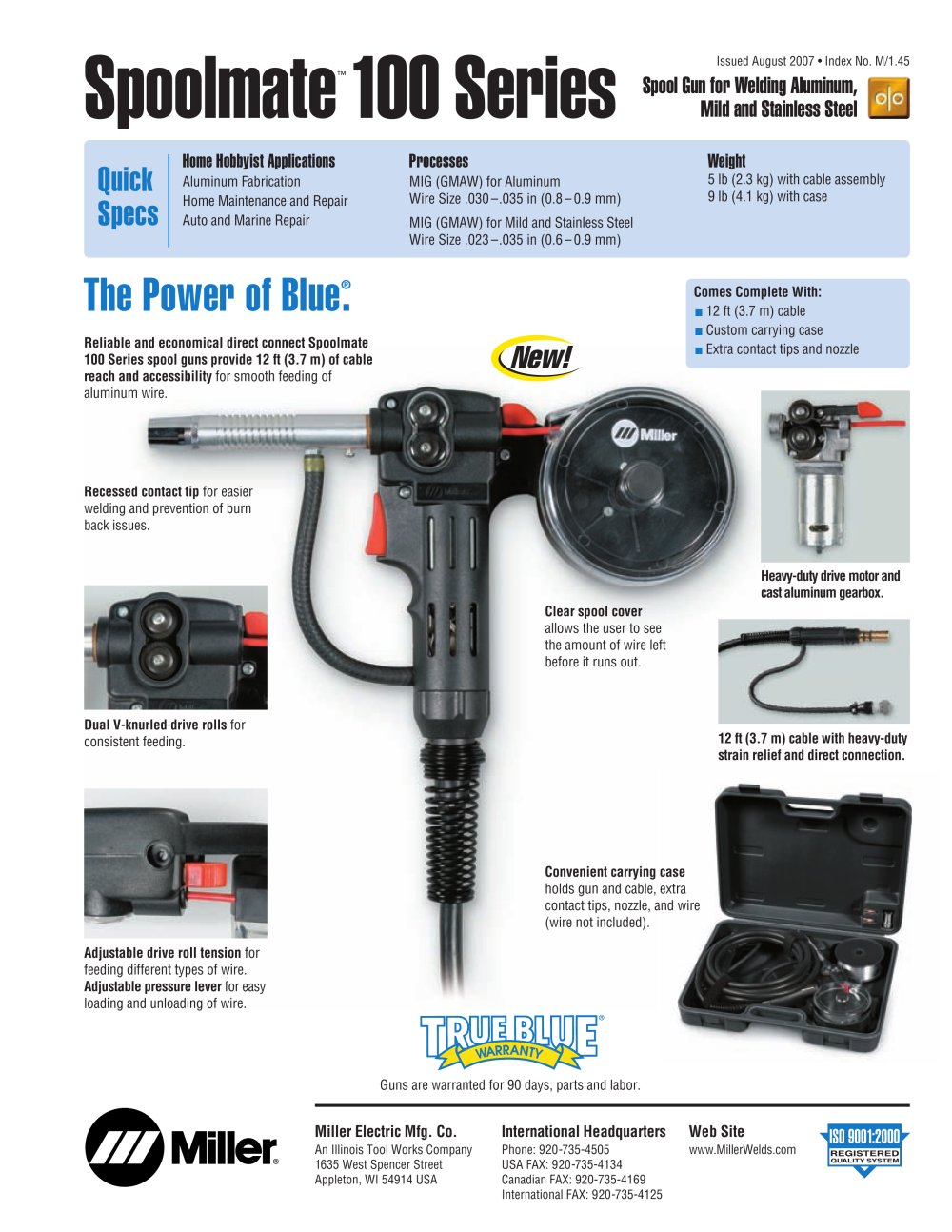

Spoolmate

Issued August 2007 • Index No. M/1.45 ™

100Series

Spool Gun for Welding Aluminum,Mild and Stainless Steel

Reliable and economical direct connect Spoolmate100 Series spool guns provide 12 ft (3.7 m) of cable reach and accessibility

QuickSpecs

Home Hobbyist Applications Processes Weight

Aluminum FabricationHome Maintenance and Repair Auto and Marine Repair MIG (GMAW) for AluminumWire Size .030–.035 in (0.8–0.9 mm) MIG (GMAW) for Mild and Stainless SteelWire Size .023–.035 in (0.6–0.9 mm) 5 lb (2.3 kg) with cable assembly 9 lb (4.1 kg) with case for smooth feeding ofaluminum wire.

The Power of Blue

®

.

Comes Complete With: 12 ft (3.7 m) cable Custom carrying case Extra contact tips and nozzle Recessed contact tip for easierwelding and prevention of burn back issues. Dual V-knurled drive rolls forconsistent feeding. Clear spool cover 12 ft (3.7 m) cable with heavy-dutystrain relief and direct connection. Heavy-duty drive motor and cast aluminum gearbox. allows the user to see the amount of wire left before it runs out. Adjustable drive roll tension Adjustable pressure lever for easyloading and unloading of wire. forfeeding different types of wire. Convenient carrying case holds gun and cable, extra contact tips, nozzle, and wire (wire not included). Guns are warranted for 90 days, parts and labor.
