Maximum Spool Size Capacity 4 in (102 mm) Dimensions H: 11-1/2 in (291 mm)W: 2-1/4 in (57 mm) L: 8 in (203 mm)

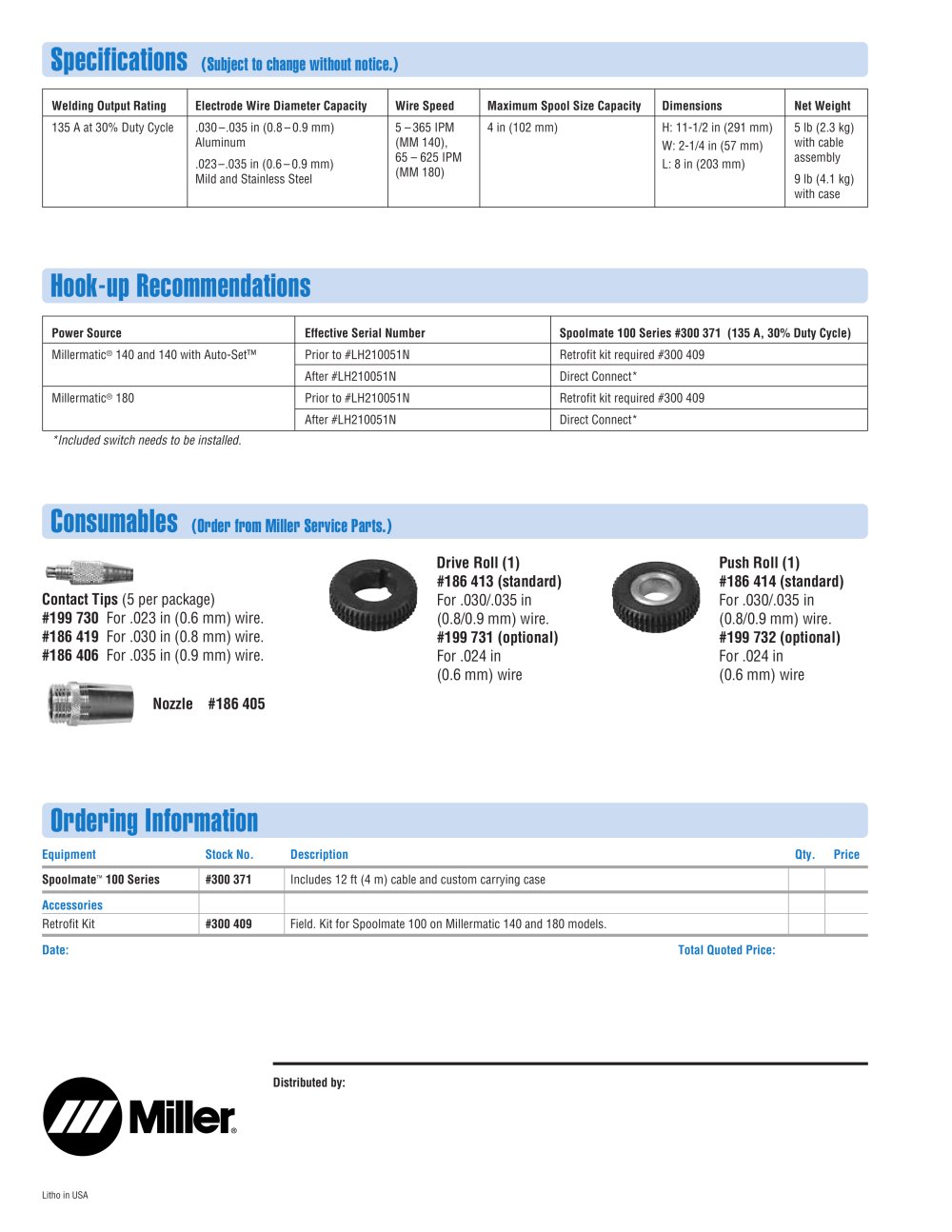

Spoolmate™ 100 Series - 5196 Specifications

Net Weight

(Subject to change without notice.)

5 lb (2.3 kg)with cable assembly9 lb (4.1 kg)with case Welding Output Rating 135 A at 30% Duty Cycle Electrode Wire Diameter Capacity Wire Speed Power Source .030–.035 in (0.8–0.9 mm)Aluminum.023–.035 in (0.6–0.9 mm) Mild and Stainless Steel 5 –365 IPM(MM 140), 65 –625 IPM (MM 180) Millermatic Spoolmate 100 Series #300 371 (135 A, 30% Duty Cycle)

Hook-up Recommendations

Retrofit kit required #300 409 Direct Connect* Retrofit kit required #300 409 Direct Connect*

For .024 in (0.6 mm) wire

Effective Serial Number Prior to #LH210051N After #LH210051N Prior to #LH210051N After #LH210051N
®

#199 732 (optional)

140 and 140 with Auto-Set™ Millermatic

Push Roll (1) #186 414 (standard) For .030/.035 in (0.8/0.9 mm) wire.

® 180 *Included switch needs to be installed.

Consumables

For .024 in (0.6 mm) wire

(Order from Miller Service Parts.)

#199 731 (optional) For .030/.035 in (0.8/0.9 mm) wire. Contact Tips (5 per package) #199 730 For .023 in (0.6 mm) wire. #186 419 For .030 in (0.8 mm) wire. #186 406 For .035 in (0.9 mm) wire. Nozzle #186 405Drive Roll (1) #186 413 (standard)

Ordering Information

EquipmentStock No.DescriptionQty.Price Spoolmate
™ 100 Series#300 371 Includes 12 ft (4 m) cable and custom carrying case Accessories Retrofit Kit #300 409 Field. Kit for Spoolmate 100 on Millermatic 140 and 180 models. Date:Total Quoted Price: Distributed by:
Litho in USA
