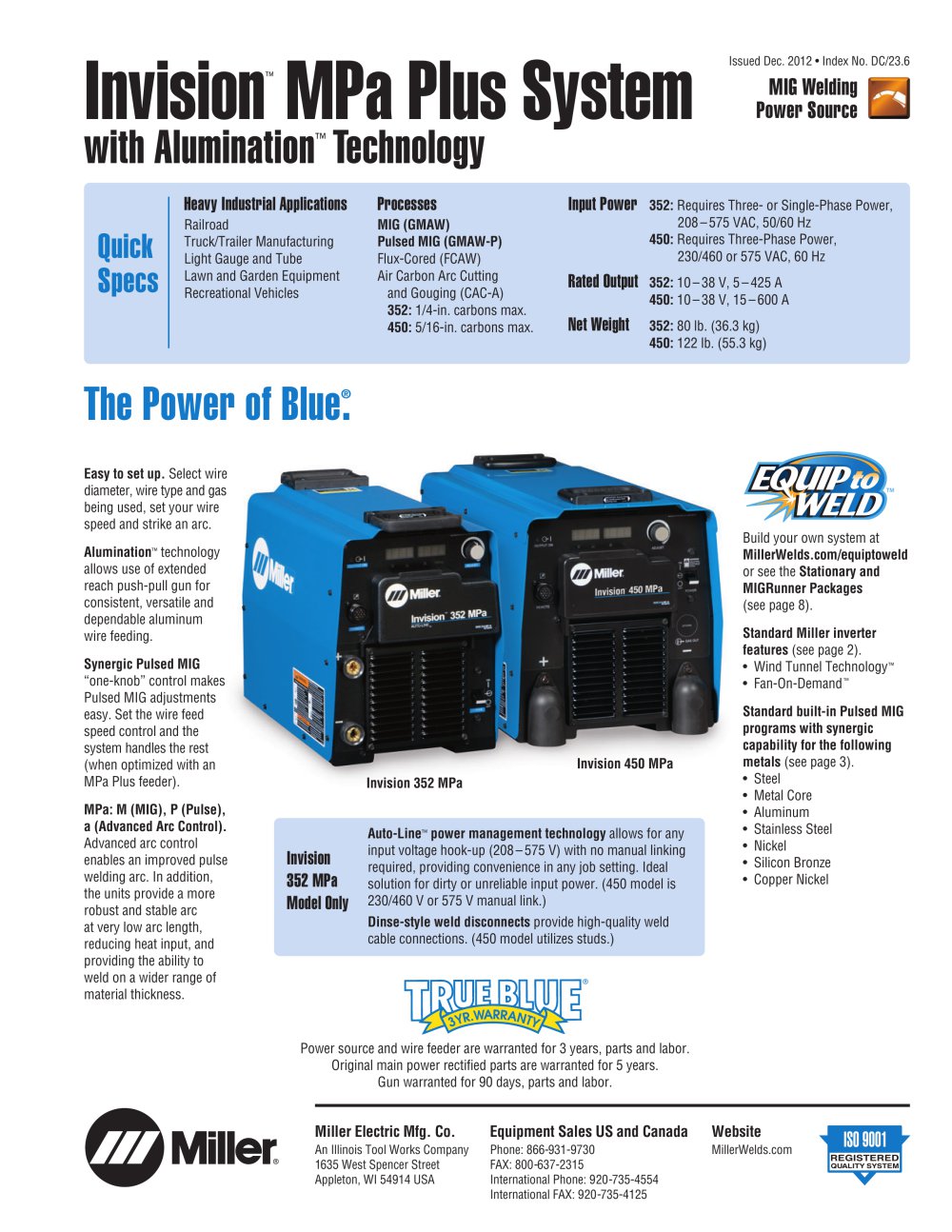

Processes Invision 352 MPa MIG (GMAW)/Pulsed MIG (GMAW-P) Flux Cored (FCAW) Air Carbon Arc Cutting and Gouging (CAC-A) (1/4 in carbons max.) 74 MPa Plus Feeders MIG (GMAW) Flux Cored (FCAW) Pulsed MIG (GMAW-P) Invision 352 MPa Input Power Requires 3- or 1-Phase Power, 50/60 Hz Rated Output 10 – 38 V, 5 – 425 A Weight Net: 80 lb (36.3 kg) Ship: 89.1 lb (40.4 kg) 74 MPa Plus Feeders Input Power 24 VAC, 10 A, 50/60 Hz Electrode Wire Dia. Capacity .023–5/64 in (0.6–2 mm) Wire Speed 50–780 IPM (1.3–19.8 m/min) Weight Net: 58 lb (26 kg) Heavy Industrial Applications Invision 352 MPa Railroad Truck/Trailer Manufacturing Light Gauge and Tube Lawn and Garden Equipment Recreational Vehicles 74 MPa Plus Feeders Heavy/Light Manufacturing Metal Fabrication Quick Specs Invision™ MPa Plus System with Alumination™ Technology MIG Welding Power Source Issued Dec. 2010 • Index No. DC/23.6 Profile Pulse™ achieves “stacked dime” weld bead appearance without back-stepping. SharpArc® technology fine tunes puddle fluidity in Pulsed MIG (GMAW-P) welding. The Power of Blue®. Synergic Pulsed MIG provides communication between the power source, feeder and gun. As wire speed increases/decreases, the pulse parameters also increase/decrease to match the right amount of power needed. Easy to set up. Select wire diameter, wire type and gas being used, set your wire speed and strike an arc. Power source and wire feeder are warranted for 3 years, parts and labor. Original main power rectified parts are warranted for 5 years. Gun warranted for 90 days, parts and labor. Miller Electric Mfg. Co. An Illinois Tool Works Company 1635 West Spencer Street Appleton, WI 54914 USA Web Site www.MillerWelds.com Equipment Sales US and Canada Phone: 866-931-9730 FAX: 800-637-2315 International Phone: 920-735-4554 International FAX: 920-735-4125 Weld Cross Section SharpArc 50 SharpArc 0 Push-Pull Aluminum Capability Alumination™ technology allows use of extended reach push-pull gun for consistent, versatile and dependable aluminum wire feeding. Build your own system at MillerWelds.com/equiptoweld or see the Stationary and MIGRunner Packages (pg 8). D-74 MPa Plus Dual Wire Feeder With this versatile feeder, you can set up one side for soft wires (aluminum) while maintaining the ability to push a variety of hard wires on the other, saving time and money. S-74 MPa Plus Single Wire Feeder is also available. See page 4 for features and page 8 in the ordering information for specific items included with feeders. XR-Aluma-Pro™ Plus Push-Pull Gun Available in 15-, 25- and 35-ft lengths for extended reach with trouble-free, reliable feeding. Gun is available in either air- or water-cooled versions. See page 5 for gun features. Invision MPa Plus Water-Cooled MIGRunner™ Package shown
